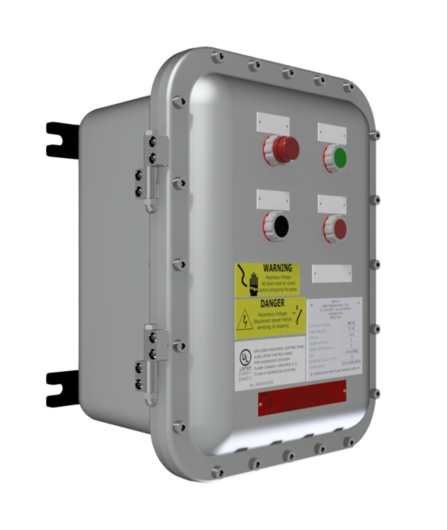

Our EDSM motor starter is for use in locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and areas which are subject to corrosion and weather.
US:Class I Div. 1 Group B, C, DClass I Div. 1 Group C, DClass I Div. 2 Group B, C, DClass I Div. 2 Group C, DEU:(II 2 G) Ex db IIA or IIB or IIB+H2 T6…T3( II 2 G) Ex db [ia/ib IIA or IIB or IIC Ga] IIA or IIB or IIB+H2 T6( II 2 D) Ex tb IIIC T85°C…T200°C( II 2 D) Ex tb [ia Da/ib] IIIC T85°C
-25 °C to +40 °C (standard)
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Enclosure material: marine grade copper free aluminium light alloy Surface treatment: External powder type painted RAL9006 Internal anti-condense painting RAL2004 (optional) Internal mounting plate : hot dip galvanized steel / aluminium |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Accessories | Drain and breather valves (optional) |
| Quantity of cable entries | see data sheet |
| Voltage | 240 V / 380-400 V / 415 V / 480 V / 600 V |
| short circuit Current | 10 kA at 480 V |
| Standard HP / kW range | 0,50 ÷ 150,00 HP / 0,37 ÷ 110,00 kW |
