ECH-PCI-DE2-F4B_img1ECH-PCI-DE2-F4B_img1

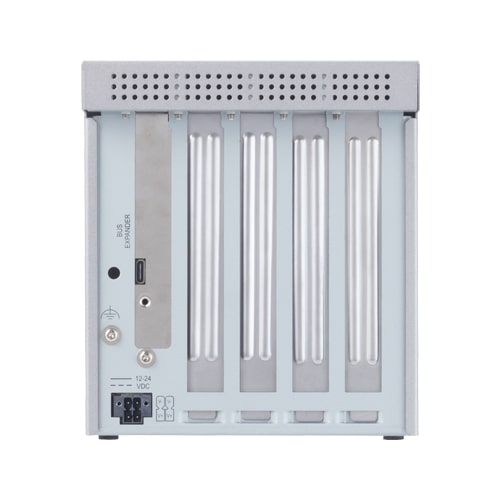

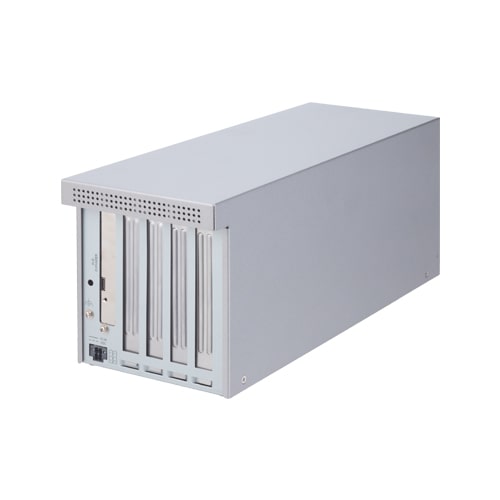

ECH-PCI-DE2-F4B

  • PCI bus (5V/32bit 33MHz) slots can be added to a PC
  • PCI bus cards can be connected
  • Power-ON/OFF control of the expansion chassis can be linked to that of a PC
  • The compact design of the cabinet with a built-in cooling fan enables space-saving system construction.
  • A wide range of power supplies (10.8 – 31.2VDC) supported

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: ECH-PCI-DE2-F4B Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

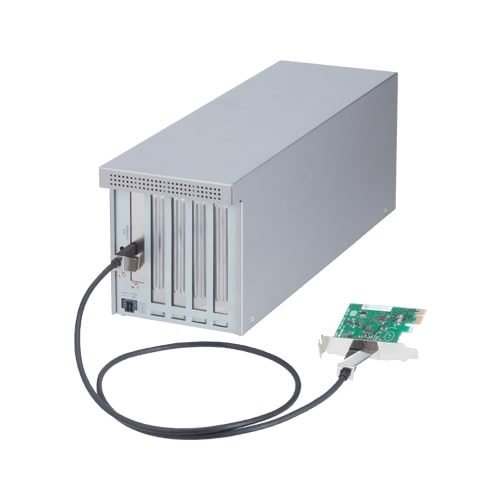

    This product is an expansion chassis that allows to add more PCI bus slots by connecting an optional expansion adapter (EAD-DE-LPE) to a computer.The power can be turned on/off in conjunction with the computer.The compact housing design with built-in cooling fan allows space-saving system construction.

    • PCI bus (5V/32bit 33MHz) slots can be added to a PC
      • PCI bus (5V/32bit 33MHz) can add 4 slots, an expansion adapter sold separately.
    • PCI bus cards can be connected
      • Can connect 4 short size [176.5(L) x 107(H) mm] and long size [313.8(L) x 107(H) mm] PCI bus cards.
    • Power-ON/OFF control of the expansion chassis can be linked to that of a PC
      • As a PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.
    • The compact design of the cabinet with a built-in cooling fan enables space-saving system construction.
      • Since the cabinet contains a built-in cooling fan, which achieves a compact design, can build a system even in a limited space next to a PC.
    • A wide range of power supplies (10.8 – 31.2VDC) supported
      • It supports a wide range power supply of 10.8 to 31.2VDC and can be used in various power environments. An optional AC adapter (PWA-160AWD2) is available.

    Specifications

    Specifications
    Bus Expansion Chassis
    Method PCI Express Cable (Type DE)
    Number of User Slots 4-slots
    Board Size Long Size
    Input Power 12 to 24VDC

    Ordering Informations

    Ordering Information
    Model Description Certification
    ECH-PCI-DE2-F4B PCI Express Cable Type PCI Bus Expansion Chassis (Long x 4)
    • CE marking
    • VCCI
    Options
    Bus adapter
    Item Item Name
    EAD-DE-LPE Expansion Adapter for PCI Express Slot
    Power Supply / AC Adapter
    Item Item Name
    PWA-160AWD2 Switching AC adapter(24VDC 6.6A)
