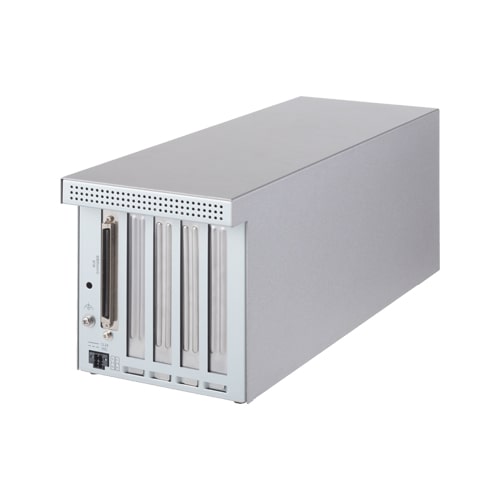

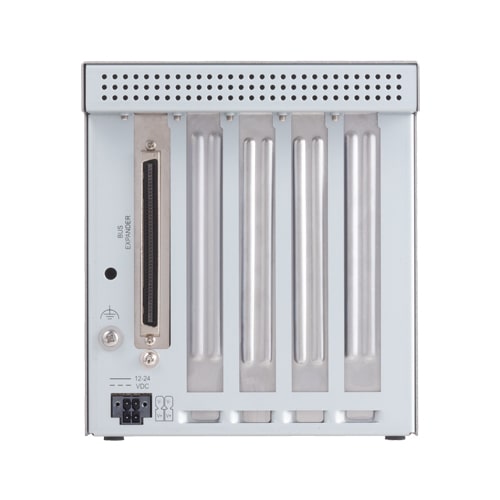

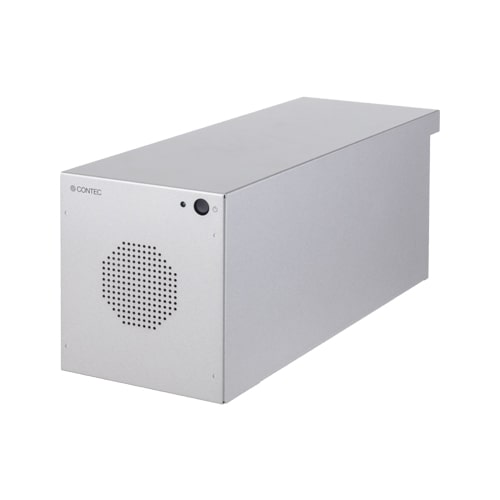

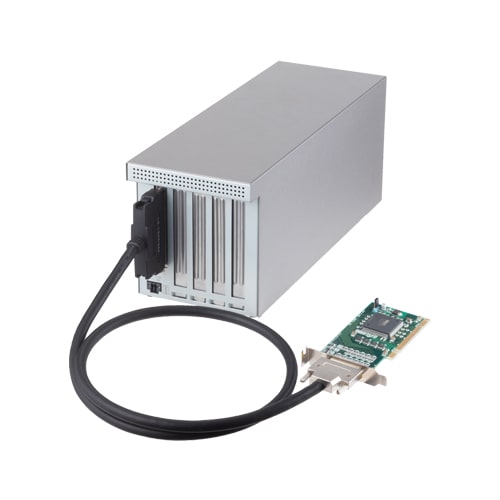

This product is an expansion chassis that adds a PCI bus expansion slot by connecting the PC main unit with an expansion adapter (sold separately).
| Method | Bus extension (Type BE) |
|---|---|
| Number of User Slots | 4-slots |
| Board Size | Long Size |
| Input Power | 12 to 24VDC |
| Model | Description | Certification |
|---|---|---|
| ECH-PCI-BE3-F4B | Bus extension type PCI bus expansion chassis (long x 4) |
|
| Item | Item Name |
|---|---|
| EAD(LPCI)BE | PCI Bus Expansion Adapter for Low Profile PCI PC-Slot |
| EAD(PCI)BE | PCI Bus Expansion Adapter for PCI Bus PC-Slot |
| EAD-BE-LPE | PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot |
| Item | Item Name |
|---|---|
| PWA-160AWD2 | Switching AC adapter(24VDC 6.6A) |
