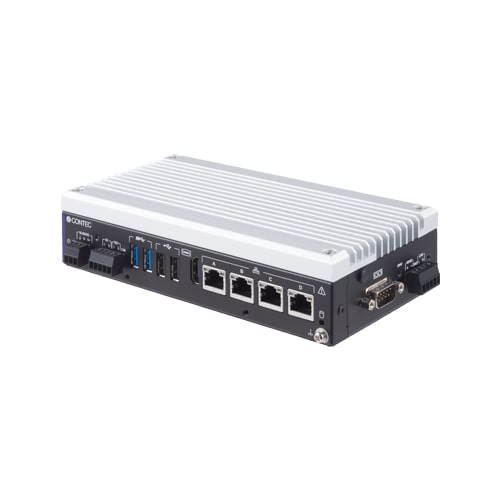

DX-U2200_img1DX-U2200_img1

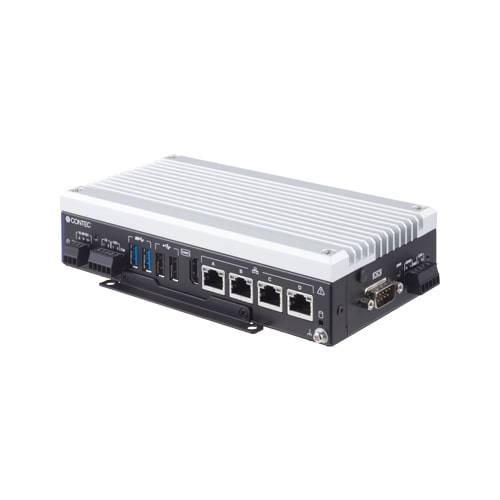

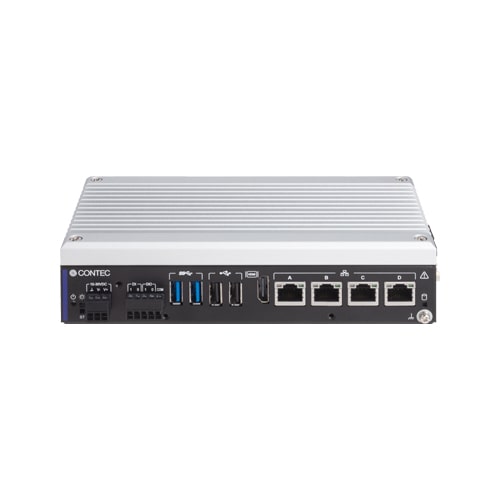

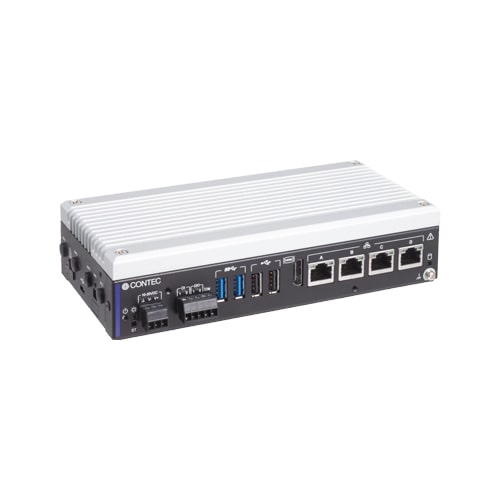

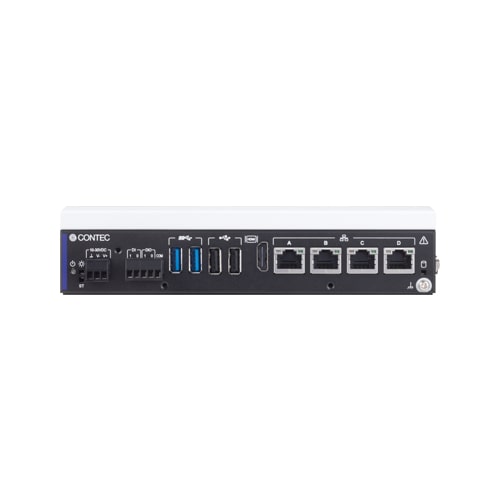

DX-U2200

  • Edge AI accelerator powered by NVIDIA Jetson Orin NX
  • Built-in NVMe storage
  • 4G LTE Cat.4 communication model can be selected
  • Four Gigabit LAN ports for alternating connections between different network layers
  • “Power failure protection system” features power-off without OS shutdown
  • -20 to 60°C ambient temperature

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DX-U2200 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a industrial edge AI computer with an emphasis on practicality equipped with an NVIDIA® Jetson Orin NX™ module, Equipped with four Gigabit LAN ports, an HDMI port, four USB ports, a general I/O port, serial port, CAN port, and an RTC (real-time calendar/clock), with flexible installation and environmental resistance, In addition, large-capacity NVMe storage is included as standard, it can be comfortably used for practical applications.The software environment is the same as the developer kit, with Ubuntu pre-installed, JetPack SDK available, and applications created with the developer kit can be executed. The LTE model is equipped with an LTE SIM-free communication module, enabling 4G LTE communication.

    Usage Examples

    Intrusion Detection

    Traffic Count

    Predictive Maintenance

    Visual Inspection System

    • Edge AI accelerator powered by NVIDIA Jetson Orin NX
      • Equipped with NVIDIA Jetson Orin NX, can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
    • Built-in NVMe storage
      • Large-capacity NVMe storage is installed as standard, so users who are concerned about storage capacity can use it with confidence.
    • 4G LTE Cat.4 communication model can be selected
      • Lineup of models equipped with an LTE SIM-free communication module that complies with the Radio Law in Japan, enabling 4G LTE Cat.4 communication.
        * The wireless communication function of this product can be used only in Japan. A separate SIM card contract is required.
    • Four Gigabit LAN ports for alternating connections between different network layers
      • Equipped with four Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
    • “Power failure protection system” features power-off without OS shutdown
      • Using the JetPack/L4T version provided by our company, it supports power failure protection function.It can be used by enabling the power-off protection function in BIOS and Linux settings.
    • -20 to 60°C ambient temperature
      • Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C*1.
        • *1with 0.7m/s airflow;　Derating may be necessary depending on the usage environment.

    Specifications

    Specifications
    Mechanical Design
    Mounting DIN Rail Mount; VESA 100 x 100; Wall Mount
    Software Support
    Supported OS Linux Ubuntu; SDK JetPack
    Core System
    CPU Generation (Development code) –
    Processor ARM Cortex-A78AE v8.2 2GHz (8core); ARM Cortex-A78AE v8.2 2GHz (6core)
    CPU socket –
    Memory up to 16GB
    RAS –
    GPU 1024 CUDA Core, 32 Tensor Core
    AI Performance 100 TOPS (INT8); 70 TOPS (INT8); –
    Security –
    Interface
    Video 1x HDMI
    LAN 4x 1000BASE-T/100BASE-TX/10BASE-T
    Wireless 4G LTE CAT4
    Audio –
    I/O 2x USB3.2 Gen2 (USB3.1); 2x USB2.0; 1x RS-232C; 1x RS-485; 1x CAN
    Memory card –
    Expansion Slot
    Expansion bus –
    Drive bay –
    Power
    Input voltage 10 to 30VDC
    Environment
    Operating temperature -20 to 60°C (-4 to 140°F) w/ airflow 0.7m/s
    Storage temperature -20 to 60°C (-4 to 140°F)
    Standards & Certifications CE; FCC Class A; TELEC; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    DX-U2200-3M0623 ARM Cortex-A78AE / 8GB RAM / 256GB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-3M0723 ARM Cortex-A78AE / 8GB RAM / 512GB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-3M0823 ARM Cortex-A78AE / 8GB RAM / 1TB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-4M0623 ARM Cortex-A78AE / 16GB RAM / 256GB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-4M0723 ARM Cortex-A78AE / 16GB RAM / 512GB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-4M0823 ARM Cortex-A78AE / 16GB RAM / 1TB SSD(TLC) / Power failure protection
    • CE marking
    • FCC compliant
    • VCCI
    DX-U2200-4G3M0623 ARM Cortex-A78AE / 8GB RAM / 256GB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    DX-U2200-4G3M0723 ARM Cortex-A78AE / 8GB RAM / 512GB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    DX-U2200-4G3M0823 ARM Cortex-A78AE / 8GB RAM / 1TB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    DX-U2200-4G4M0623 ARM Cortex-A78AE / 16GB RAM / 256GB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    DX-U2200-4G4M0723 ARM Cortex-A78AE / 16GB RAM / 512GB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    DX-U2200-4G4M0823 ARM Cortex-A78AE / 16GB RAM / 1TB SSD(TLC) / Power failure protection / 4G LTE CAT4
    • TELEC
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
    PWA-65AWD9 AC Adapter(19VDC 3.42A)
    Antenna
    Item Item Name
    CPS-ANT-R3-01 External 3G Antenna for CPS-MC341 series
    CPS-ANT-R5-01 External 4G LTE Antenna for CONPROSYS series (Japan only)
    Other Accessories
    Item Item Name

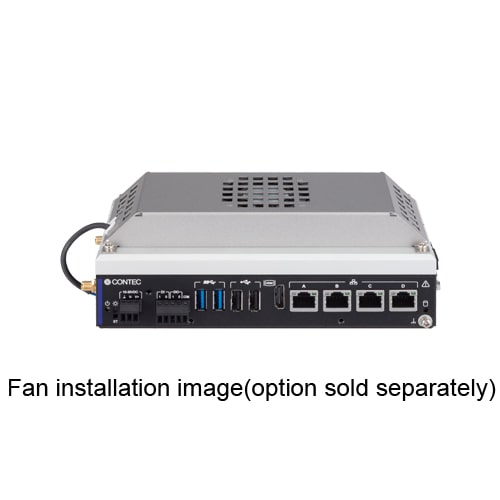

    DX-FAN-07 DX-U2000 series optional fan
