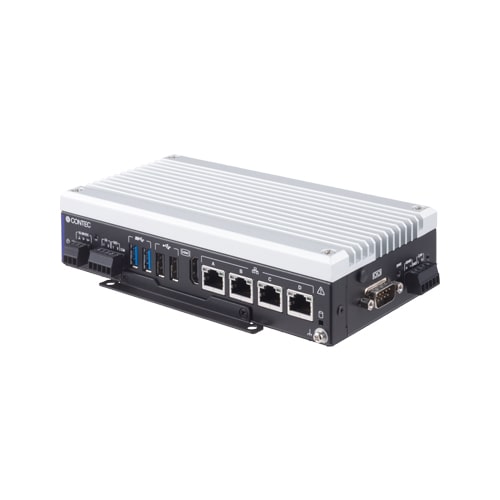

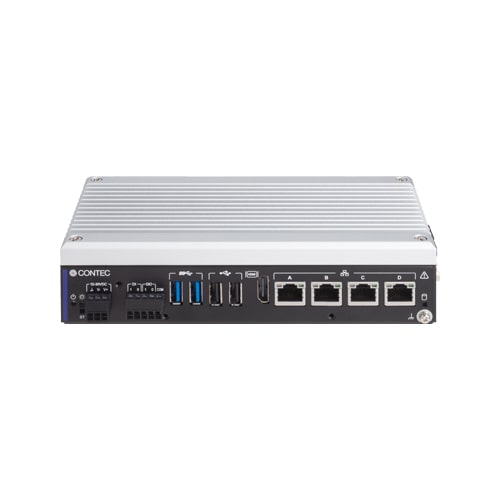

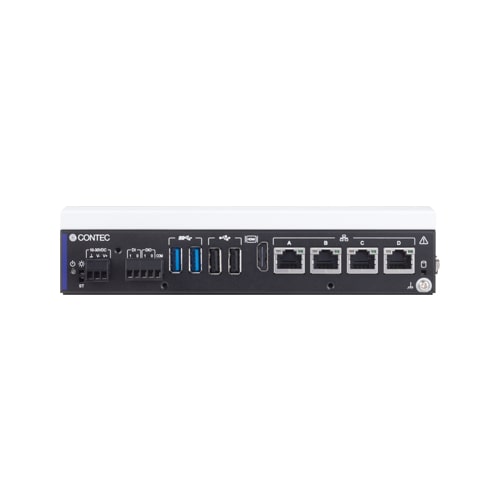

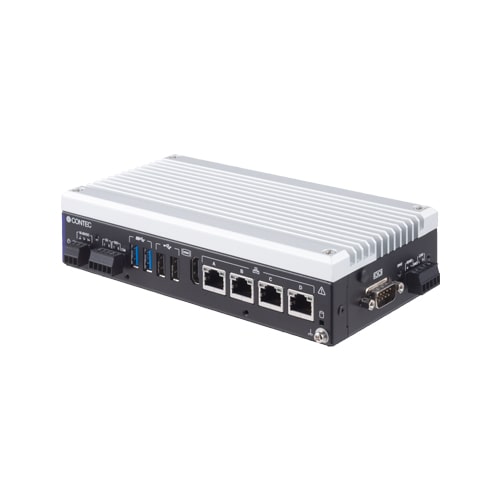

This product is a industrial edge AI computer with an emphasis on practicality equipped with an NVIDIA® Jetson Orin Nano™ module, Equipped with four Gigabit LAN ports, an HDMI port, four USB ports, a general I/O port, serial port, CAN port, and an RTC (real-time calendar/clock), with flexible installation and environmental resistance, In addition, large-capacity NVMe storage is included as standard, it can be comfortably used for practical applications.This product includes sheet metal (pre-attached) and connector caps as simple dust control measures to prevent dust and dirt from entering through the vents.The software environment is the same as the developer kit, with Ubuntu pre-installed, JetPack SDK available, and applications created with the developer kit can be executed. The LTE model is equipped with an LTE SIM-free communication module, enabling 4G LTE.
Intrusion Detection
Traffic Count
Predictive Maintenance
Visual Inspection System
| Mounting | DIN Rail Mount; VESA 100 x 100; Wall Mount |
|---|
| Supported OS | Linux Ubuntu; SDK JetPack |
|---|
| CPU Generation (Development code) | – |
|---|---|
| Processor | ARM Cortex-A78AE 1.5GHz (6core) |
| CPU socket | – |
| Memory | up to 8GB |
| RAS | – |
| GPU | 1024 CUDA Core, 32 Tensor Core; 512 CUDA Core, 16 Tensor Core |
| AI Performance | 40 TOPS (INT8); 20 TOPS (INT8); – |
| Security | – |
| Video | 1x HDMI |
|---|---|
| LAN | 4x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | 4G LTE CAT4 |
| Audio | – |
| I/O | 2x USB3.2 Gen2 (USB3.1); 2x USB2.0; 1x RS-232C; 1x RS-485; 1x CAN |
| Memory card | – |
| Expansion bus | – |
|---|---|
| Drive bay | – |
| Input voltage | 10 to 30VDC |
|---|
| Operating temperature | -20 to 60°C (-4 to 140°F) w/ airflow 0.7m/s |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; TELEC; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| DX-U2100-2M0623 | ARM Cortex-A78AE / 4GB RAM / 256GB SSD(TLC) / Power failure protection |
|
| DX-U2100-2M0723 | ARM Cortex-A78AE / 4GB RAM / 512GB SSD(TLC) / Power failure protection |
|
| DX-U2100-2M0823 | ARM Cortex-A78AE / 4GB RAM / 1TB SSD(TLC) / Power failure protection |
|
| DX-U2100-3M0623 | ARM Cortex-A78AE / 8GB RAM / 256GB SSD(TLC) / Power failure protection |
|
| DX-U2100-3M0723 | ARM Cortex-A78AE / 8GB RAM / 512GB SSD(TLC) / Power failure protection |
|
| DX-U2100-3M0823 | ARM Cortex-A78AE / 8GB RAM / 1TB SSD(TLC) / Power failure protection |
|
| DX-U2100-4G2M0623 | ARM Cortex-A78AE / 4GB RAM / 256GB SSD(TLC) / Power failure protection / 4G LTE CAT4 |
|
| DX-U2100-4G2M0723 | ARM Cortex-A78AE / 4GB RAM / 512GB SSD(TLC) / Power failure protection / 4G LTE CAT4 |
|
| DX-U2100-4G2M0823 | ARM Cortex-A78AE / 4GB RAM / 1TB SSD(TLC) / Power failure protection / 4G LTE CAT4 |
|
| DX-U2100-4G3M0623 | ARM Cortex-A78AE / 8GB RAM / 256GB SSD(TLC) / Power failure protection/ 4G LTE CAT4 |
|
| DX-U2100-4G3M0723 | ARM Cortex-A78AE / 8GB RAM / 512GB SSD(TLC) / Power failure protection / 4G LTE CAT4 |
|
| DX-U2100-4G3M0823 | ARM Cortex-A78AE / 8GB RAM / 1TB SSD(TLC) / Power failure protection / 4G LTE CAT4 |
|
| Item | Item Name |
|---|---|
| CPS-PWD-90AW24-01 | CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit |
| PWA-65AWD9 | AC Adapter(19VDC 3.42A) |
| Item | Item Name |
|---|---|
| CPS-ANT-R3-01 | External 3G Antenna for CPS-MC341 series |
| CPS-ANT-R5-01 | External 4G LTE Antenna for CONPROSYS series (Japan only) |
| Item | Item Name |
|---|---|

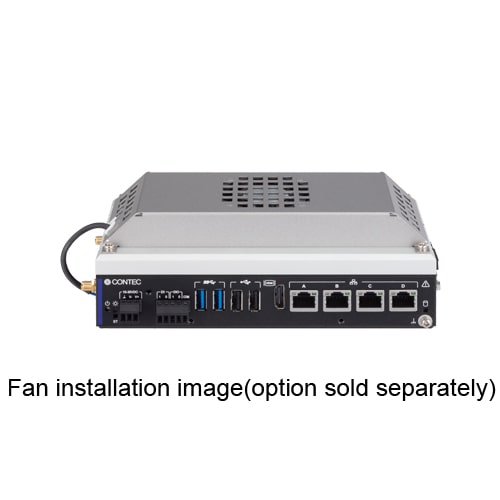

| DX-FAN-07 | DX-U2000 series optional fan |
