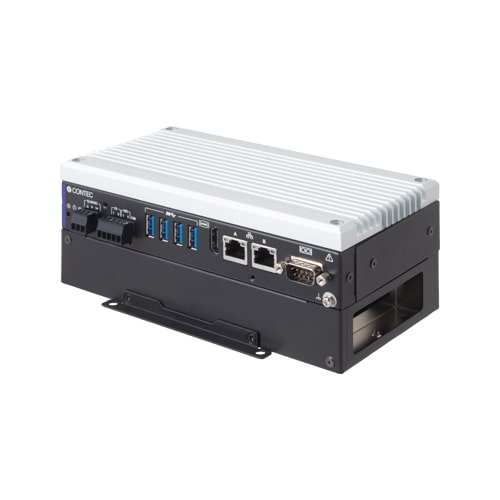

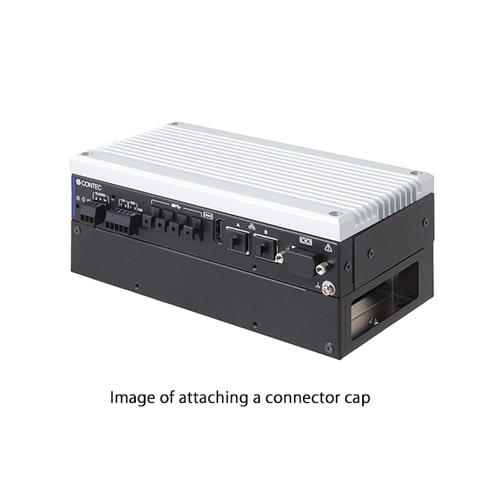

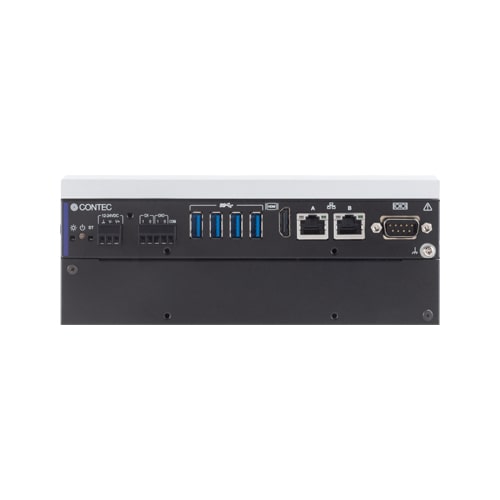

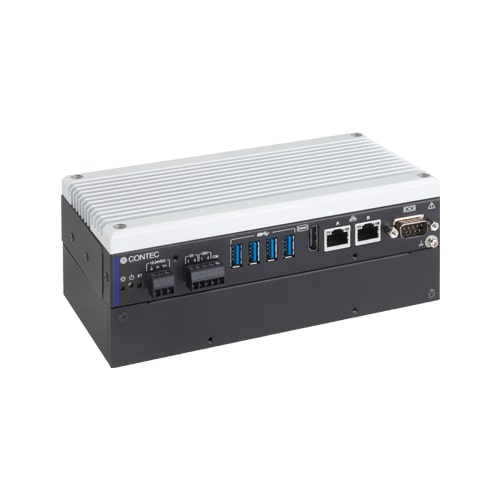

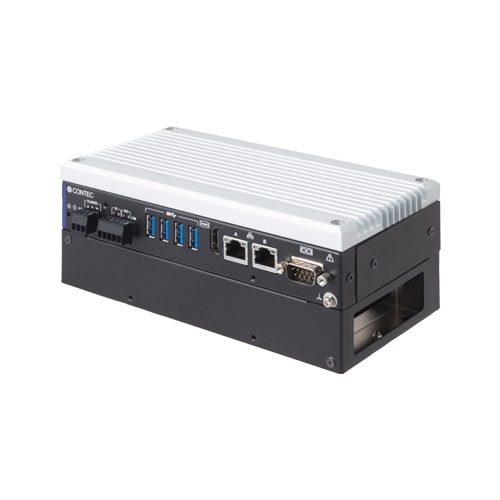

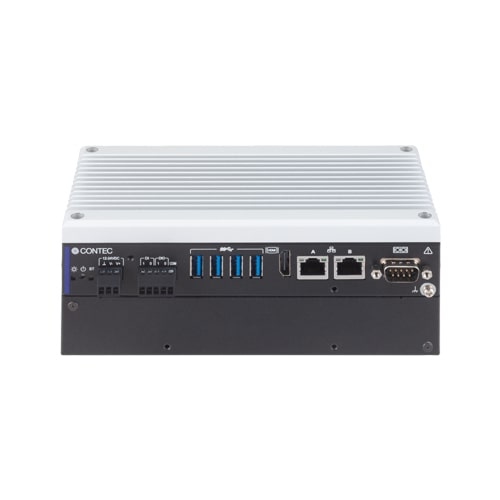

This product is an industrial computer equipped with the NVIDIA® Jetson Xavier NX™ module, suitable for AI inference processing. It is equipped with 2 Gigabit LANs, HDMI, 4 USBs, general-purpose I/O, serial ports, and RTC, realizing flexible installation and environmental resistance. In addition, it is equipped with large-capacity NVMe storage as standard, so it can be used safely for practical applications.As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. As a simple dustproof measure, this product comes with a metal plate (already attached to this product) and a connector cap to prevent dust and dirt from entering through the ventilation holes.As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. It is equipped with a low profile PCI Express slot, and functions can be expanded with our wide range of low profile PCI Express cards.
Intrusion Detection
Traffic Count
Predictive Maintenance
Visual Inspection System
| Mounting | DIN Rail Mount; VESA 100 x 100; Wall Mount |
|---|
| Supported OS | Linux Ubuntu; SDK JetPack |
|---|
| CPU Generation (Development code) | – |
|---|---|
| Processor | Carmel ARM v8.2 1.40GHz (6core) |
| CPU socket | – |
| Memory | 8GB |
| RAS | – |
| GPU | 384 CUDA Core (Volta), 48 Tensor Core |
| AI Performance | 6 TFLOPS (FP16); 21 TOPS (INT8) |
| Security | – |
| Video | 1x HDMI |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 4x USB3.2 Gen2; 1x USB2.0; 1x RS-232C/422A/485 |
| Memory card | 1x Micro SD slot |
| Expansion bus | 1x M.2 Key B (2230); 1x M.2 Key E (2230); 1x PCI Express(x1) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | -20 to 60°C(-4 to 140°F) (When mounting a PCIe board : -20 to 50°C(-4 to 122°F)) airflow 0.7m/s ; * Derating may occur |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| DX-U1220P1-3E0212 | NVIDIA® Jetson Xavier™ / Carmel ARM v8.2 1.40GHz (6 core) / 256GB MVMe / Power failure protection / Ubuntu / 1x PCIe(x1) / Simple Anti-dust |
|
| Item | Item Name |
|---|---|
| CPS-PWD-90AW24-01 | CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit |
| PWA-65AWD9 | AC Adapter(19VDC 3.42A) |
| Item | Item Name |
|---|---|
| BX-FAN-05 | External fan for forced air cooling |
