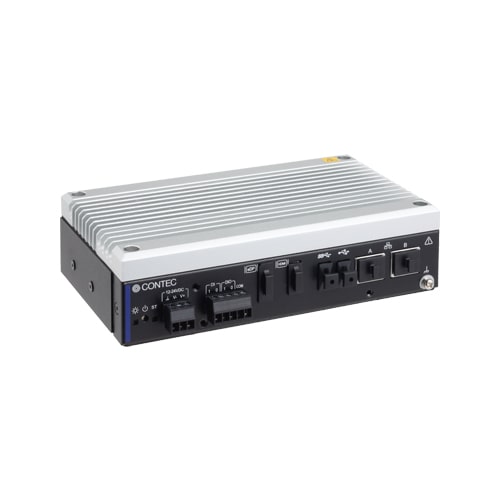

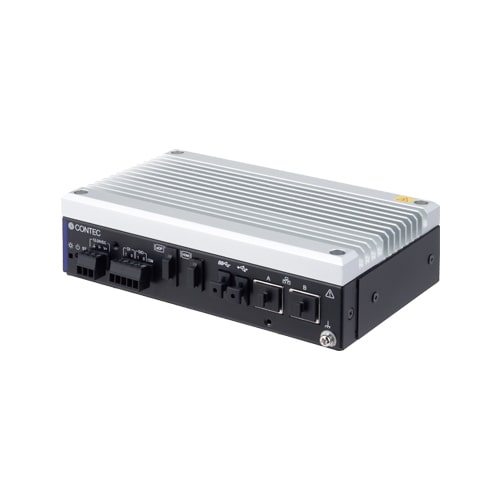

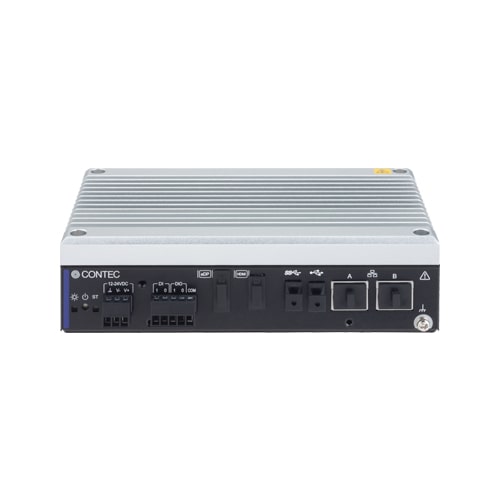

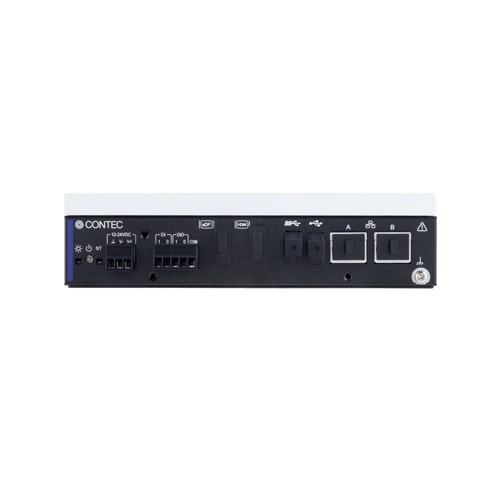

DX-U1210_img1DX-U1210_img1

DX-U1210

  • Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
  • Long-term supply and maintenance
  • Highly reliable and long-life components
  • Two Gigabit LAN ports for alternating connections between different network layers
  • Flexible installation
  • Simple dustproof model make it easily possible to install on site

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DX-U1210 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an industrial computer suitable for AI inference processing equipped with the NVIDIA® Jetson Xavier NX™ module. The product contains Gigabit LAN×2, HDMI, embedded DisplayPort(eDP), USB×2, general-purpose I/O, and RTC. It features installation flexibility and environmental resistance so that practical applications can be realized with confidence.Similar to the developer kit for the software environment, Ubuntu is pre-installed and JetPack SDK is available to run applications created with the developer kit.Simple dustproof model include sheet metal (pre-attached) and connector caps to prevent dust and dirt from entering the product vents.

    Usage Examples

    Intrusion Detection

    Traffic Count

    Predictive Maintenance

    Visual Inspection System

    • Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™
      • Equipped with NVIDIA® Jetson Xavier NX™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
    • Long-term supply and maintenance
      • Long-term product supply is provided, as well as repair and maintenance services. This can significantly reduce life cycle costs, including verification and modification man-hours that were needed with every model change.
    • Highly reliable and long-life components
      • The high-reliability long-life design utilizes accumulated knowledge about BOX-PC embedded computers. The product can be reliably used for high-availability systems.
    • Two Gigabit LAN ports for alternating connections between different network layers
      • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
    • Flexible installation

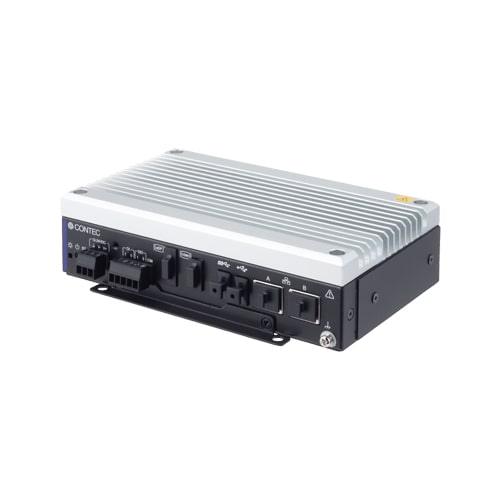

      • With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or on the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).
    • Simple dustproof model make it easily possible to install on site
      • Simple dustproof model include sheet metal (pre-attached) and connector caps to prevent dust and dirt from entering the product vents.

    Specifications

    Specifications
    Mechanical Design
    Mounting DIN Rail Mount; VESA 100 x 100; Wall Mount
    Software Support
    Supported OS Linux Ubuntu; SDK JetPack
    Core System
    CPU Generation (Development code) –
    Processor Carmel ARM v8.2 1.40GHz (6core)
    CPU socket –
    Memory 8GB
    RAS –
    GPU 384 CUDA Core (Volta), 48 Tensor Core
    AI Performance 6 TFLOPS (FP16); 21 TOPS (INT8)
    Security –
    Interface
    Video 1x DisplayPort (v1.4); 1x HDMI
    LAN 2x 1000BASE-T
    Wireless –
    Audio –
    I/O 1x USB3.2 Gen2 (USB3.1); 1x USB2.0
    Memory card 1x Micro SD slot
    Expansion Slot
    Expansion bus 1x M.2 Key B (2230); 1x M.2 Key E (2230)
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature -20 to 60°C(-4 to 140°F) (When mounting a PCIe board : -20 to 50°C(-4 to 122°F)) airflow 0.7m/s　 ; * Derating may occur
    Storage temperature -20 to 60°C (-4 to 140°F)
    Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    DX-U1210-3E0211 [Limited Stock] [End of Repair Service : February 12, 2031] With NVIDIA® Jetson Xavier NX™ / Carmel ARM v8.2 1.40GHz (6 core) / DC Power Supply / Simple Anti-dust Model
    • CE marking
    • FCC compliant
    • VCCI
    DX-U1210-3E0223 With NVIDIA® Jetson Xavier NX™ / Carmel ARM v8.2 1.40GHz (6 core) / DC Power Supply / Simple Anti-dust Model
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
    PWA-65AWD9 AC Adapter(19VDC 3.42A)
    Other Accessories
    Item Item Name
    BX-FAN-05 External fan for forced air cooling
