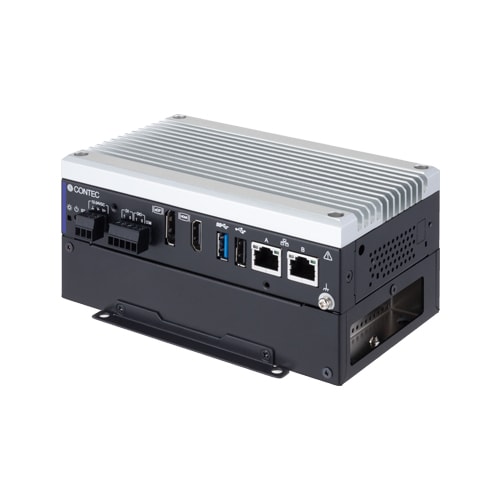

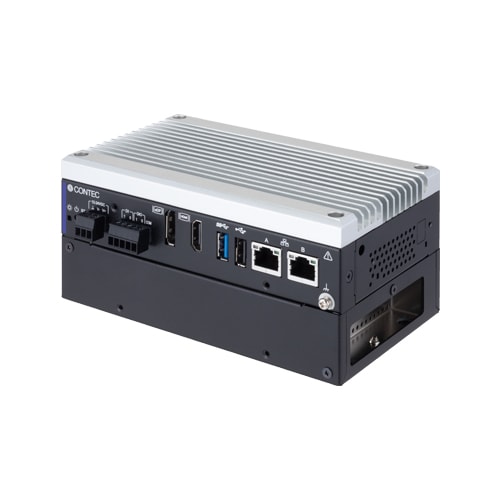

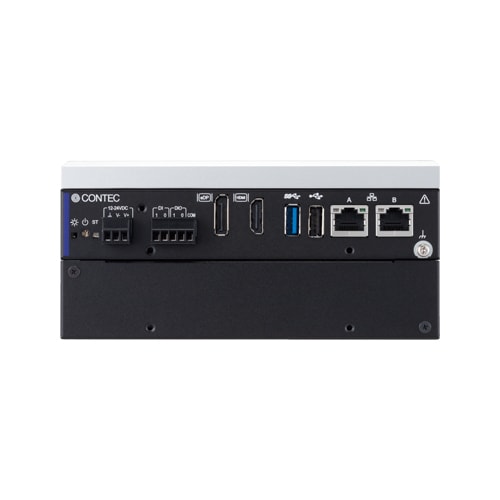

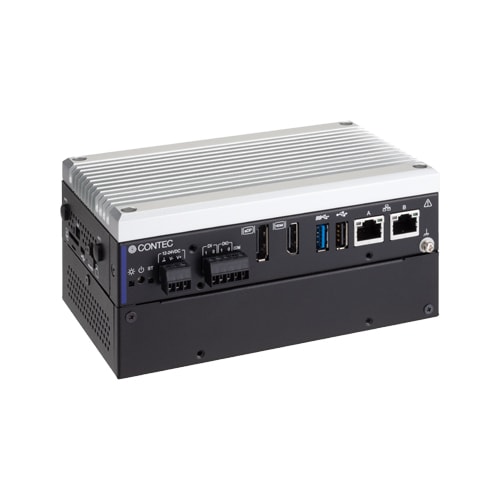

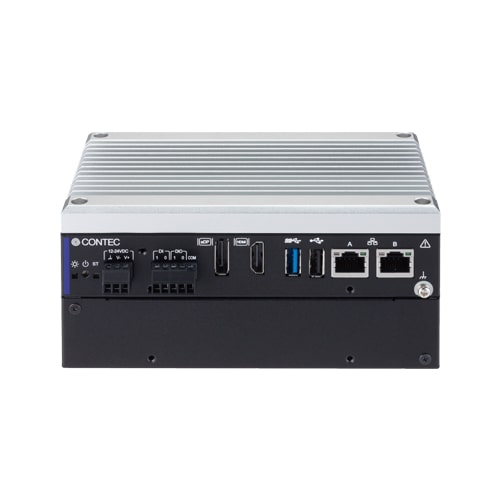

This product is a general-purpose industrial edge AI computer with an emphasis on practicality equipped with an NNVIDIA® Jetson Xavier NX™ module. Equipped with two Gigabit LAN ports, an HDMI port, two USB ports, a general I/O port, and an RTC (real-time calendar/clock), and with flexible installation and environmental resistance, it can be comfortably used for practical applications.As for the software environment, Ubuntu comes pre-installed just like the Jetson developer kit, and the NVIDIA JetPack™ SDK is available, so you can run applications created with the developer kit.This product also equipped with a PCI Express(x1) slot and enables expanded functionality by means of CONTEC’s rich variety of low-profile PCI Express cards, including analog input and serial communication cards.
Intrusion Detection
Traffic Count
Predictive Maintenance
Visual Inspection System
| Mounting | DIN Rail Mount; VESA 100 x 100; Wall Mount |
|---|
| Supported OS | Linux Ubuntu; SDK JetPack |
|---|
| CPU Generation (Development code) | – |
|---|---|
| Processor | Carmel ARM v8.2 1.40GHz (6core) |
| CPU socket | – |
| Memory | 8GB |
| RAS | – |
| GPU | 384 CUDA Core (Volta), 48 Tensor Core |
| AI Performance | 6 TFLOPS (FP16); 21 TOPS (INT8) |
| Security | – |
| Video | 1x DisplayPort (v1.4); 1x HDMI |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 1x USB3.2 Gen2 (USB3.1); 1x USB2.0 |
| Memory card | 1x Micro SD slot |
| Expansion bus | 1x M.2 Key B (2230); 1x M.2 Key E (2230); 1x PCI Express(x1) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | -20 to 60°C(-4 to 140°F) (When mounting a PCIe board : -20 to 50°C(-4 to 122°F)) airflow 0.7m/s ; * Derating may occur |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| DX-U1200P1-3E0211 [Limited Stock] | [End of Repair Service : February 12, 2031] With NVIDIA® Jetson Xavier™ / Carmel ARM v8.2 1.40GHz (6 core) / 1x PCIe(x1) / DC Power Supply |
|
| DX-U1200P1-3E0223 | With NVIDIA® Jetson Xavier™ / Carmel ARM v8.2 1.40GHz (6 core) / 1x PCIe(x1) / DC Power Supply |
|
| Item | Item Name |
|---|---|
| CPS-PWD-90AW24-01 | CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit |
| PWA-65AWD9 | AC Adapter(19VDC 3.42A) |
| Item | Item Name |
|---|---|
| BX-FAN-05 | External fan for forced air cooling |
