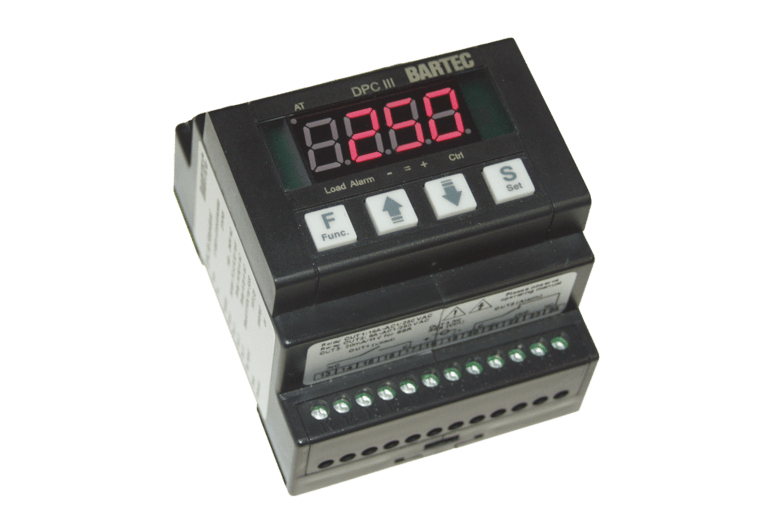

The DPC III is a series of temperature controllers designed for heating applications. It features a digital controller that monitors measuring circuits for sensor failures, interruptions, and other issues to ensure reliability. It can be used as an ON/OFF or PID controller and has a wide-range voltage input for universal use.
N/A
Service temperature range0 °C to +50 °C
| Controller | ON/OFF or PID |
|---|---|
| Sensor input Pt100, mV Standard signals Thermocouple J, K, S | |
| Electrical data | Voltage AC 100 to 240 V, AC/DC 24 V |
| Output 1: AC 250 VAC 16 A | |
| Output 2: AC 250VAC 8 A | |
| Output 3: DC 11V / 20 mA | |
| Mechanical data | Dimensions 70 mm x 84 mm x 60 mm |
| Installation snap-on housing for TH 35 DIN rail mounting |
