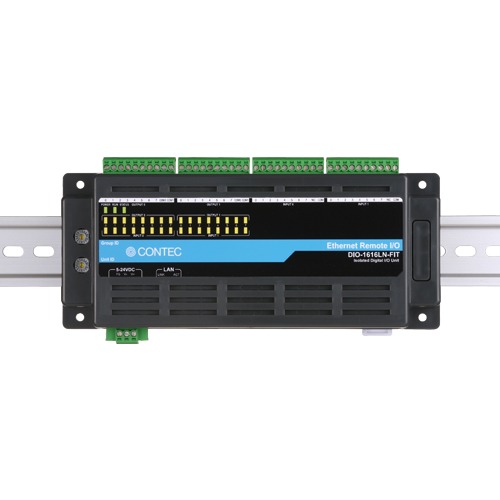

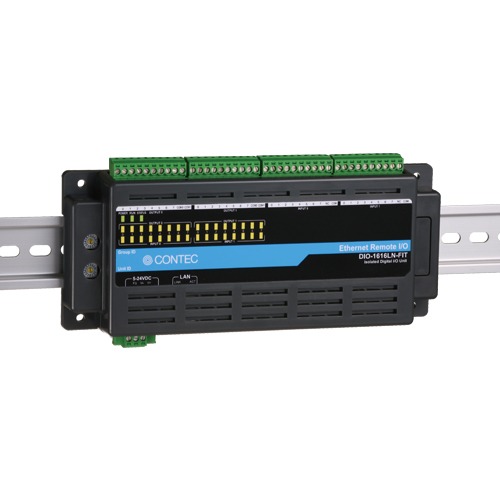

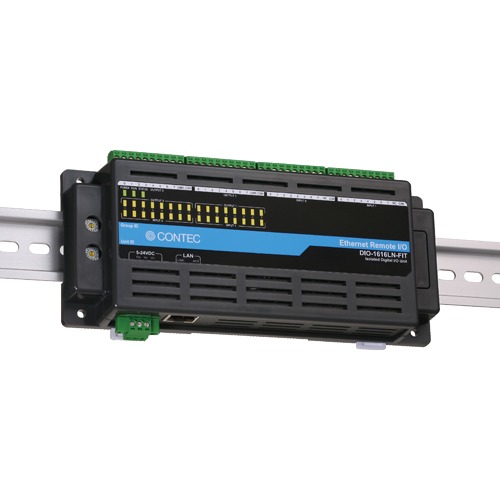

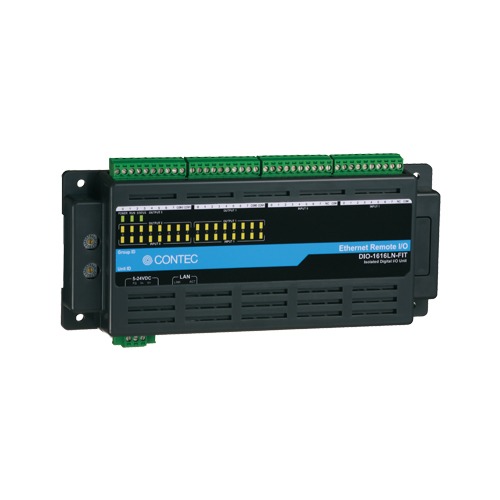

DIO-1616LN-FIT

  • Optocoupler isolated inputs (for use with current sink output / current source output), Optocoupler isolated open-collector outputs (current sink type)
  • Fail safe function
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • Compatible with a wide range of power supplies : 5 to 24VDC
  • Diverse installations such as screw fastening, magnet, DIN rail are possible
  • Windows compatible driver libraries are supported.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616LN-FIT Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an isolated digital input and output unit of F&eIT remote I/O system that realizes monitoring and control of devices scattered remotely, through PCs connected to Ethernet. Since existing network infrastructure can be used, the system can be built easily by just connecting with LAN cables. It is possible to connect external devices, Compact design not restricting installation location makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall. Windows driver library is supplied. It is possible to confirm the operations through the diagnosis monitor without any programming. This product has the 16ch of Optocoupler isolated inputs and 16ch of Optocoupler isolated open-collector outputs.

    • Optocoupler isolated inputs (for use with current sink output / current source output), Optocoupler isolated open-collector outputs (current sink type)
      • This product has the 16ch of Optocoupler isolated inputs (for use with current sink output / current source output) and 16ch of Optocoupler isolated open-collector outputs (current sink type). The output rating is max. 24VDC, 150mA or 48VDC, 50mA per ch. Common terminal provided per 8ch, capable of supporting a differentexternal power supply. You can check the digital input or output by using the LED indicator.
    • Fail safe function
      • When communication failure occurs, such as LAN cable disconnection, it is possible to notify the external devices by outputting a specific user defined signal pattern.
    • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
      • Compact design of 188.0(W) × 78.0(D) × 30.5(H) does not require special installation location.
    • Compatible with a wide range of power supplies : 5 to 24VDC
      • Compatible with a wide range of power supplies : 5 to 24VDC, and can be used in various environments.
    • Diverse installations such as screw fastening, magnet, DIN rail are possible
      • Installation on the floor / wall /ceiling is possible by screw fastening, magnet, rubber feet, etc. In addition, DIN rail mounting mechanism is equipped as standard with the product, making it easy to install the product within the panel or the device.
    • Windows compatible driver libraries are supported.
      • Using the supported driver library makes it possible to create applications of Window. As the driver library was designed taking into consideration compatibility with the API functions [API-PAC(W32)] of the measurement control and communication interface board, if you have experience in these applications, smooth programming is possible. In addition, a diagnostic program by which the operations of hardware can be checked is provided. In addition, using generic socket functions makes it possible to implement control under OS other than Windows, such as UNIX machine.

    Specifications

    Specifications
    Add-on Module
    Series F&eIT
    Bus Specification Ethernet
    Size N Type
    Used Connector –
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 1msec (max.)
    Response Time (Output) 1msec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) 12 to 48VDC
    Input Circuit Opto-isolated input (for both current sink and source output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616LN-FIT Digital I/O F&eIT I/O unit 16ch/16ch (isolated 12 – 48VDCisolated 12 – 24VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    POA200-20 F&eIT series AC adaptor (90 – 264VAC 0.3A / 5VDC 2A)
    POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
    POA201-10 F&eIT series AC adaptor (12V,1A)
    POA201-10-2 AC adaptor (12V,1A)
    POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
