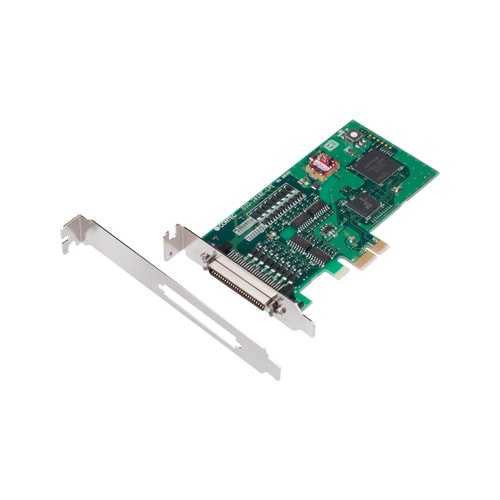

DIO-1616E-LPE_img1DIO-1616E-LPE_img1

DIO-1616E-LPE

  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • All input signals can be used as interrupt inputs
  • Equipped with digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • Windows/Linux compatible driver libraries
  • LabVIEW-support data acquisition library DAQfast for LabVIEW

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616E-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

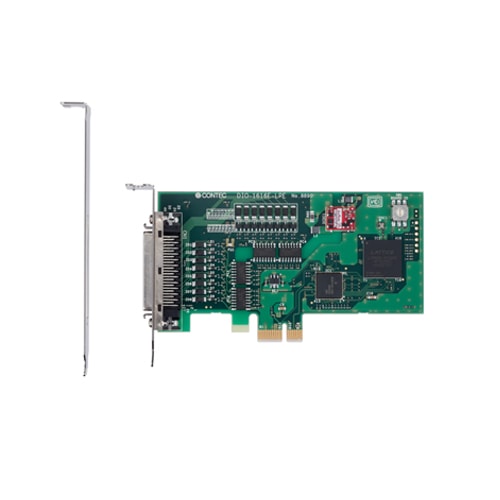

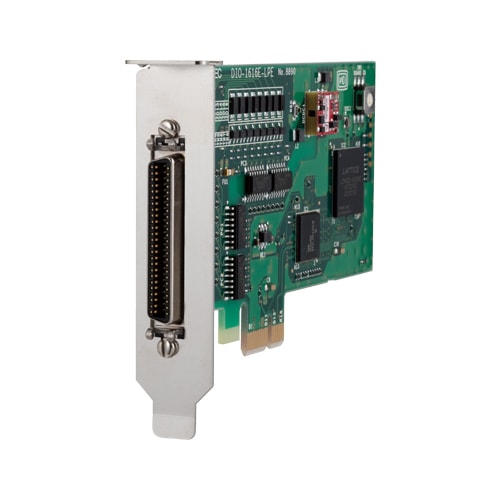

    This product is a PCI Express bus-compliant interface board that extends the digital signal I/O functions of a PC. This product has opto-coupler isolated input 16ch and opto-coupler isolated open-collector output 16ch and can input and output a wide range signals (5 – 36VDC). You can use all of the input signals as interrupt inputs. Equipped with the digital filter function and protection circuit (surge voltage protection and overcurrent protection). This product supports a Low Profile size slot and if replaced with the supplied bracket, supports a standard size slot, too.Windows/Linux driver is supported with this product. Using the dedicated library DAQfast makes it possible to create each application for LabVIEW.

    • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
      • This product has the opto-coupler isolated input 16ch (supporting current sink output) whose response speed is 60 μsec and opto-coupler isolated open-collector output 16ch (current sink type) whose response speed is 60 μsec. Supporting driver voltages of 5 – 36 VDC for I/O.
    • Opto-coupler bus isolation
      • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
    • All input signals can be used as interrupt inputs
      • You can use all of the input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
    • Equipped with digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
      • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
    • Windows/Linux compatible driver libraries
      • Using the driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • LabVIEW-support data acquisition library DAQfast for LabVIEW
      • DAQfast is a data collection library with Polymorphic VI to operate seamlessly for use in the LabVIEW by National Instruments.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Low Profile
    Used Connector Miniature ribbon 50-pin
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 60μsec (max.)
    Response Time (Output) 60μsec (max.)
    Operating Voltage (Input) 5 to 36VDC
    Operating Voltage (Output) 5 to 36VDC
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply 5VDC
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616E-LPE Digital I/O Low Profile PCI Express card 16ch/16ch (5VDC on-board power supply isolated 5 – 36VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
    PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
    PCE50/37PS-0.5P 50 pin miniature ribbon –> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    EPD-50A Screw Terminal (M3 x 50)
