DAQ-EC-CNT_img1DAQ-EC-CNT_img1

DAQ-EC-CNT

  • Supports Edgecross basic software
  • Collection Function
  • Read Function
  • Write Function
Request Quote


    Email Verification Code (required)



    SKU: DAQ-EC-CNT Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    CONTEC Data Collector for Counter is software that implements cooperation between the Edgecross basic software platform and the data of our counter measurement control and remote I/O devices.
    By using this Data Collector, the collection function, read function, and write function can be used for compatible counter devices.

    • Supports Edgecross basic software

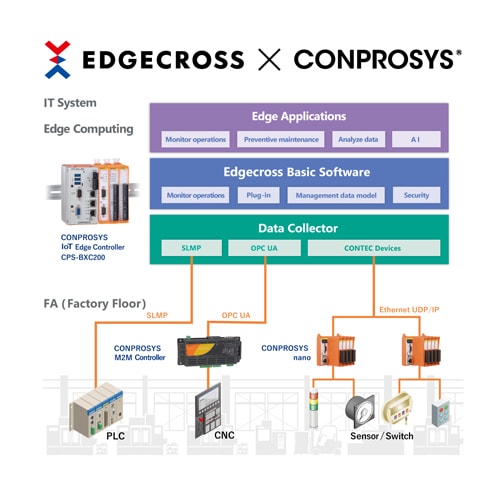

      • Edgecross is a standard and open platform that transcends the boundaries of companies and industries that promote the IoT of manufacturing sites. The middleware “CONTEC Data Collector for Counter” makes it possible to utilize our extensive measuring controllers and remote I/O devices on the Edgecross platform.
    • Collection Function
      • Input the count value from the specified channel of the device at the set time interval.
        Counter operation mode, Z-phase settings and digital filter can be selected.
        Counting will start automatically when collection starts.
    • Read Function
      • Input the count value from the specified channel of the device at the timing requested by the Edgecross basic software.
        Counter operation mode, Z-phase settings and digital filter can be selected.
    • Write Function
      • Start or stop counting

        Start or stop counting on the specified channel of the device at the timing requested by the Edgecross Basic Software.

        • *This is the same as the location parameter used in the read function.
        Count value preset

        Preset the count value to the specified channel of the device at the timing requested by the Edgecross basic software.

    Specifications

    Specifications
    Software Development Kit
    Type
    Supported Development Environment
    Supported Development Environment
    Supported OS
    Supported OS Windows 10 (64-bit)
    Supported Series
    Supported Series CONPROSYS; CONPROSYS nano
    Supported Controllers
    Model
    IoT Edge Controller
    CPS-BXC200
    Remote I/O Communication Coupler
    CPSN-MCB271-S1-041 CPSN-MCB271-1-041
    Supported Devices (Counter)
    Model
    CONPROSYS
    CPS-CNT-3202I
    CONPROSYS nano
    CPSN-CNT-3201I
    • *It can be used in combination with the IoT edge controller+ CONPROSYS I/O modules, or the remote I/O communication coupler+CONPROSYS nano I/O modules.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DAQ-EC-CNT CONTEC data collector for counter

      • *This library / middleware does not work alone. It is necessary to install an “Edgecross basic software for Windows” in advance. (Japan Only)
      • *Please download the installer of this library / middleware from here.
      Options
      Embedded Computer
      Item Item Name
      CPS-BXC200 CONPROSYS IoT Edge Controller BXC200 – DIN Rail Mountable/ Trellix Security / Atom x7-E3950 (Apollo Lake SoC) / 3x GbE / CPS Bus / DC Power Supply
