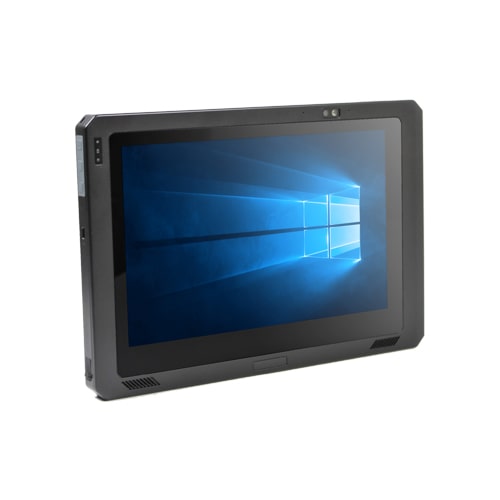

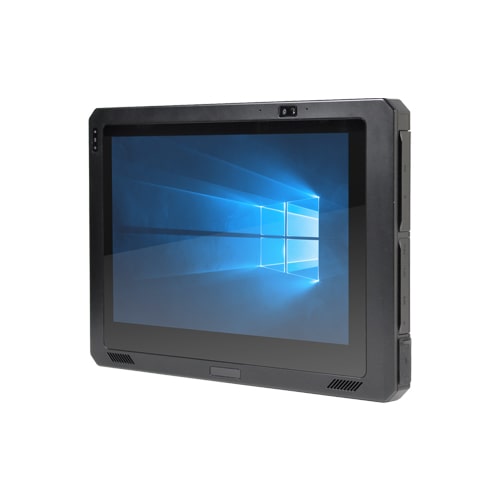

This product is a tablet computer equipped with a 10.1-inch size (WXGA 1280×800) PCAP touch screen. In addition to a smart card reader that can read IC cards, it also comes standard with the NFC standard. There is an RJ-45 interface on the tablet body. , 2 x USB3.0 and Micro HDMI interfaces. By using the accessory docking station, 1 x RS-232, 2 x USB 2.0 and 1 x VGA can be used. Also meets MIL standards. It is a robust tablet that can be used for multiple purposes.
| Mounting | VESA 100 x 100; VESA 75 x 75; Tablet; Desktop |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | Apollo Lake |
|---|---|
| Processor | Pentium N4200 |
| CPU socket | – |
| Memory | 8GB |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| LCD size | 10.1-inch |
|---|---|
| LCD resolution | 1280 x 800 (WXGA) |
| Touch panel resolution | – |
| Detection method | Projected capacitive touch (PCAP) |
| Video | 1x Micro HDMI |
|---|---|
| LAN | 1x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | Wireless LAN IEEE802.11ac/a/b/g/n; Bluetooth 4.2 |
| Audio | 1x Mic-in; 1x Headphone / microphone combo; 2x 2W Stereo Speaker |
| I/O | 2x USB3.0 |
| Memory card | – |
| Expansion bus | 1x Docking connector (19-pin) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC; 100 to 240VAC (AC adapter) |
|---|
| Operating temperature | 0 to 40°C (32 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | BSMI; CE; FCC Class B; RCM; TELEC; VCCI Class B |
| Model | Description | Certification |
|---|---|---|
| CT-RU101PC-W8100 | 10.1″ WXGA Multi touch panel / Pentium N4200 / 8GB RAM / 128GB SSD(TLC) / Wireless LAN, Bluetooth / NFC / Win10 IoT Ent.2019 |
|
| Item | Item Name |
|---|---|
| CT-OPT-COVER01 | Protective cover & Hand strap kit |

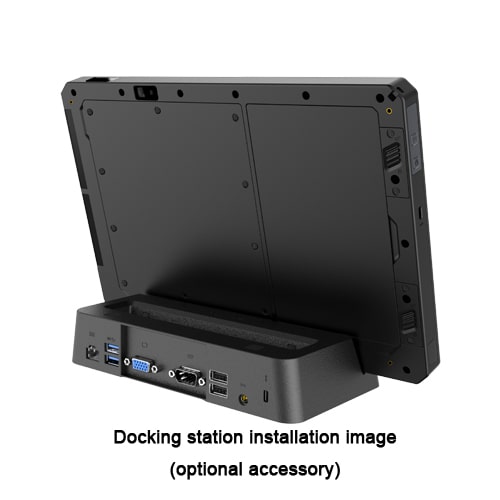

| CT-OPT-DOCK01 | Docking station |
| CT-OPT-VESA01 | VESA mount |
