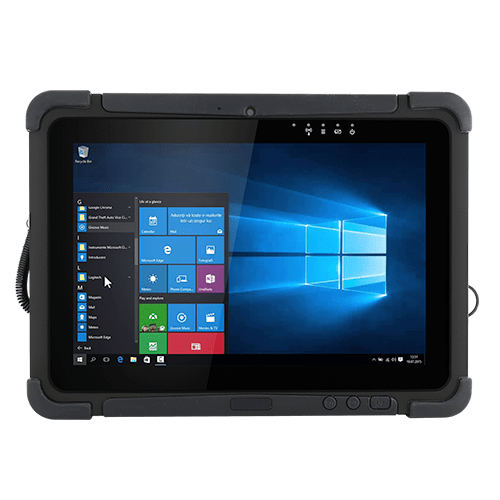

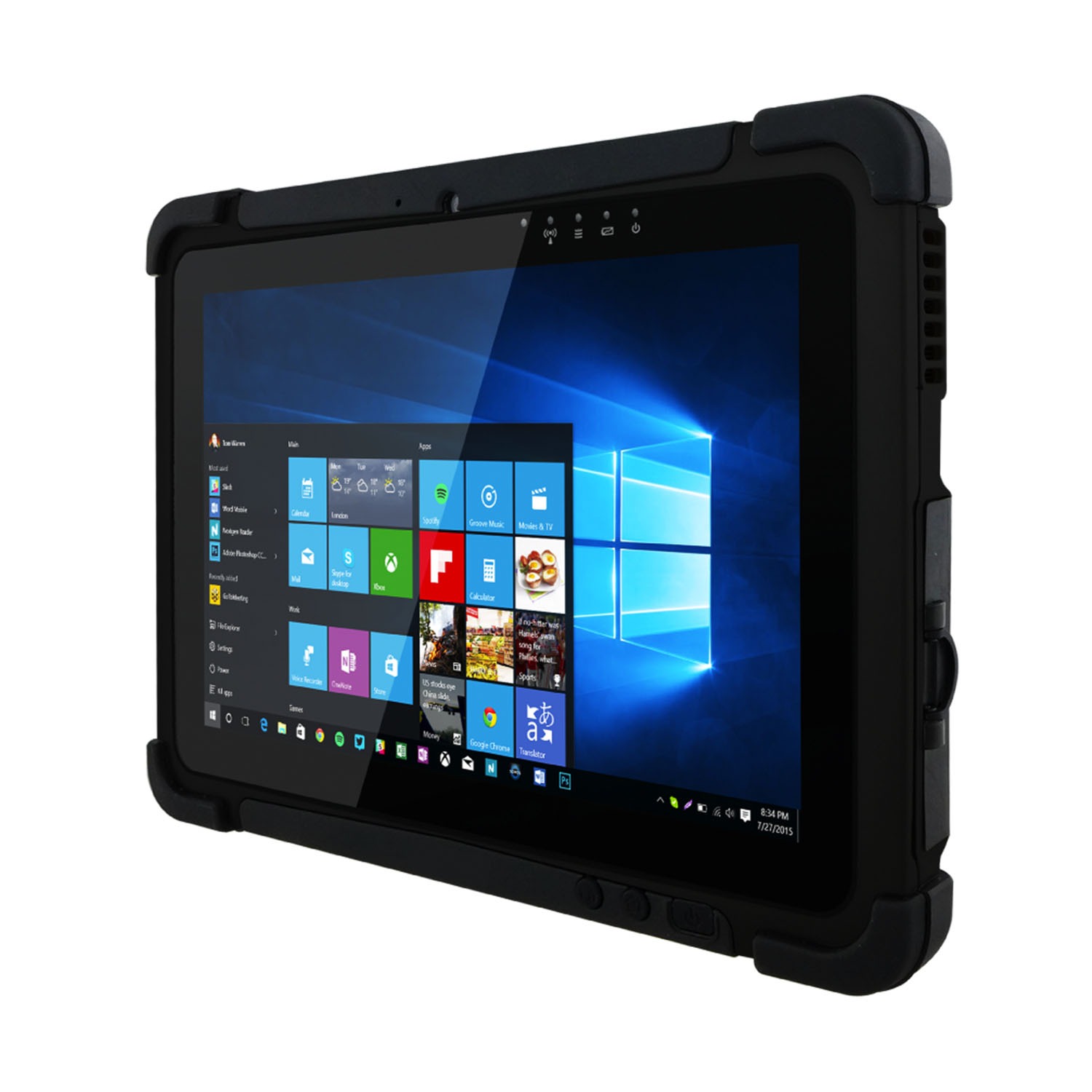

CT-RU101PB is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel’s core i5-7200U Kaby lake processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1920 x 1200 pixel resolution. Weighing at just 2.75 pounds, the CT-RU101PB delivers lightweight mobility in a rugged tablet.
| Mounting | – |
|---|
| Supported OS | Windows 10 IoT Enterprise LTSB 2016 64-bit; Linux |
|---|
| CPU Generation (Development code) | |
|---|---|
| Processor | Celeron N2930 |
| CPU socket | – |
| Memory | up to 8GB |
| RAS | – |
| GPU | |
| AI Performance | |
| Security | TCG TPM 1.2 |
| LCD size | 10.1-inch |
|---|---|
| LCD resolution | 1920 x 1200 (WUXGA) |
| Touch panel resolution | – |
| Detection method | Projected capacitive touch (PCAP) |
| Video | – |
|---|---|
| LAN | – |
| Wireless | Wireless LAN IEEE802.11a/b/g/n; Bluetooth 4.0 |
| Audio | 1x Audio combo connector (Mic in or Line Out) |
| I/O | 1x USB3.2 Gen1 (USB3.0) |
| Memory card | – |
| Expansion bus | 1x Docking connector (19-pin) |
|---|---|
| Drive bay | – |
| Input voltage | 100 to 240VAC (AC adapter) |
|---|
| Operating temperature | -20 to 50°C (-4 to 122°F) |
|---|---|
| Storage temperature | -30 to 70°C (-22 to 158°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| CT-RU101PB-W4100 | 10.1″ Rugged Tablet w/Windows 10 IoT, 128 GB SSD, 4GB RAM |
– |
| CT-RU101PB-W4200 | 10.1” Rugged Tablet w/Windows 10 IoT, 256 GB SSD, 4GB RAM |
– |
| CT-RU101PB-W410L | 10.1” Rugged Tablet w/Windows 10 IoT, 128 GB SSD, 4GB RAM, 4G LTE |
– |
| CT-RU101PB-W420L | 10.1” Rugged Tablet w/Windows 10 IoT, 256 GB SSD, 4GB RAM, 4G LTE |
– |
| CT-RU101PB-X4XXX | Additional configuration options (Part numbers defined by option selection) |
– |
