The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | RS-485 (Modbus-RTU) |
| Size | – |
| Used Connector | – |
| Input Channels | 16-ch (possible to allocate counter) |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | 10 to 50VDC |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for Dry contact) |
| Output Circuit | – |
| Built-in Power Supply | – |
| Supported OS | – |
|---|
| Model | Description | Certification |
|---|---|---|

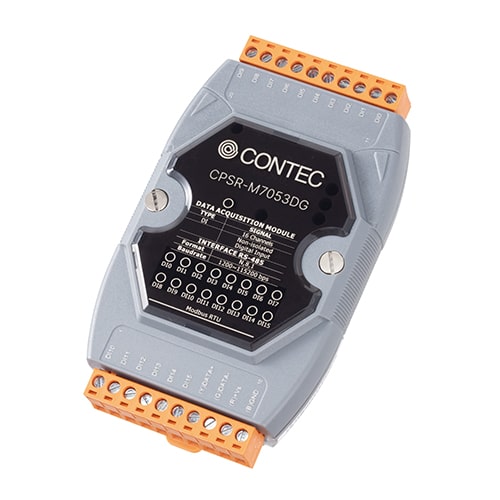

| CPSR-M7053DG | 16ch Digital Input (Counter) |
|
