The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | Ethernet (Modbus-TCP) |
| Size | – |
| Used Connector | – |
| Input Channels | Differential 8-ch |
|---|---|
| Input Range | ±10V; ±5V; ±1V; ±0.5V (±500mV); ±0.15V (±150mV); ±20mA; 0 to 20mA; 4 to 20mA |
| ADC Resolution | 16-bit |
| Sampling Rate | 20msec (50Hz); 100msec (10Hz) |
| Input Buffer Memory | – |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
| Output Buffer Memory | – |
| Input Channels | – |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 0 to 50VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
| Number of Channels | – |
|---|---|
| Counting System | – |
| Response speed | – |
| Supported OS | – |
|---|
| Model | Description | Certification |
|---|---|---|

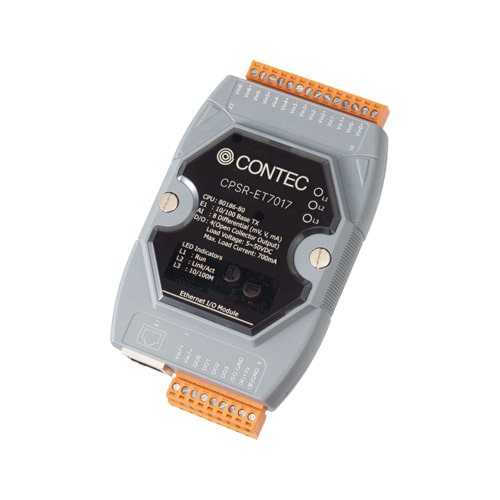

| CPSR-ET7017 | 8ch 16bit Analog Input / 4ch Digital Output |
|
| Item | Item Name |
|---|---|
| DAQ-LIBMB-LNX | DAQfast Modbus Communication Library for Linux |
| DAQ-LIBMB-WIN | DAQfast Modbus Communication Library for Windows |
