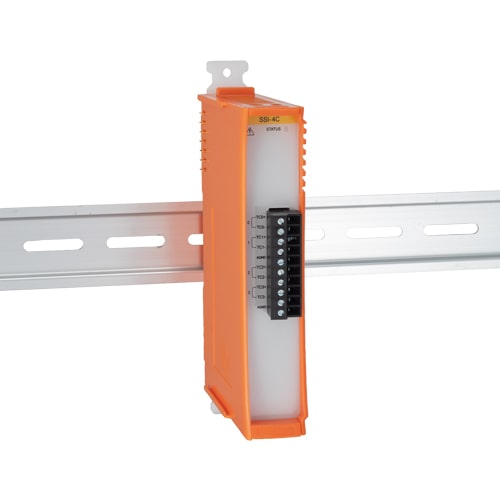

CPS-SSI-4C_img1CPS-SSI-4C_img1

CPS-SSI-4C

  • Compatible with various types of thermocouple inputs
  • Cold junction compensation function within
  • Adaptable to a wide range of temperature between -20 to 60°C (-4°F to 140°F)
  • Installation easy with two pieces of terminal support and DIN rail
  • Equipped with the LED for an operation check
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-SSI-4C Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds a thermocouple interface to the CPU unit of the CONPROSYS series. Four channels of differential inputs are provided for one module.

    • Compatible with various types of thermocouple inputs
      • This product is compatible with a wide range of thermocouple input types such as J(IEC60584-1), K(IEC60584-1), E(IEC60584-1), N(IEC60584-1), R(IEC60584-1), S(IEC60584-1), and T(IEC60584-1).
    • Cold junction compensation function within
      • As cold junction compensation is integrated in the product, there is no need to install a temperature sensor for cold junction compensation externally, and temperature can be measured simply by connecting a thermocouple.
    • Adaptable to a wide range of temperature between -20 to 60°C (-4°F to 140°F)
      • The product is capable of operating in the temperature between -20 to 60°C (-4°F to 140°F). It can be installed in the various environments.
    • Installation easy with two pieces of terminal support and DIN rail
      • You can install and remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.
    • Equipped with the LED for an operation check
      • The product has LED for an operation check, which helps you visually confirm the communication status of each interface.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
    Sensor Input
    Type Thermocouple
    Input Channels Differential 4-ch
    Compatible Sensor Type E; Type J; Type K; Type N; Type R; Type S; Type T
    ADC Resolution 24-bit
    Sampling Rate 251msec/ch
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-SSI-4C Thermocouple Module CONPROSYS I/O Module / 4ch
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
