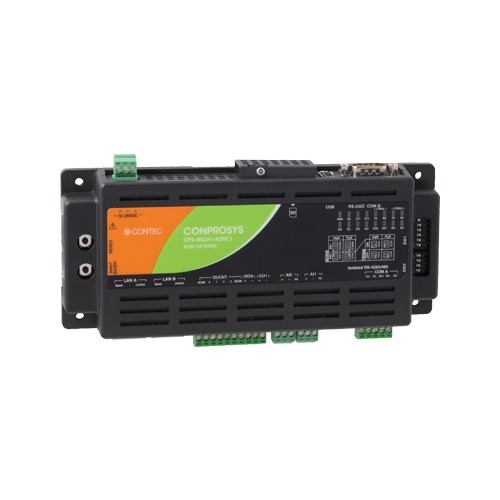

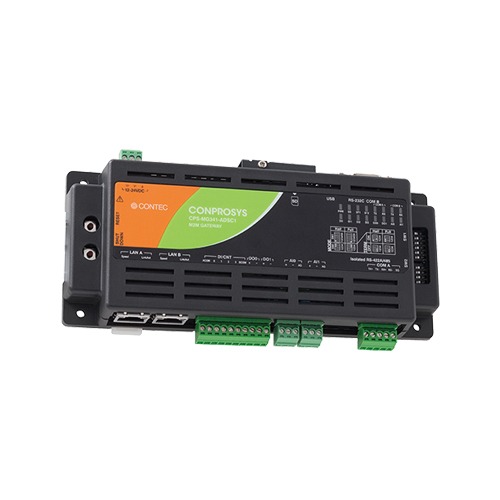

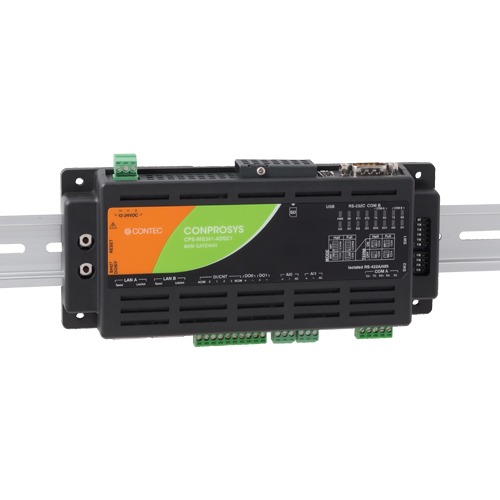

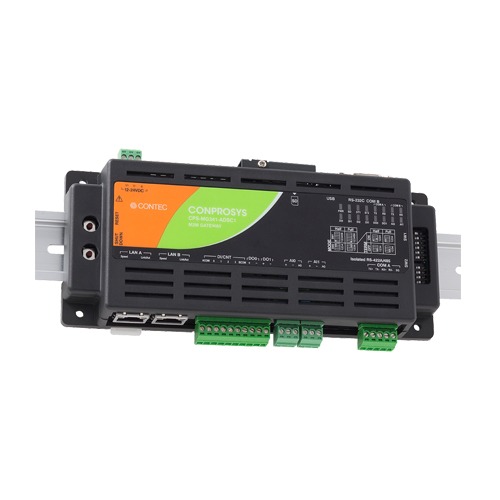

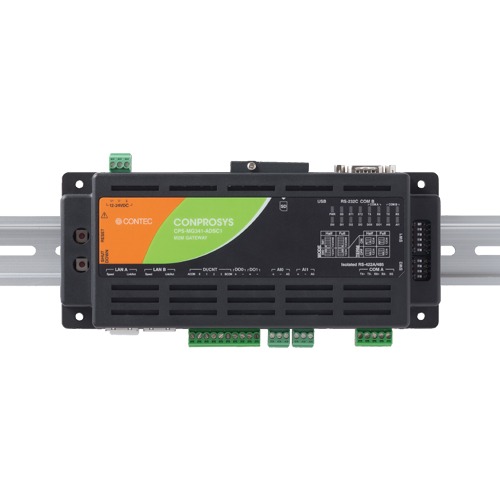

CPS-MG341-ADSC1-111_img1CPS-MG341-ADSC1-111_img1

CPS-MG341-ADSC1-111

  • Promoting a multi-vendor system supporting a varied lineup of PLCs and Modbus devices
  • Connect up to 10 links and collect data from 100 group registers
  • Web Monitoring and Web Task Script
  • Message communication function
  • Simple Router Function
  • Adaptable to a temperature range between -20 and +60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MG341-ADSC1-111 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. CPS-MG341-ADSC1-111 is the data collector “M2M Gateway” controller that supports respective PLCs as well as various Modbus devices. In the facilities with PLC controlling, data can be collected by “M2M Gateway” controller, and the facilities without PLC controlling, data can be collected by M2M controller. “M2M Gateway” can connect up to 10 Ethernet/calculating links with differing makers PLCs simultaneously. With the CONPROSYS series, data can be collected from various types of facilities and managed them all centrally. All the processes from development to operation can be performed on a web browser. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.

    • Promoting a multi-vendor system supporting a varied lineup of PLCs and Modbus devices
      • The product connects and supports every PLC and each Modbus device simultaneously.
    • Connect up to 10 links and collect data from 100 group registers
      • Up to 10 Ethernet/calculating links can be connected. Data collection from 30 PLCs and 100 group registers can be carried out. Up to 1000 data mapping for Modbus is possible.
    • Web Monitoring and Web Task Script
      • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser. By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
    • Message communication function
      • With the RS-232C, the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
    • Simple Router Function
      • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
    • Adaptable to a temperature range between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN)
    Programming CONPROSYS VTC
    Stack bus –
    Function Data transfer (https); Modbus master; Modbus/TCP slave; PLC link; BACnet server; BACnet client
    Digital I/O
    Input Channels 4-ch
    Output Channels 2-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 2msec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Semiconductor relay output
    Built-in Power Supply 12VDC
    Analog I/O
    Input Channels Differential 2-ch
    Input Range 0 to 20mA
    ADC Resolution 12-bit
    Sampling Rate
    Input Buffer Memory
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory
    Counter
    Number of Channels 2-ch
    Counting System 24-bit Up count
    Response speed 1KHz
    Serial Comm.
    Number of Channels 1x RS-232C [ASYNC]; 1x RS-422A/485 [ASYNC]
    Transmission Speed 300 ~ 115,200bps
    Isolation Property
    Transmission Method

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-MG341-ADSC1-111 CONPROSYS M2M Gateway – Integrated Type / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
