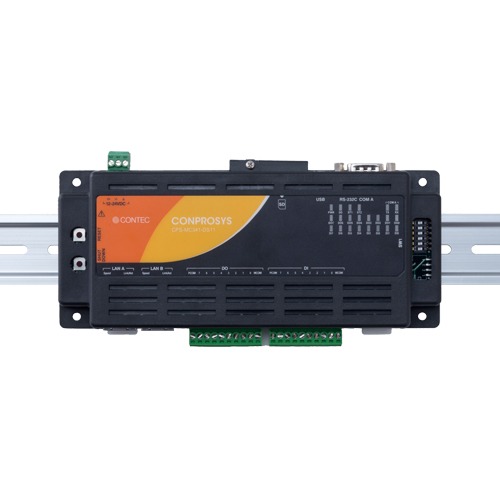

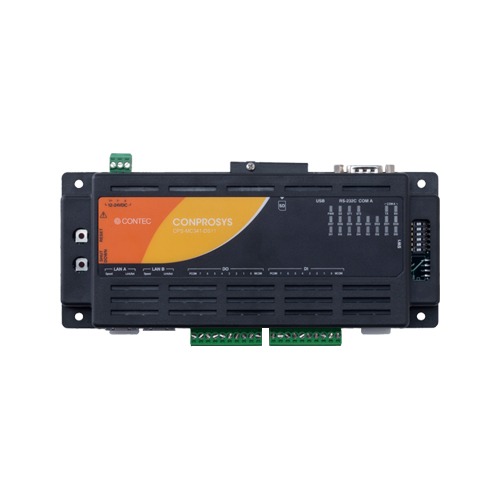

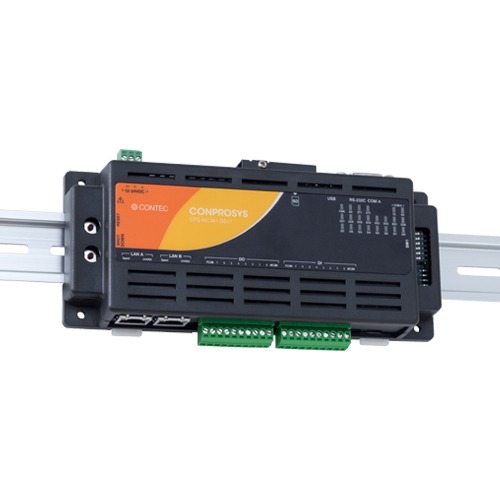

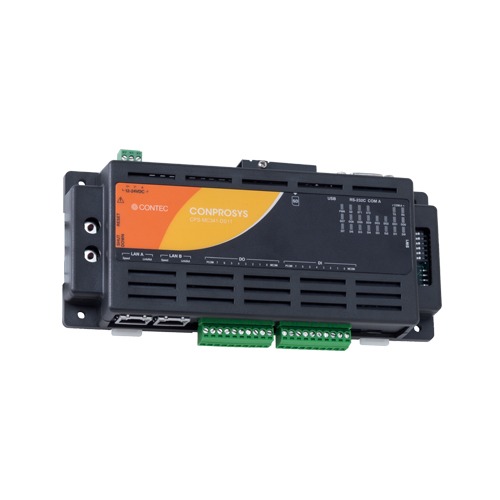

CPS-MC341-DS11-111_img1CPS-MC341-DS11-111_img1

CPS-MC341-DS11-111

  • Measurement and Upload
  • Simple Router Function
  • Web Monitoring and Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and +60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MC341-DS11-111 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a M2M controller with RS-232C, isolated digital input/output, and LAN interface.It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device.You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: CE, FCC, UL and VCCI.

    • Measurement and Upload
      • The product measures data with an external sensor and uploads them to the Cloud server.
    • Simple Router Function
      • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
    • Web Monitoring and Web Task Script
      • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
    • Message Communication Function
      • With the RS232C or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
    • Compact Design
      • Compact design, 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.
    • Adaptable to a temperature range between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN)
    Programming CONPROSYS VTC
    Stack bus –
    Function Data transfer (https); Modbus/TCP slave
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Analog I/O
    Input Channels –
    Input Range –
    ADC Resolution –
    Sampling Rate –
    Input Buffer Memory
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Serial Comm.
    Number of Channels 1x RS-232C [ASYNC]
    Transmission Speed 110 ~ 115,200bps
    Isolation Property
    Transmission Method

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-MC341-DS11-111 CONPROSYS M2M Controller – Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-232C
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    SCADA Software
    Item Item Name
    CONPROSYS HMI System (CHS) Web HMI / SCADA Software
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
    CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)
