CPS-MC341-A1-111_img1CPS-MC341-A1-111_img1

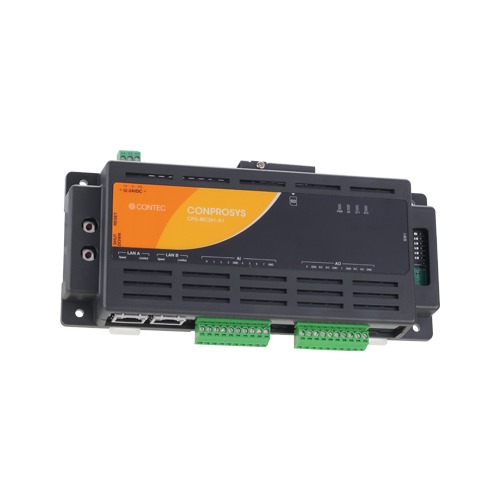

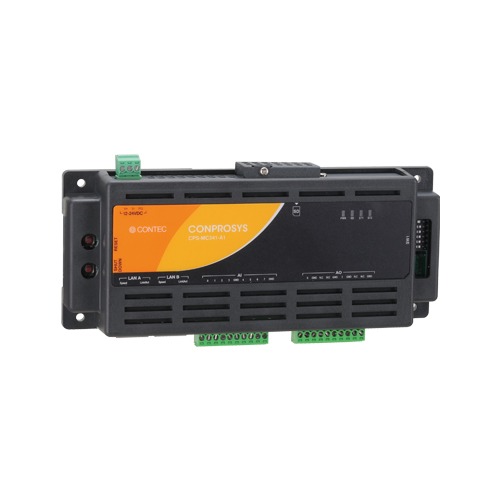

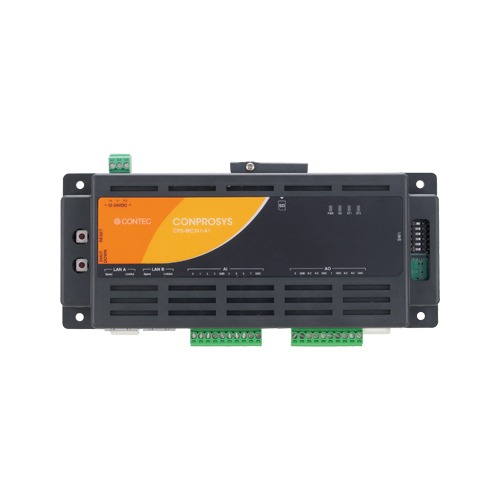

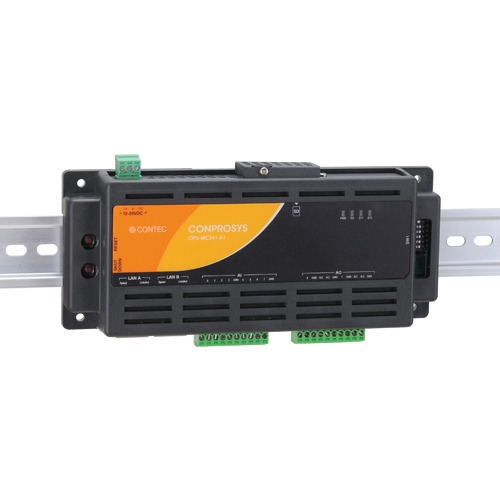

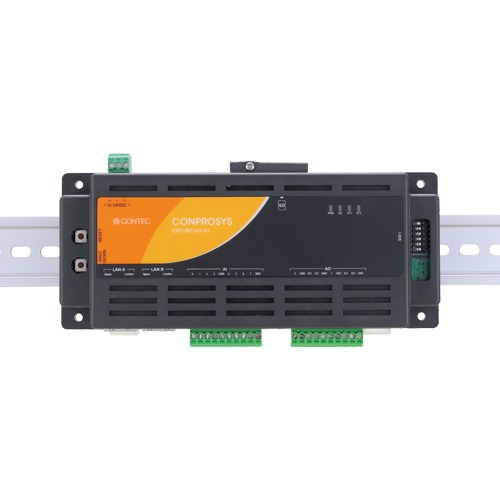

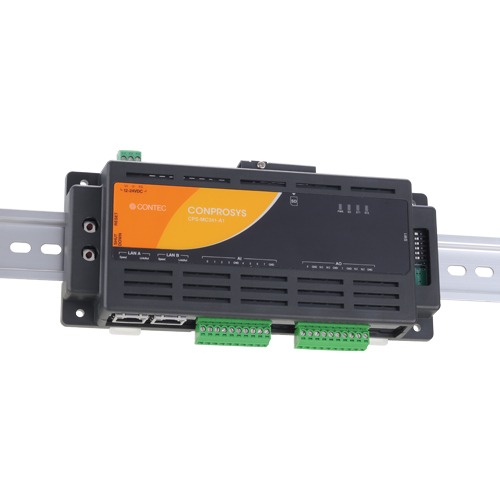

CPS-MC341-A1-111

  • Bus isolated high precision 8 channels of analog input and 2 channels of output within
  • Measurement and Upload
  • Web Monitoring and Web Task Script
  • Simple Router Function
  • Message Communication Function
  • Compact Design

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MC341-A1-111 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a M2M controller with analog input and output. It contains high precision 8 channels of analog input and 2 channels of output with 16-bit solution each. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: CE, FCC, UL and VCCI.

    • Bus isolated high precision 8 channels of analog input and 2 channels of output within
      • Supplied with analog input (16-bit, 8 channels), and analog output (16-bit, 2 channels).
    • Measurement and Upload
      • The product measures data with an external sensor and uploads them to the Cloud server.
    • Web Monitoring and Web Task Script
      • The product contains a Web server. Even with the PC located remotely, I/O information can be monitored and updated through a Web browser.On the monitoring screen, the standard GUI parts (graphic, slider, button, etc.) can be freely arranged.All operations including monitoring layout, making relations with I/O information, can be achieved through a Web browser.
    • Simple Router Function
      • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
    • Message Communication Function
      • With the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
    • Compact Design
      • Compact design, 188.0(W) × 78.0(D) × 30.5(H), features flexibility in installation.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN)
    Programming CONPROSYS VTC
    Stack bus –
    Function Data transfer (https); Modbus/TCP slave
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Analog I/O
    Input Channels Single-ended 8-ch
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate
    Input Buffer Memory
    Output Channels 2-ch
    Output Range ±10V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Serial Comm.
    Number of Channels –
    Transmission Speed –
    Isolation Property
    Transmission Method

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-MC341-A1-111 [Limited Stock] [End of Repair Service : December 26, 2031] CONPROSYS M2M Controller – Integrated Type / 1x LAN + HUB / 8x AI / 2x AO
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    SCADA Software
    Item Item Name
    CONPROSYS HMI System (CHS) Web HMI / SCADA Software
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
