CPI-MS10CM4

  • Highly compatible with Raspberry Pi 4 – Industrial grade product with improved reliability and environmental resistance
  • Raspberry Pi OS pre-installed – Get start now and running quickly
  • HAT-sized card for I/O expansion – Make full use of your Raspberry Pi peripheral assets

Data Sheet PDF

SKU: CPI-MS10CM4 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

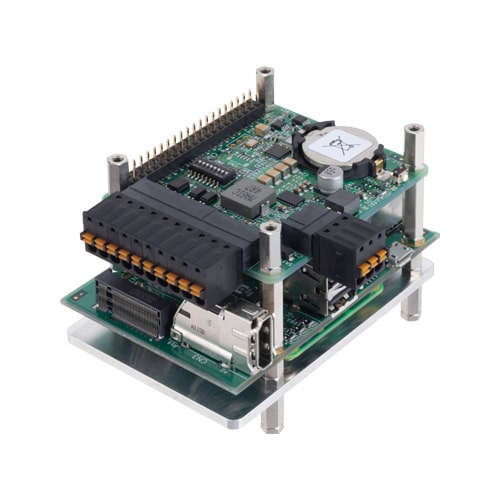

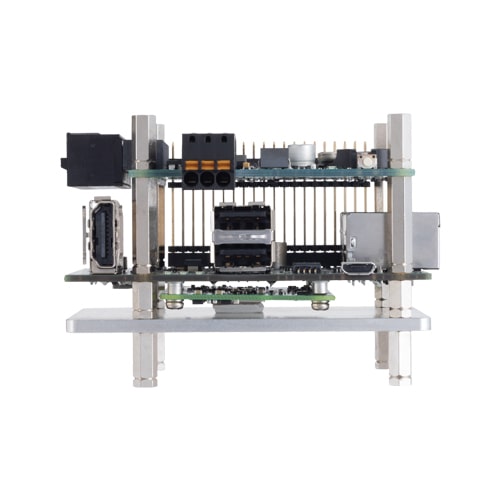

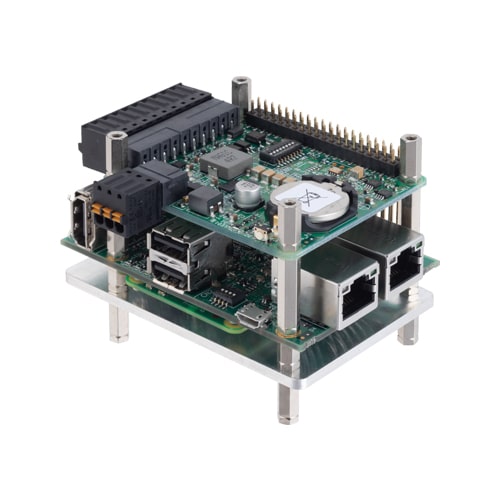

The new product is our original board computer based on the Raspberry Pi embedded module Compute Module 4 (CM4). By utilizing the vast peripheral assets for Raspberry Pi, including our “CPI series,” you can build a variety of applications.

  • Highly compatible with Raspberry Pi 4 – Industrial grade product with improved reliability and environmental resistance
    • Uses Raspberry Pi Compute Module 4 (CM4). High compatibility with Raspberry Pi is ensured. Wide temperature range design for use: -20 to 60°C (-4 to 140°F) (airflow 0.7ms). Equipped with our RTC/RAS card for Raspberry Pi (CPI-RAS), watchdog timer (WDT) and clock (RTC). Equipped with a high-output, high-efficiency power supply circuit and noise filter for the power supply, generating clean 5VDC to supply to the internal circuitry.
  • Raspberry Pi OS pre-installed – Get start now and running quickly
    • The Raspberry Pi OS is pre-installed. You can start using it right away. Utilize Pi peripheral assets. Compatible with our CPI series of measurement control cards, a pioneer in PC-based measurement control, and expand the I/O required for FA control systems, such as digital I/O, analog I/O, and counters, up to 8 cards via local bus (I2C).

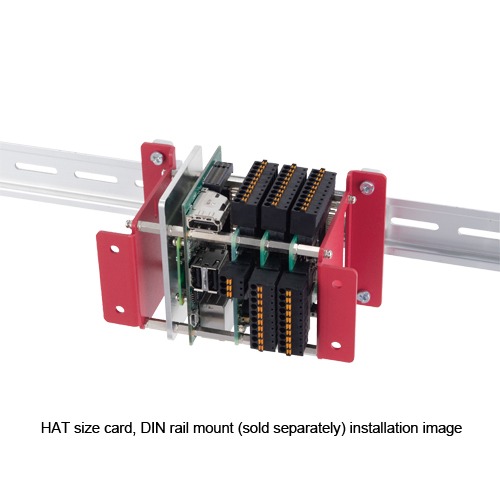

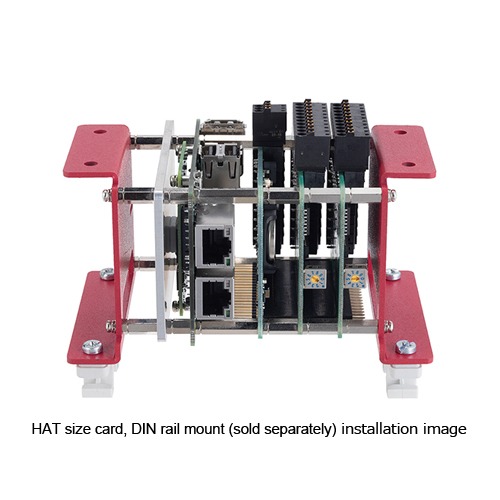

  • HAT-sized card for I/O expansion – Make full use of your Raspberry Pi peripheral assets
    • Equipped with a HAT 40-pin header GPIO, it utilizes the peripheral assets of Raspberry Pi. Compatible with our CPI series of measurement control cards, a pioneer in PC-based measurement control, it can expand the I/O required for FA control systems, such as digital I/O, analog I/O, and counters, up to 8 cards via local bus (I2C).

Specifications

Specifications
Controller Unit
Series PC-HELPER CPI
Communication Ports Ethernet (LAN)
Programming –
Stack bus Raspberry Pi HAT (40pin GPIO)
Function –
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory –
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory –
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels –
Transmission Speed –
Isolation Property –
Transmission Method –

Ordering Informations

Ordering Information
Model Description Certification
CPI-MS10CM4-2E021 Raspberry Pi-based Industrial Small Embedded CPU Card
  • CE marking
  • FCC compliant
  • VCCI
Options
Analog I/O
Items Item Name
CPI-AI-1208LI Analog input Raspberry Pi card 12-bit 8ch (differential 4ch) voltage input/current input
CPI-AO-1602LC Analog Output Raspberry Pi card 16bit 2ch voltage/current output
Digital I/O
Items Item Name
CPI-DI-16L Digital input Raspberry Pi card 16ch (isolated 12 – 24VDC)
CPI-DIO-0808L Digital I/O Raspberry Pi card 8ch/8ch (isolated 12 – 24VDC)
CPI-DIO-0808RL Digital I/O Raspberry Pi card 8ch/8ch (negative-common isolated 12 – 24VDC)
CPI-DO-16L Digital output Raspberry Pi card 16ch (isolated 12 – 24VDC)
CPI-DO-16RL Digital output Raspberry Pi card 16ch (negative-common isolated 12 – 24VDC)
CPI-RRY-16 Solid-state relay Raspberry Pi card 16ch (Contacts A isolated – 30VDC)
Counter
Items Item Name
CPI-CNT-3201I Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z)
Power Supply / AC Adapter
Items Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
PWA-65AWD9 AC Adapter(19VDC 3.42A)
Other Accessories
Items Item Name
CPI-DIN01 DIN Rail Mount Kit for Raspberry Pi card
