CPI-CNT-3201I

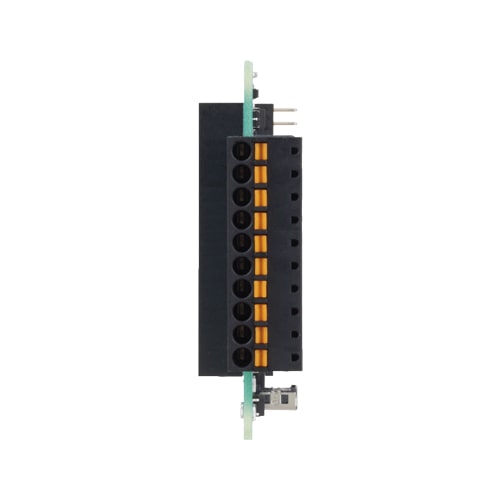

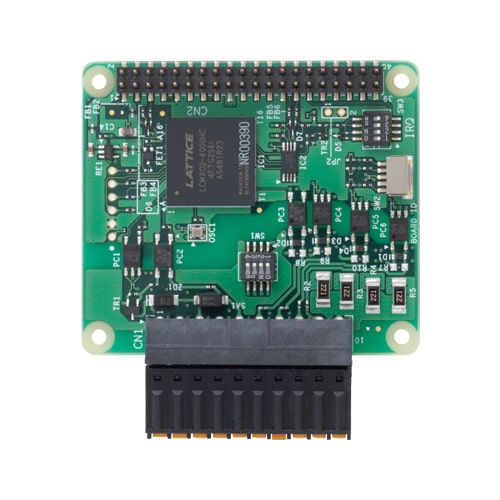

  • Push-type terminal block for easy wiring
  • Stacked connection of up to 8 cards
  • API compatible with PC expansion cards and Python-compatible API
  • 32-bit up-and-down counter
  • Opto-coupler bus isolation
  • Adaptable to a temperature range between -20 to 60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPI-CNT-3201I Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

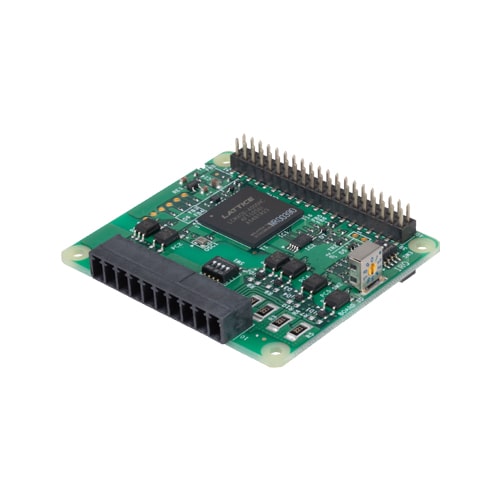

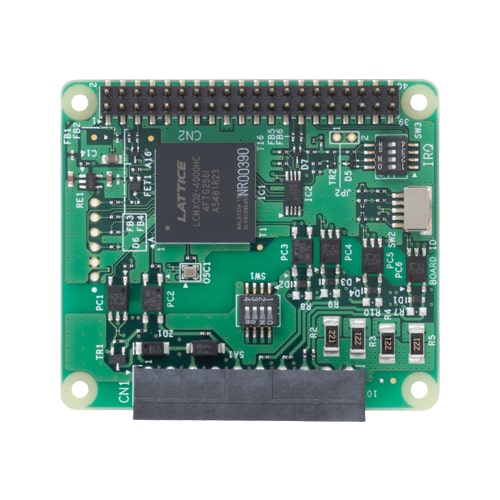

    This product is an expansion card that adds an counts input interface to the Raspberry Pi. It has one channel of 32-bit up/down counters, allowing external devices such as a rotary encoder and a linear scale to be connected. The pulse signal interface is an opto-coupler isolated input.

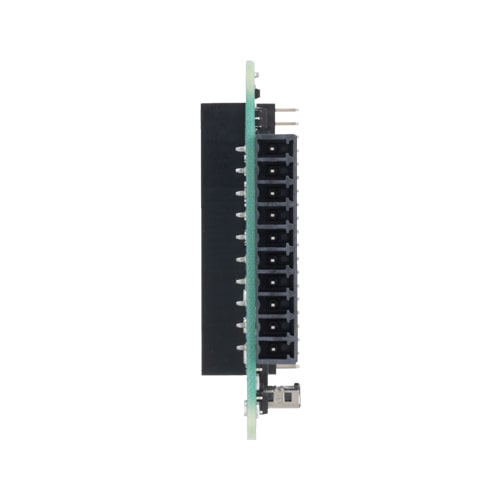

    • Push-type terminal block for easy wiring
      • The CPI Series includes a push-type terminal block for convenient, simple connection and disconnection of wired HATs without the need for tools or crimping terminals.
    • Stacked connection of up to 8 cards
      • CONTEC has expanded HAT specifications to include address ID configurability, making it possible to connect up to eight stacked cards. * Connection to HATs from other manufacturers is also possible. * Use a CONTEC RAS function expansion card (CPI-RAS) for stable power supply with stacked connections.
    • API compatible with PC expansion cards and Python-compatible API
      • Take advantage of API compatibility with CONTEC PCI Express, PCI, USB, and Ethernet-type measurement control devices. Development assets can be reused across multiple platforms. Linux driver (API-TOOL for Linux) can be downloaded for free from the company’s website along with sample Python and GCC programs, allowing users to begin programming right away.
    • 32-bit up-and-down counter
      • The 32 bit up-and-down counter could have four channels and up to 500kHz maximum speed pulse input. Moreover, it can count 2-phase signals and mono-phase signals such as a rotary encoder and a linear scale.
    • Opto-coupler bus isolation
      • As the GPIO 40pin connector on Raspberry Pi is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
    • Adaptable to a temperature range between -20 to 60°C
      • The product is capable of operating in the temperature between -20 to 60°C. It can be installed in the various environments.

    Specifications

    Specifications
    Add-on Module
    Series PC-HELPER CPI
    Bus Specification Raspberry Pi HAT (40pin GPIO)
    Size HAT Size
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up/Down count
    Response speed 500KHz
    Supported OS
    Supported OS Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPI-CNT-3201I Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    RAS
    Items Item Name
    CPI-RAS RAS/RTC Raspberry Pi card
    Device Drivers
    Items Item Name
    API-CNT(LNX) Linux version Counter Input Driver
    Other Accessories
    Items Item Name
    CPI-DIN01 DIN Rail Mount Kit for Raspberry Pi card
