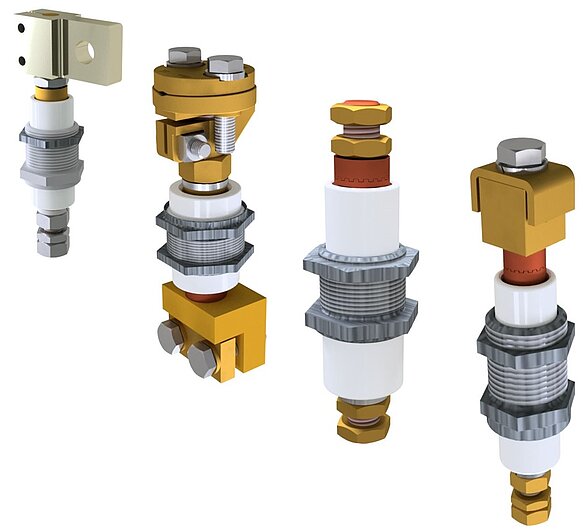

The insulators of our flameproof conductor bushings are made from ceramic. They come with a removable bolt made out of copper or brass.The screw-in threads of the insulators are available from M16 to M42. The bolt diameter can be chosen with a variety of connection combinations.The conductor bushings of the TOS-series are suitable for ambient temperatures between –50 °C and +130 °C. The rated voltage is from 690 V up to 1600 V and the continuous current of the conductor bushings is from 16 A up to 630 A.
| Dimensions | see data sheet |
|---|---|
| Voltage | 690 V, 1000 V, 1600 V |
| Current | 16 A, 25 A, 63 A, 100 A, 160 A, 250 A, 400 A, 630 A |
| Thread | M16, M18, M24, M27, M33, M36, M42 |
| Service temperature range | -55 °C up to +130 °C |
