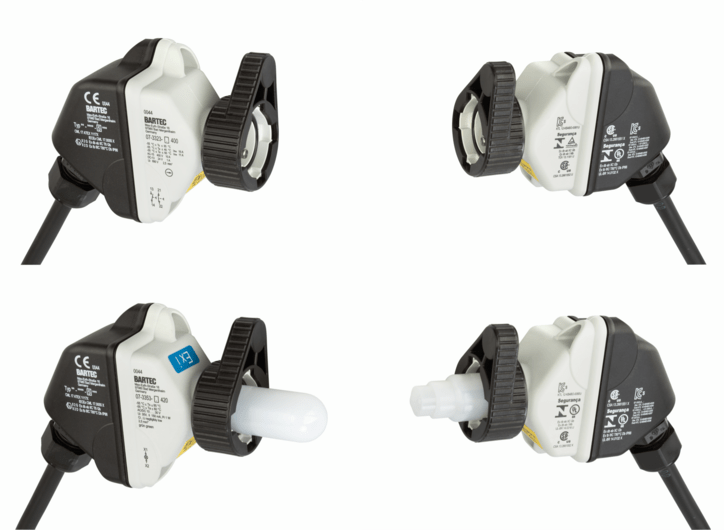

BARTEC offers a junction box to facilitate the use of ComExflexin a control console or a control panel. The junction box features a cable gland and can be combined with various function modules.The junction box allows the connection of a conductor, which can be assembled either to order or by the customer.
ATEX:Ex II 2G Ex db eb IIC T6 GbEx II 2G db eb ia IIC T6 GbEx II 2D Ex tb IIIC T80 °C Db IP66Ex II 2D Ex tb ia IIIC T80°C Db IP66
IECEx:Ex db eb IIC T6 GbEx db eb ia IIC T6 GbEx tb IIIC T80°C Db IP66Ex tb ia IIIC T80°C IP66
-55 °C to +60 °C(-67 °F to +140 °F)
| Protection class | Function module with junction box and actuating element min. IP 66 |
|---|---|
| Dimensions | see data sheet |
| Material | Thermoplastic/injection moulding |
| Weight | approx. 40 g |
| Connection | Clamping range 4 to 9 mm; 5 to 10 mm |
