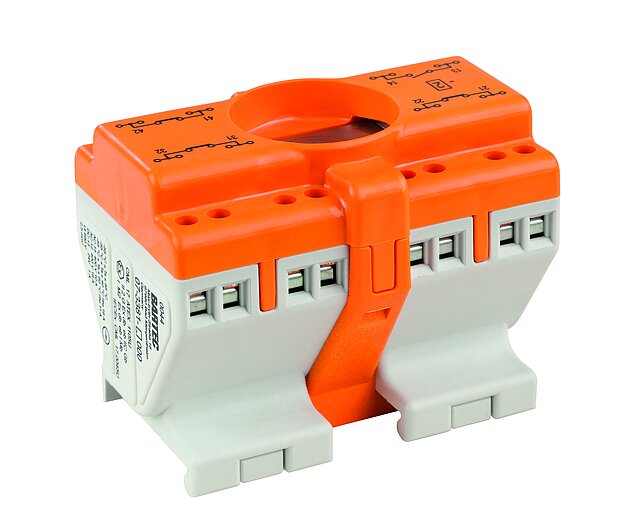

The ComEx 4-pole switch module can be used in almost all potentially explosive areas where machine functions need to be triggered by a button or a switch. ComEx switch modules are flexible in use and offer a range of actuator elements. All contacts of the switch module are selfcleaning, and NC contacts have positive opening. The conductor is connected using terminals with increased safety on the back of the module. The simple installation of the actuator elements without tools guarantees the high IP protection type. The 4-pole switch module can be installed quickly and directly into double or triple ComEx enclosures, or in combination with other command devices in control units.
| Material | thermoplastic |
|---|---|
| Contact material | AgSnO2 |
| Installation | on TS 35 x 7.5 mounting rail |
| Voltage | see data sheet |
| Current | see data sheet |
| Connection | terminals 2.5 mm2, fine stranded |
