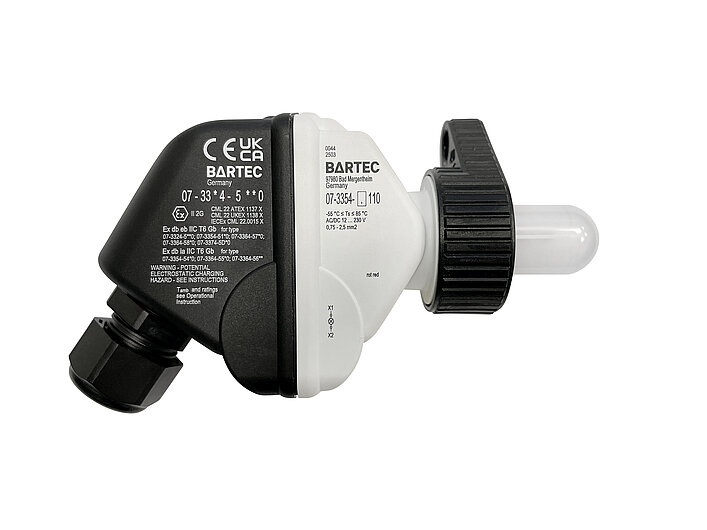

The ComEx Global modulos with junction box with cable gland is designed for combining with various function modules. Two screws are used to connect the junction box to the respective function module. The ComEx Global modulos with junction box allows a conductor to be connected, which can be assembled either to order or by the customer.
| Degree of protection | Function module with junction box and actuating element: Up to IP66/IP67 |
|---|---|
| Electrical parameters |
See operational instruction of the respective function module |
| Cable gland clamping range |
-5 to 10 mm (0.2 to 0.39 in) |
| Mounting | Screwed to the function module |
| Shock resistance | DIN EN 60068-2-27: 30 g 18 ms |
| Weight | Approx. 40 g (0.09 lb) |
