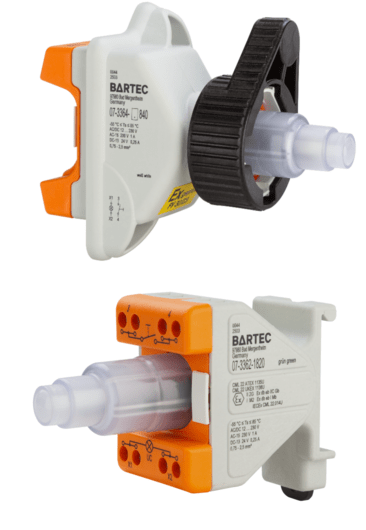

The ComEx illuminated push button module is used in almost all hazardous (potentially explosive) areas where machine functions are activated by pressing a button and the corresponding status is to be indicated visually.
ATEX/UKEX:Ex II 2G Ex db eb IIC GbEx I M2 Ex db eb I Mb
IECEx:Ex db eb IIC GbEx db eb I Mb
CEC (UL mark):Ex db eb IIC GbClass I, Division 2, Groups A, B, C, D
NEC (UL mark):Class I, Zone 1, AEx db eb IIC GbClass I, Division 2, Groups A, B, C, D
Service temperature (Ts):-55 °C to +85 °C(-67 °F to +185 °F)
| Degree of protection | IP20 acc. to EN 60529 |
|---|---|
| Rated insulation voltage |
300 V |
| Working voltage | 250 V |
| Rated voltage | AC/DC 12…230 V |
| Material | thermoplastic |
| Connection | 0.75 mm² – 2.5 mm²/18 AWG – 12 AWG |
| Mounting |
Panelmounted Railmounted |
| Lamp | LED (red, green, yellow, white, blue) |
| Electrical life | > 105 running hours |
| Mechanical life | > 105 switching cycles |
| Weight | Panelmounted approx. 110 g Railmounted approx. 110 g |
