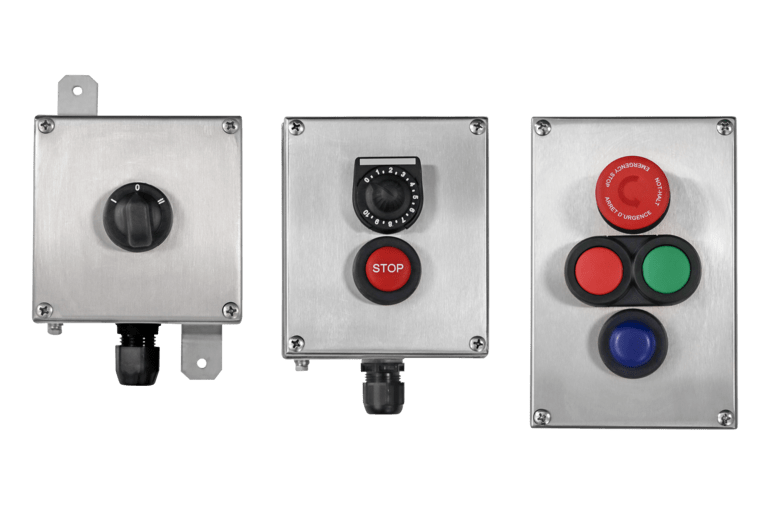

It‘s a question of control, signalling and display units fitted into stainless steel standard enclosures. The enclosures are certified for use in Zone 1 and 2 as well as Zone 21 and 22.The equipment is highly corrosion resistant due to high quality stainless steels. Either plastic or metal glands are used for electrical connection.On request, BARTEC will equip the enclosures with corresponding control, signalling and display units and cable glands and supply the required labels.Our control stations are available in bothstandardandcustomizedsolutions. For tailored configurations, a dedicated configurator is provided. Simply select the required criteria, and the configurator will generate a detailed 3D model of the solution, enabling a swift ordering process and seamless receipt of goods.
ATEX:Ex II 2G Ex db eb IIC T6 GbEx II 2D Ex tb IIIC T80 °C Db
IECEx:Ex db eb IIC T6 GbEx tb IIIC T80 °C Db
-20 °C to +40 °C(-4 °F to +104 °F)-55 °C to +60 °C(-67 °F to +140 °F)(depending on the fitted components)
| Protection class | IP 65/IP 66 |
|---|---|
| Dimensions | see data sheet |
| Material | stainless steel 316 L, 312 L |
| Connection | Terminals 2.5 mm² |
