COM-1P2-USB

Overview / Features

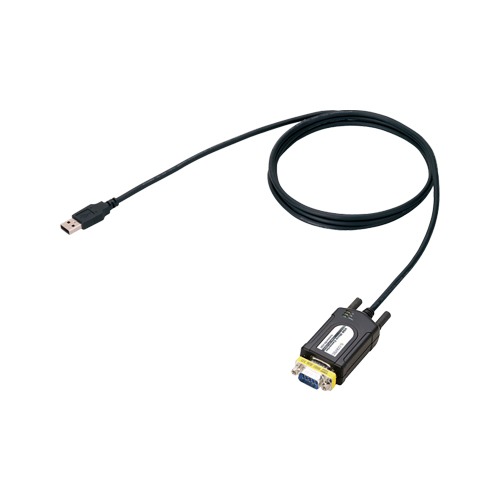

These products are an isolated micro converter for converting the USB port of PC into RS-232C serial communications. The COM-1P(USB)H has one RS-232C-standard COM port channel that isolates the bus line with the PC. These products support a baud rate of up to 921,600bps and has separate 128-byte / 384-byte buffer memory for transmit and receive. Windows/Linux device driver is supported with this product.

• Max. 921,600bps RS-232C Serial Communication
  • The COM ports of this product support up to 921,600 bps. The COM-1P(USB)H has one isolation-type RS-232C-standard COM port channel.
• Compatible to USB 2.0/USB 1.1 and not necessary to power this product externally as the bus power is used
  • Compatible to USB 2.0/USB 1.1 and capable to achieve high speed transfer at Full Speed (12Mbps). Not necessary to power this product externally as the bus power of USB is used.
• Possibly used as Windows, Linux-standard COM ports
  • Combining the product with our device driver COM-DRV makes it possible to use the product in the same manner as the COM ports of a PC.This product supports communication using DCB structures in the Win32 API and Linux-standard system calls. In addition, supplies a diagnostic program to confirm hardware operation and to perform a communication test with equipment.
• Up to 127 converters can be installed on a single PC
  • Using a USB hub allows you to install up to 127 converters to a single PC.
• Equipped with buffer memory for transmitting 128 bytes and receiving 384 bytes
  • This product is equipped with buffer memory for transmitting 128 bytes and receiving 384 bytes. These are FIFO format, useful for high speed communications and to reduce the load to the CPU when transmitting/receiving.
• The control line for RS-232C can be controlled and monitored by software
  • The control lines for RTS, CTS, DTR and DSR can be controlled and monitored using software.
