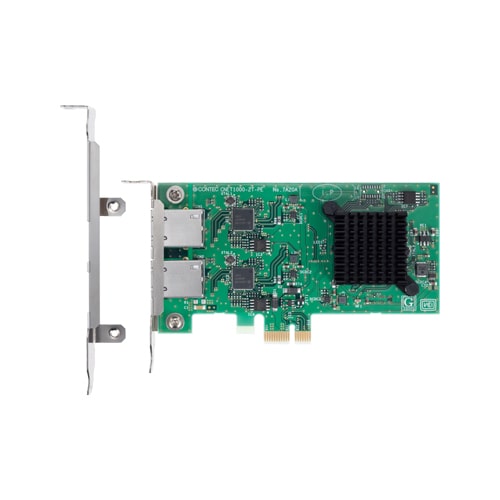

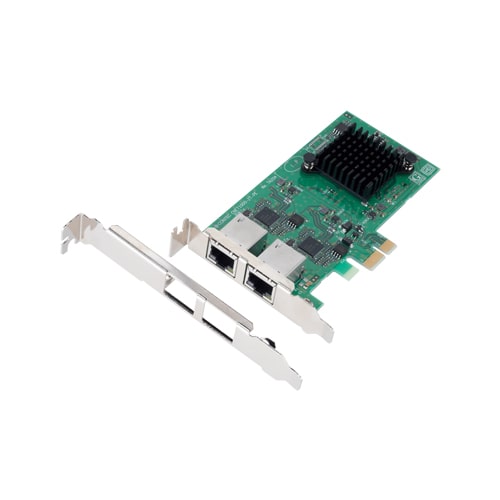

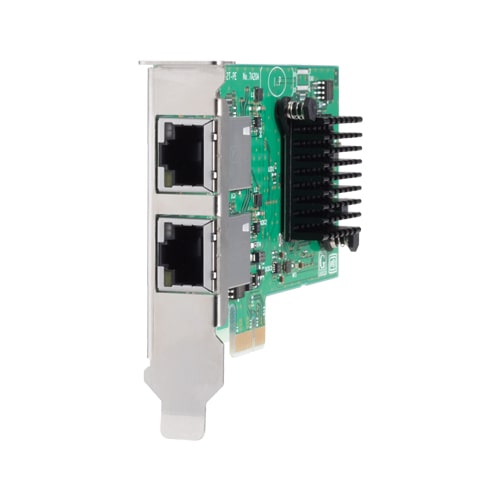

This product is a 2-port a PCI Express bus-compliant Ethernet Network Card(LAN Board) which conforms to IEEE802.3ab (1000BASE-T) /IEEE802.3u (100BASE-TX) /IEEE802.3 (10BASE-T) standard. This product supports a Low-Profile size slot and if replaced with the supplied bracket, supports a standard size slot, too.Windows/Linux driver is supported with this product.
| Series | FLEXLAN IoT |
|---|---|
| Bus Specification | PCI Express |
| Size | Low Profile |
| Used Connector | 2x RJ-45 |
| Number of Ports | 2-port |
|---|---|
| Communication Standard | IEEE802.3ab (1000BASE-T); IEEE802.3u (100BASE-TX); IEEE802.3 (10BASE-T) |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows Server 2019; Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| CNET1000-2T-PE | PCI Express Compliant Gigabit LAN Card 2port |
|
