CNET1000-1T-PE_img1CNET1000-1T-PE_img1

CNET1000-1T-PE

  • Low Profile size compliant with IEEE802.3ab (1000BASE-T)
  • Compliant with Low Profile size/Standard size slots (bracket included)
  • Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).
  • Windows/Linux compatible driver

Data Sheet PDF

SKU: CNET1000-1T-PE Categories: , Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

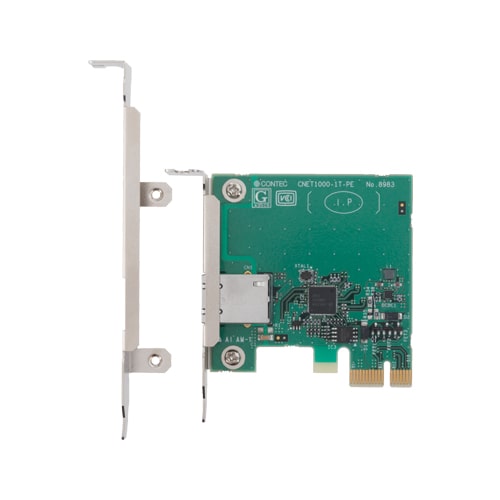

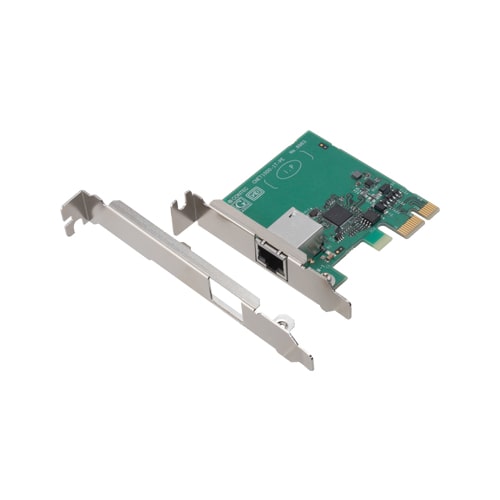

This product is a PCI Express bus compatible board that compliant with IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) standards. Compatible with Low Profile size, and standard size by replacing with the included bracket. Windows/Linux drivers are available.

  • Low Profile size compliant with IEEE802.3ab (1000BASE-T)
    • It has one IEEE802.3ab (1000BASE-T) port and has a board size (65.3mm x 68.9mm) that supports Low Profile size.
  • Compliant with Low Profile size/Standard size slots (bracket included)
    • Brackets compliant with Low Profile size/Standard size slots are included. When installing in a standard size slot, replace it with a standard size bracket.
  • Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).
    • Operated in the temperature between -40 °C and +75 °C ( -40 °F and +167 °F).
  • Windows/Linux compatible driver
    • Download from the CONTEC website.

Specifications

Specifications
Add-on Module
Series FLEXLAN IoT
Bus Specification PCI Express
Size Low Profile
Used Connector 1x RJ-45
Ethernet
Number of Ports 1-port
Communication Standard IEEE802.3ab (1000BASE-T); IEEE802.3u (100BASE-TX); IEEE802.3 (10BASE-T)
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2012; Azure Stack HCI; Linux

Ordering Informations

Ordering Information
Model Description Certification
CNET1000-1T-PE PCI Express Compliant Gigabit LAN Card
  • CE marking
  • FCC compliant
  • VCCI
