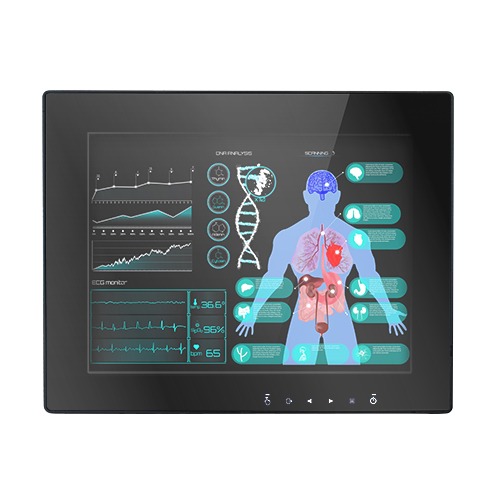

The CM-ME121P PCAP touch medical monitor combines a compact form factor with advanced touch screen technology and a long lifecycle. The display also features a sealed front bezel, industry-leading brightness (500 nits), IEC/EN 60601, 61326, and 55011 medical certifications, and unique upgrades like programmable soft touch buttons, USB hub, and a locking power adapter.
The one-click touch enable/disable soft key located on the front of the monitor makes cleaning and disinfecting easier than ever and prevents unintended keystrokes.
Additional one-click soft buttons can be programmed for a variety of functions to streamline operations.

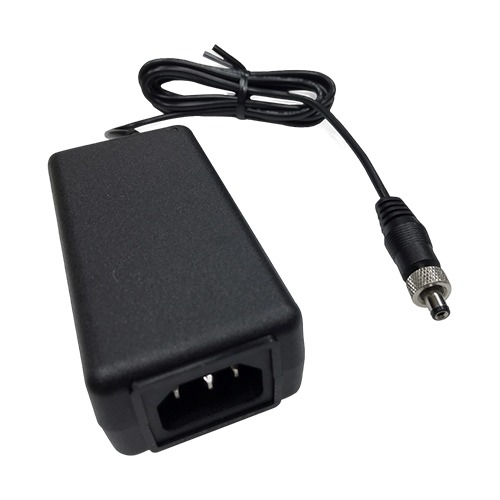

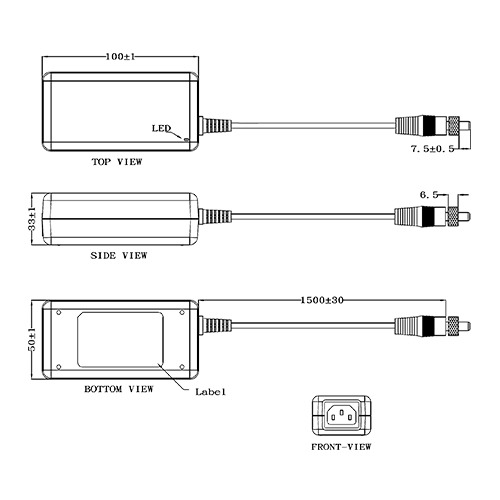

An optional 24V/1.5A medical-grade power adapter with locking mechanism prevents accidental shutoff from a jostled power cord.
| Mounting | VESA 75 x 75; Desktop |
|---|
| LCD size | 12.1-inch |
|---|---|
| LCD resolution | 1024 x 768 (XGA) |
| Touch panel resolution | – |
| Detection method | Projected capacitive touch (PCAP) |
| Video input | HDMI; Analog RGB |
|---|---|
| Touch panel input | USB |
| Input voltage | 24VDC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F） |
| Standards & Certifications | CE; FCC Class B; IEC 60601; IEC 61326 |
| Model | Description | Certification |
|---|---|---|
| CM-ME121P50XG (Ordering PN: 23224) |
12.1” 450 Nits, 1024×768, PCAP Touch Medical Display |
|
