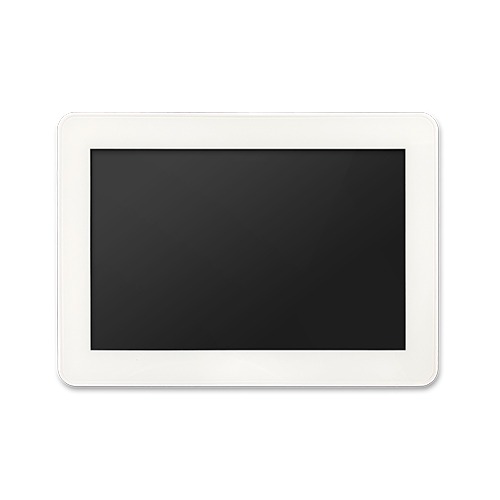

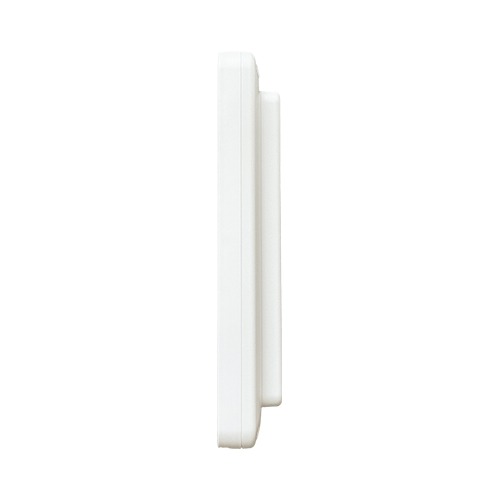

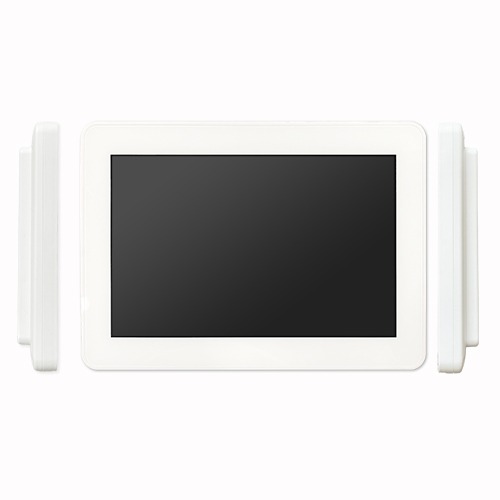

Contec’s CM-CL101P 10.1″ professional monitor series reduces costly churn for device manufacturers and retailers by providing comprehensive revision control and a multi-year production lifecycle. This extended life cycle reduces the costs associated with testing and validation of new configurations due to obsolescence.
The CM-CL101P has a modern, compact architecture and features an integrated 1D/2D barcode scanner (CM-CL101P40WX-B model only), PCAP multi-touch technology, widescreen resolution, and a sealed front bezel to protect it from dust and liquid intrusion. This versatile design is adaptable to a wide range of industrial and commercial applications including patient monitoring, point-of-care, genomics, point-of-sale, manufacturing, warehousing, and many others.
Despite its compact size, the CM-CL101P has a modern widescreen PCAP touch display with 1200 x 800 resolution and 400 nits brightness.

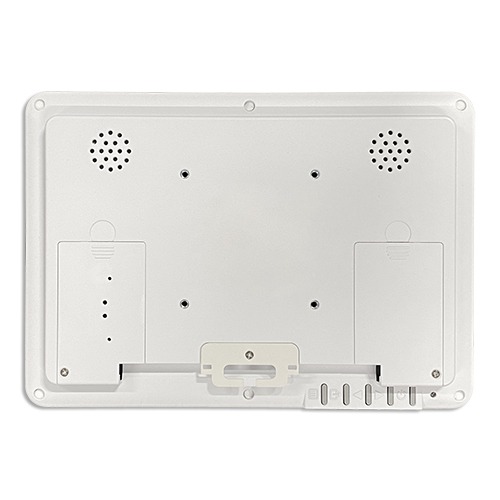

The CM-CL101P can be adapted to fit almost any application from retail to medical. Typically used as a human-machine-interface (HMI), the unit can be affixed to any device using a standard VESA mount in either portrait or landscape mode. This versatile design is adaptable to a wide range of industrial and commercial applications including patient monitoring, point-of-care, genomics, point-of-sale, manufacturing, warehousing, and many others.
| Mounting | VESA Mount |
|---|
| LCD size | 10.1-inch |
|---|---|
| LCD resolution | |
| Touch panel resolution | |
| Detection method | Projected capacitive touch (PCAP) |
| Video input | HDMI |
|---|---|
| Touch panel input | USB |
| Input voltage | 12VDC; 100 to 240VAC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (with no airflow) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CCC; FCC Class A; IEC/EN 61010 |
| Model | Description | Certification |
|---|---|---|
| CM-CL101P40WX | 10.1″ Closed Frame PCAP Touch Monitor |
|
| CM-CL101P40WX-B | 10.1″ PCAP Touch Monitor with Integrated Zebra Barcode Scanner |
|
