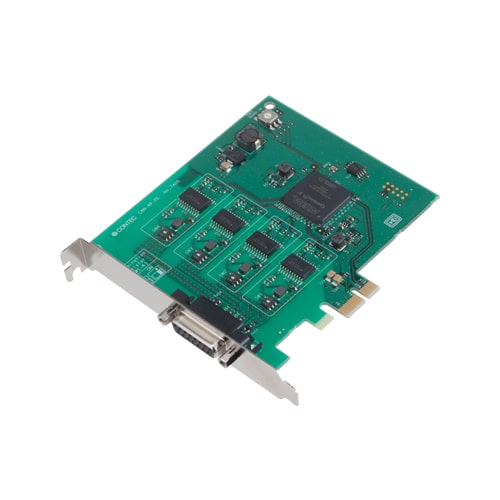

CAN-4P-PE_img1CAN-4P-PE_img1

CAN-4P-PE

  • CAN2.0B communication function
  • Individuals transmit/receive buffer for each channel
  • Isolates each channel and between computers, and protects signal lines from surges
  • Terminating resistor and distribution cable included
  • Provide device drivers compatible with Windows/Linux

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CAN-4P-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

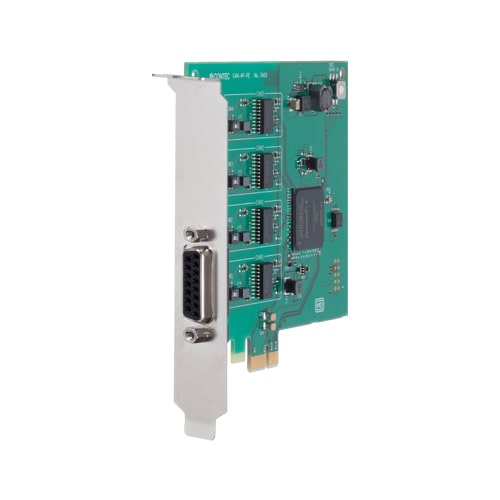

    This product is a PCI Express bus-compliant interface board that extends CAN communication functionality to the PC.This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps.Both products are equipped with 4 channels of CAN communication ports on a single board, and each channel and the PC are electrically isolated.Windows/Linux driver is supported with this product.

    • CAN2.0B communication function
      • This product is a PCI Express bus-compliant interface board that extends CAN communication functionality to the PC.This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps.Each channel is controlled by an individual CAN controller, allowing each channel to communicate independently of the status of other channels.
    • Individuals transmit/receive buffer for each channel
      • This product is equipped with a transmitting FIFO buffer that can store up to 64 messages for each channel individually, and a transmitting FIFO buffer that can store up to 93 messages as a shared buffer for all channels. Additionally, this product is equipped with a receiving FIFO buffer that can store up to 64 messages for each channel individually, and a receiving FIFO buffer that can store up to 170 messages as a shared buffer for all channels. Therefore, even if the load on the CAN communication bus increases, it is possible to prevent messages from being missed.
    • Isolates each channel and between computers, and protects signal lines from surges
      • This product is electrical isolation between each channel and between the PC. It can prevent electrical noise between the computer and external circuits and prevent interference between channels. In addition, each signal line is surge protected, so it has excellent noise resistance.
    • Terminating resistor and distribution cable included

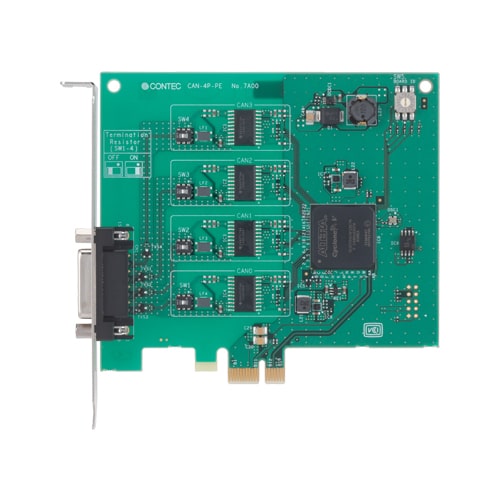

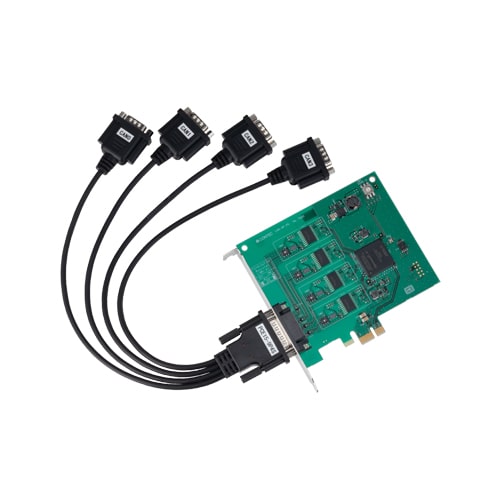

      • The terminating resistor of each channel can be enabled/disabled using the switch on the board. Additionally, a distribution cable that converts CAN communication to a standard D-SUB 9-pin connector is included, making it easy to connect to existing CAN communication networks and CAN communication devices.
    • Provide device drivers compatible with Windows/Linux
      • Windows/Linux applications can be created by using the device driver API-TOOL provided on our website. We also provide a diagnostic program that allows you to check the operation of your hardware.

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification PCI Express
    Size Short Size
    Used Connector D-SUB 15-pin (Female)
    CAN
    Number of Channels 4-ch
    Communication Standards CAN 2.0B (Active)
    Data Transfer Rate up to 1Mbps (CAN2.0B)
    Isolation Inter-channel isolation; Bus isolation
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    CAN-4P-PE CAN2.0B communication card PCI Express compatible 4ch (isolated)
    • CE marking
    • VCCI
