CAN-2-WF_img1CAN-2-WF_img1

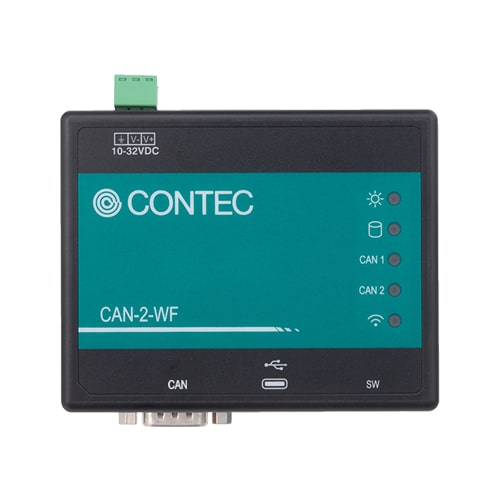

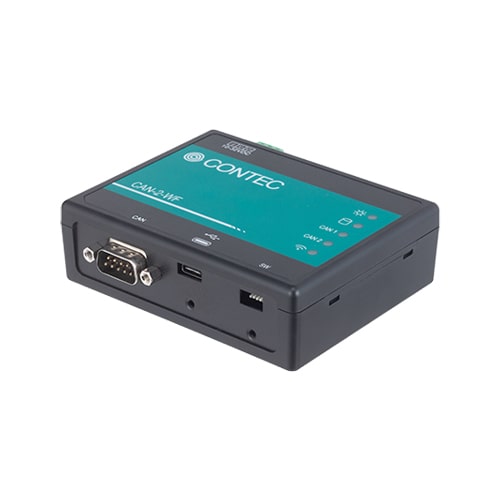

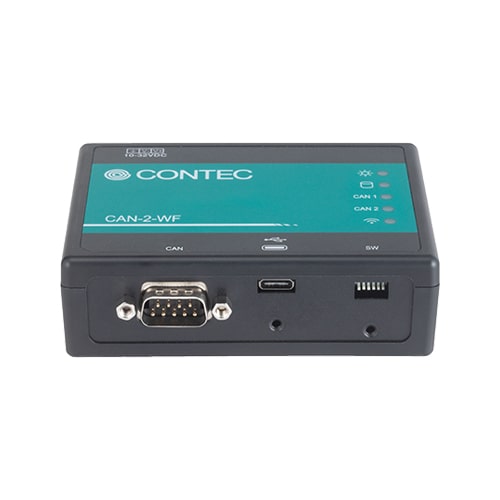

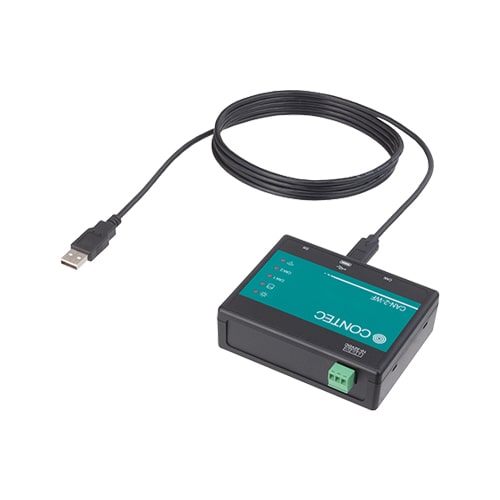

CAN-2-WF

  • CAN communication function
  • Compatible to USB 2.0/USB 1.1 and bus power-driven eliminating the need for external power
  • Includes a separate send/receive buffer for each channel
  • Capable of adapting a wide-range power (10 to 32VDC)
  • Provide device drivers compatible with Windows/Linux
  • Compatible with 4 standards, IEEE802.11n/a/b/g

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CAN-2-WF Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a converter unit that expands the CAN communication function via a wireless LAN connection or a PC USB port. It complies with four standards: IEEE802.11n/a/g/b and allows for wireless communication with a PC running.
    This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. It includes a USB Type-C port and can operate using the bus power from the host. Windows/Linux driver is supported with this product.

    • CAN communication function
      • This product can expand the 2-channel CAN communication function to a PC. This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. Each channel is controlled by an individual CAN controller, allowing each channel to communicate independently of the status of other channels.
    • Compatible to USB 2.0/USB 1.1 and bus power-driven eliminating the need for external power
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps). The product is driven by bus power from USB, which eliminates the need for external power. * The wireless LAN cannot be used when this product is connected via USB. When using the wireless LAN, supply power externally.
    • Includes a separate send/receive buffer for each channel
      • A separate 16 message FIFO buffer for sending and receiving is provided at each channel.
    • Capable of adapting a wide-range power (10 to 32VDC)
      • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.
    • Provide device drivers compatible with Windows/Linux
      • Windows/Linux applications can be created by using the device driver API-TOOL provided on our website.
    • Compatible with 4 standards, IEEE802.11n/a/b/g
      • You can choose 4 ch (W52 *1) in the 5 GHz (IEEE802.11n/a), and in the 2.4 GHz (IEEE802.11n/g/b), you can choose from 1 to 11ch. So, it is possible to design a flexible wireless network to adjust a radio wave interference.*1 W52 : 36, 40, 44, 48ch

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification USB; Wi-Fi
    Size –
    Used Connector D-SUB 9-pin (Male)
    CAN
    Number of Channels 2-ch
    Communication Standards CAN 2.0B (Active)
    Data Transfer Rate up to 1Mbps (CAN2.0B)
    Isolation –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    CAN-2-WF CAN 2.0B converter unit for Wireless/USB 2 ch
    • CE marking
    • FCC compliant
    • TELEC
    • VCCI
    Option
    Device Drivers
    Item Item Name
    API-CAN(LNX) CAN communication driver for Linux
    API-CAN(WDM) CAN communication driver for Windows
    API-J2534(WDM) Windows version CAN SAE J2534 compatible driver
    Power Supply / AC Adapter
    Item Item Name
    POA201-10-2 AC adaptor (12V,1A)
