CAN-2-USB_img1CAN-2-USB_img1

CAN-2-USB

  • CAN communication function
  • Compatible to USB1.1/USB2.0 and bus power-driven eliminating the need for external power
  • Includes a separate send/receive buffer for each channel
  • Capable of adapting a wide-range power (10 – 32VDC)
  • Terminating Resistor Function within
  • Provide device drivers compatible with Windows/Linux

Data Sheet PDF

SKU: CAN-2-USB Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

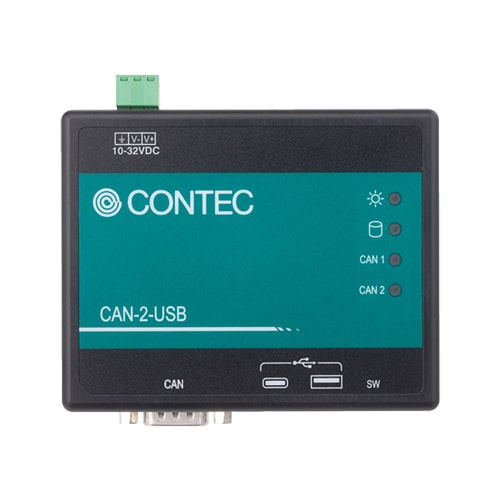

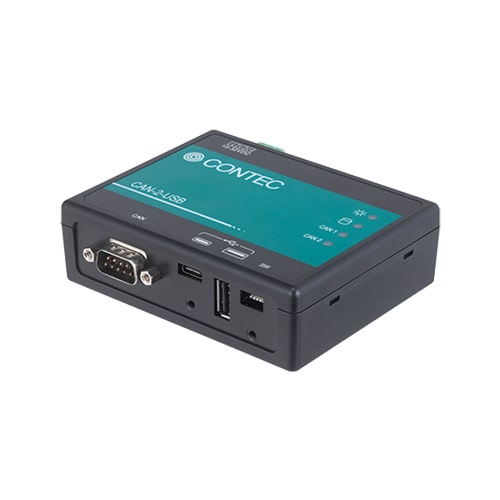

This product is a CAN/USB converter unit that connects to a PC USB port and expands the CAN communication function. It is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. And includes a USB Type-C port that can operate using the bus power from the host. Windows driver is supported with this product.

  • CAN communication function
    • This product is a CAN/USB converter unit that connects to a PC USB port and expands the CAN communication function. This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. It includes a USB Type-C port and can operate using the bus power from the host.Windows/Linux driver is supported with this product.
  • Compatible to USB1.1/USB2.0 and bus power-driven eliminating the need for external power
    • Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at High Speed (480 Mbps). The product is driven by bus power from USB, which eliminates the need for external power.
  • Includes a separate send/receive buffer for each channel
    • A separate 16 message FIFO buffer for sending and receiving is provided at each channel.
  • Capable of adapting a wide-range power (10 – 32VDC)
    • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.
  • Terminating Resistor Function within
    • The terminating resistor of each channel can be enabled/disabled using the DIP switch on the unit.
  • Provide device drivers compatible with Windows/Linux
    • Windows/Linux applications can be created by using the device driver API-TOOL provided on our website.

Specifications

Specifications
Add-on Module
Series –
Bus Specification USB
Size –
Used Connector D-SUB 9-pin (Male)
CAN
Number of Channels 2-ch
Communication Standards CAN 2.0B (Active)
Data Transfer Rate up to 1Mbps (CAN2.0B)
Isolation –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
CAN-2-USB CAN2.0B communication USB converter unit 2ch
  • CE marking
  • FCC compliant
  • RCM
  • VCCI
Option
Device Drivers
Item Item Name
API-CAN(LNX) CAN communication driver for Linux
API-CAN(WDM) CAN communication driver for Windows
API-J2534(WDM) Windows version CAN SAE J2534 compatible driver
Power Supply / AC Adapter
Item Item Name
POA201-10-2 AC adaptor (12V,1A)
