BX-U310_img1BX-U310_img1

BX-U310

  • Palm-sized ultra-compact PC
  • Operation capable in a wide temperature range -10 to 60°C (14 to 140°F)
  • “Power failure protection system” features power-off without OS shutdown
  • High-security design contributes to a highly reliable system
  • CONTEC-customized BIOS provides useful utility
  • Helps reduce running costs and energy consumption

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: BX-U310 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a fanless computer for embedded applications with an Intel Atom processor x6413E (1.5GHz). The product delivers both an ultra-compact design and performance in a wide temperature range (−10°C to 60°C with an airflow of 0.7 m/s).Addition to HDMI, a wide variety of interfaces including USB 3.2 Gen2 (USB 3.1) x 2 and LAN x 2 are provided.Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.

    • Palm-sized ultra-compact PC
      • At just 110 (W) × 80 (D) × 45 (H) mm, this ultra-compact PC is small enough to fit in the palm of your hand. This product assists customers in miniaturizing their equipment without compromising design.
    • Operation capable in a wide temperature range -10 to 60°C (14 to 140°F)
      • Achieves stable operation in a wide temperature range of -10 to 60°C (14 to 140°F). *1*1 Derating conditions exist.
    • “Power failure protection system” features power-off without OS shutdown
      • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure.*2 Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.*2 The Power Failure Protection system function is only supported by models equipped with M.2 SSD.
    • High-security design contributes to a highly reliable system
      • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC’s original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
    • CONTEC-customized BIOS provides useful utility
      • Useful utility of BIOS *3 customized by CONTEC is provided. The “Disk Copy” function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*4*3 For details, see each setting in the [BIOS Setup] section.*4 Contact your retailer for more information。
    • Helps reduce running costs and energy consumption
      • This product uses the x6413E low power consumption Intel Atom processor platform to achieve low power consumption while still providing sufficient performance.

    Specifications

    Specifications
    Mechanical Design

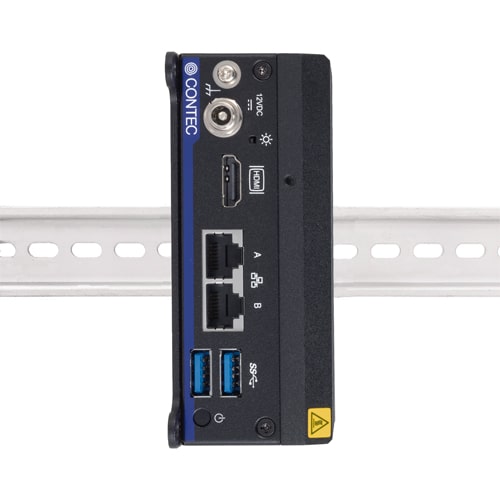

    Mounting DIN Rail Mount; Wall Mount
    Software Support
    Supported OS Windows 11 IoT Enterprise LTSC 2024; Windows 10 IoT Enterprise 2021 LTSC 64-bit
    Core System
    CPU Generation (Development code) Elkhart Lake
    Processor Atom x6413E
    CPU socket –
    Memory 8GB
    RAS Hardware monitor (Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Interface
    Video 1x HDMI
    LAN 2x 1000BASE-T
    Wireless Wireless LAN IEEE802.11ax/ac/a/b/g/n
    Audio –
    I/O 2x USB3.2 Gen2 (USB3.1)
    Memory card 1x M.2 2242
    Expansion Slot
    Expansion bus 1x M.2 Key E (2230); 1x M.2 Key M (2242)
    Drive bay –
    Power
    Input voltage 10.8 to 13.2VDC
    Environment
    Operating temperature -10 to 60°C (-14 to 140°F) airflow 0.7m/s; -10 to 50°C (14 to 122°F) without airflow
    Storage temperature -10 to 60°C (14 to 140°F）
    Standards & Certifications CE; FCC Class B; TELEC; UKCA; VCCI Class B

    Ordering Informations

    Ordering Information
    Model Description Certification
    BX-U310-J2700 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC)
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2705 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    BX-U310-J2720 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) / Win10 IoT Ent.2021
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2725 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) / Win10 IoT Ent.2021 / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    BX-U310-J2730 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) / Win11 IoT Ent.2024
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2735 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) / Win11 IoT Ent.2024 / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    BX-U310-J2800 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC)
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2805 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC) / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    BX-U310-J2820 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC) / Power failure protection / Win10 IoT Ent.2021
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2825 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC) / Power failure protection / Win10 IoT Ent.2021 / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    BX-U310-J2830 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC) / Power failure protection / Win11 IoT Ent.2024
    • CE marking
    • FCC compliant
    • VCCI
    BX-U310-J2825 Atom x6413E / 8GB LPDDR4 RAM / eMMC 64GB (TLC) , M.2 SSD 128GB(TLC) / Power failure protection / Win11 IoT Ent.2024 / Wireless LAN
    • FCC compliant
    • TELEC
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    PWA-60AWD1 Switching AC Adapter(12VDC 5V)
