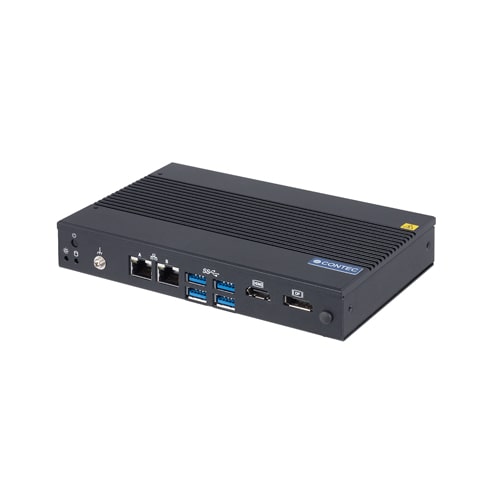

BX-T3020_img1BX-T3020_img1

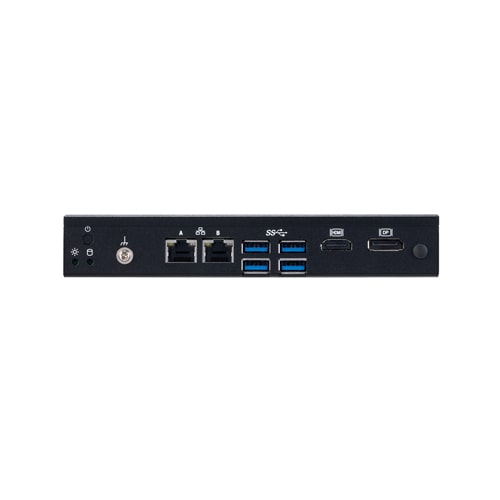

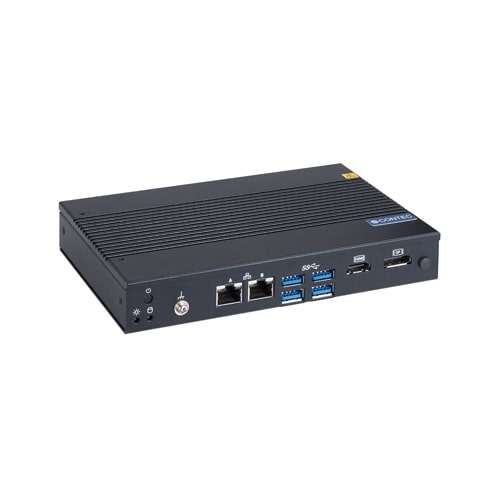

BX-T3020

  • Space-saving PC that contributes to the miniaturization of equipment
  • “Power failure protection system” features power-off without OS shutdown
  • High-security design contributes to a highly reliable system
  • CONTEC-customized BIOS provides useful utility
  • Helps reduce running costs and energy consumption
  • Major types of peripherals are supported with rich interfaces

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: BX-T3020 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a fanless and high-performance embedded type computer with the eight-generation Intel® CPU processor Celeron processor 4305UE(2.0GHz). Along with its power-saving and high-performance features, this product has a rich variety of interfaces and achieves fanless operation by way of natural air- cooling. In a space-saving design that can be installed in spaces only 50-mm thick with roughly the same area as a paperback book. The product includes varied interfaces such as HDMI, DisplayPort, dual LAN, USB 3.2 Gen 2 (USB 3.1), RS-232C/422/485. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.

    • Space-saving PC that contributes to the miniaturization of equipment
      • The space-saving design (29 × 178 ×115 mm (H × W × D)) of the BX-T3020 allows for installation in compact areas.
    • “Power failure protection system” features power-off without OS shutdown
      • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure*1. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.*1 The “Power failure protection system” function is only supported by OS pre-installed types.
    • High-security design contributes to a highly reliable system
      • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC’s original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
    • CONTEC-customized BIOS provides useful utility
      • Useful utility of BIOS *2 customized by CONTEC is provided. The “CONTEC Fast Boot” achieves Windows startup in 10 seconds.*3 The “Disk Copy” function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*4*2 For details, see each setting in the [BIOS Setup] section.*3 It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that CSME, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled.*4 Contact your retailer for more information.
    • Helps reduce running costs and energy consumption
      • This product uses a low power consumption platform 8th generation Intel CPU processor to achieve low power consumption while still providing sufficient performance.
    • Major types of peripherals are supported with rich interfaces
      • It has a variety of extended interface such as HDMI, DisplayPort, dual LAN, USB 3.2 Gen2 (USB 3.1), and RS-232C/422/485.

    Specifications

    Specifications
    Mechanical Design

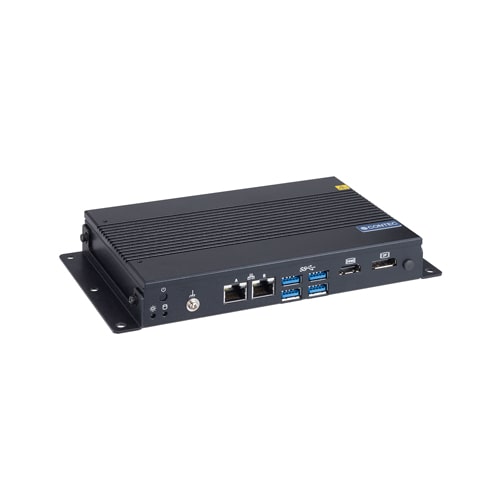

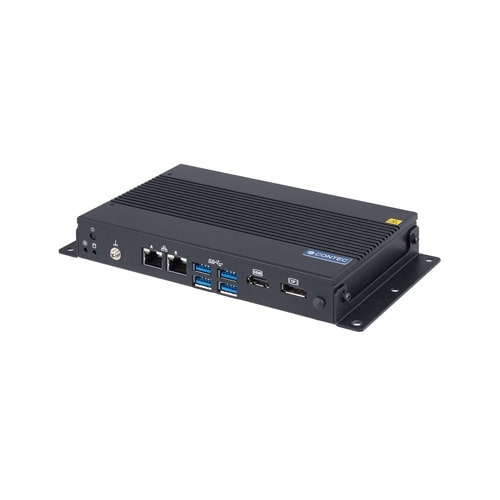

    Mounting Desktop; Wall Mount
    Software Support
    Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit
    Core System
    CPU Generation (Development code) 8th Gen. (Whiskey Lake-U)
    Processor Celeron 4305UE
    CPU socket –
    Memory 8GB
    RAS Remote reset; Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Interface
    Video 1x DisplayPort (v1.4); 1x HDMI
    LAN 2x 1000BASE-T/100BASE-TX/10BASE-T
    Wireless –
    Audio 1x Line out; 1x Mic-in
    I/O 4x USB3.2 Gen2 (USB3.1); 1x RS-232C/422A/485
    Memory card 1x M.2 E-Key (2230); 1x M.2 M-Key (2242/2280)
    Expansion Slot
    Expansion bus –
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 55°C (32 to 131°F) (with 0.7m/s airflow) ; 0 to 45°C (32 to 113°F)
    Storage temperature -10 to 60°C (14 to 140°F)
    Standards & Certifications CCC; CE; FCC Class A; UKCA; UL/cUL; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    BX-T3020-J2300 Celeron 4305UE / 8GB RAM(DDR4) / 128GB(TLC) NVMe
    • CE marking
    • FCC compliant
    • VCCI
    BX-T3020-J2320 Celeron 4305UE / 8GB RAM(DDR4) / 128GB(TLC) NVMe / Power Failure Protection / Win10 IoT Ent. 2021
    • CCC compliant
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    PWA-65AWD1 AC Adapter(12VDC)
