BX-T3000R

Overview / Features

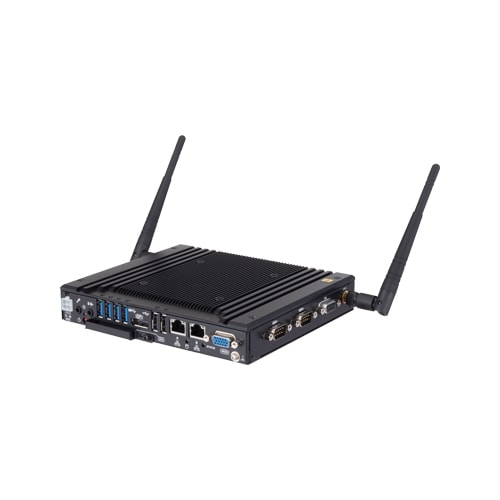

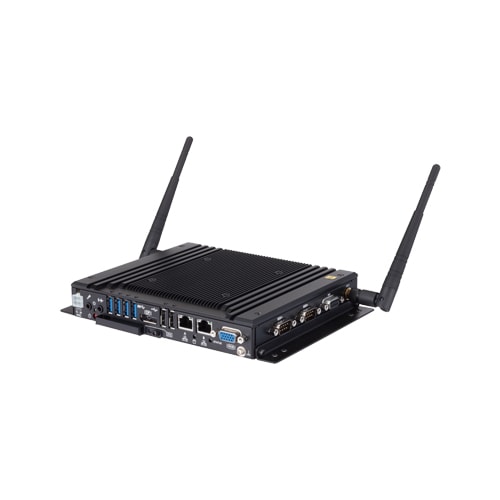

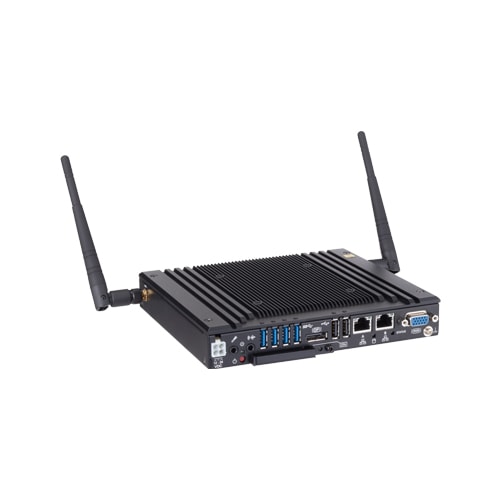

This product is a fanless computer for embedded applications with an 8th generation Intel CPU processor. It provides an ultra-compact design with a capability of operating in a wide temperature range (between -20 and + 60°C in an airflow environment of 0.7m/s). CPUs can be selected from Core i7-8665UE, Core i5-8365UE, and Core i3-8145UE processors. and Celeron 4305UE processors. Addition to DisplayPort, a wide variety of interfaces including USB 3.2 Gen2 x 4, LANx2 are provided. The wireless models are equipped with wireless LAN and Bluetooth for easy connection to digital devices, making them ideal as IoT gateway devices for connecting to peripherals.Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level. and Contec’s unique functions :”Power Failure Protection”, “CONTEC Fast Boot”, “Secure Boot USB Key”, “Disk Copy”, “Self-diagnosis” are available.

Usage examples

Image processing terminal

Vehicle terminal

Digital signage terminal

• Ultra-compact design about as large as A5 size contributes to space-saving
  • With a space-saving design of a thickness of 30.3 mm, a width of 182 mm, and a depth of 155 mm that is about A5 size.
• Rich interfaces for easy connection to various peripherals

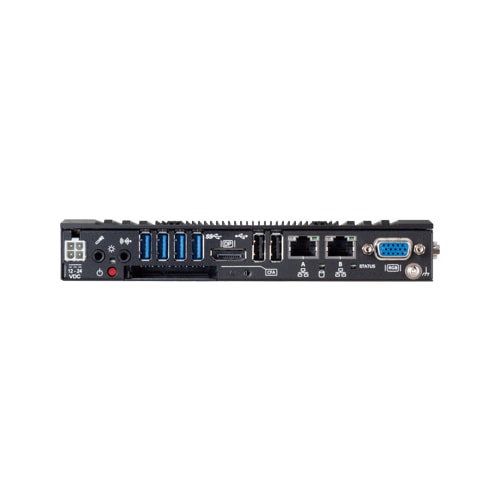

  • In addition to DisplayPort x1, USB 3.2 Gen1 (USB 3.0) x 4, USB 2.0 x 2, and LAN x 2, Analog RGB port and RS-232C x 2 (one port can be used as RS-422A or 485), DIO x1 are equipped. The CFast card slot, which is easily replaceable, is used for storage and can be used as a writing area for logs and collected data. The wireless model (BX-T210R) can be connected to wireless LAN and Bluetooth compatible devices.
• Operation capable in a wide temperature range between -20 to +60°C
  • Operates stably over a wide range of temperatures from -20 to 60°C*1.
• “Power failure protection system” features power-off without OS shutdown
  • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system
  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC’s original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility
  • Useful utility of BIOS*2 customized by CONTEC is provided. The “CONTEC Fast Boot” achieves Windows startup in 10 seconds.*3The “Disk Copy” function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*4
    • *1In an airflow environment of 0.7m/s.
    • *2For details, see “BIOS Setup” in the manual.
    • *3It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that ME, TPM, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled.
    • *4Contact your retailer for more information.
