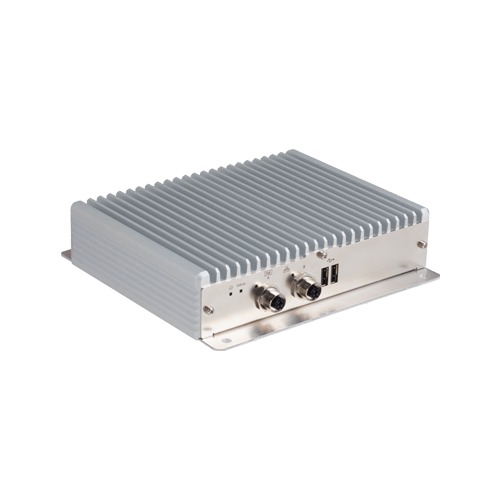

BX-R100_img1BX-R100_img1

BX-R100

  • Railway standard applicable
  • Fan-less design that reduces maintenance and inspection work
  • PoE(IEEE802.3at) power reception and adaptable to a wide-range power of 10.8 – 33.6VDC
  • M12 connecter interface
  • Excellent environmental capabilities
  • Contributing to running cost reduction and energy efficiency

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: BX-R100 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a fan-less computer for embedded applications and it conforms to EN50155(Class TX) standard. With an Intel Atom processor E3845 of Quad-Core CPU, it can perform stable, high-speed processing of four applications at the same time. The “resource-saving PC” contributes to downsizing and power-saving of equipment to reduce your running cost and to promote energy efficiency. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.

    • Railway standard applicable
      • This product obtained various standards required for the railway applications. EN55032, EN61000-3-2, EN61000-3-3, EN55024, EN50155 *, EN45545-2, EN60068-2-1, and EN61373 (* Type test conducted)
    • Fan-less design that reduces maintenance and inspection work
      • This product’s spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.
    • PoE(IEEE802.3at) power reception and adaptable to a wide-range power of 10.8 – 33.6VDC
      • The product is adaptable to PoE(IEEE802.3at) power reception and capable of dealing with a wide range of power between 10.8 and 33.6VDC in the differing environment. In addition, both power supplies can be switched seamlessly (such as turning on the both power and disconnecting one of them. Applying DC power during PoE operation and disconnecting PoE).

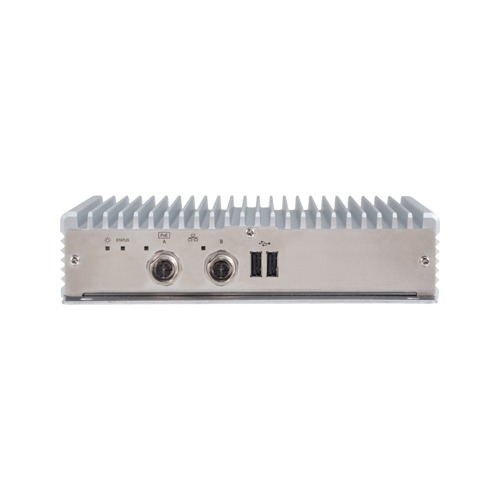

    • M12 connecter interface
      • M12 connector is adopted for LAN(1000BASE-T/100BASE-TX/10BASE-T) and for DC power.
        For LAN : M12 8pin X-Coded connector x 2
        For DC : M12 4pin A-Coded connector x 1
    • Excellent environmental capabilities
      • Capable of operating in the various ambient temperature environment of with vibration and shock resistance.
        -40 to 70°C (When using 1000BASE-T: -40 to 65°C): with airflow 0.5m/s
        -40 to 60°C (When using 1000BASE-T: -40 to 55°C): without airflow
        Vibration resistance 5G, Shock resistance 100G
    • Contributing to running cost reduction and energy efficiency
      • Adopting the low-power platform of Intel® AtomTM Processor E3845 achieves lower power consumption while still ensuring sufficient performance.

    Specifications

    Specifications
    Mechanical Design
    Mounting Desktop; Wall Mount
    Software Support
    Supported OS Windows 10 IoT Enterprise LTSB 2016 64-bit
    Core System
    CPU Generation (Development code) Bay Trail
    Processor Atom E3845
    CPU socket –
    Memory 4GB
    RAS Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
    GPU –
    AI Performance –
    Security –
    Interface
    Video 1x DisplayPort (v1.1a)
    LAN 2x 1000BASE-T
    Wireless –
    Audio –

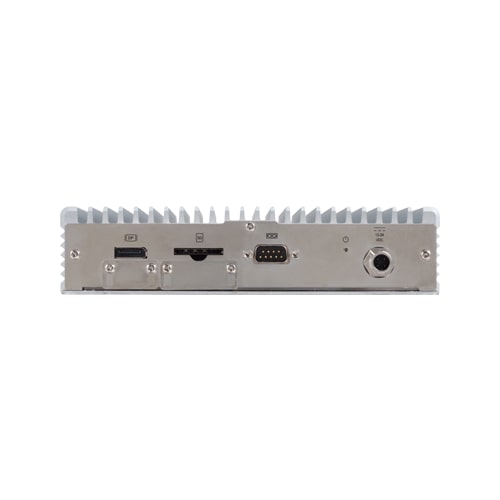

    I/O 2x USB2.0; 1x RS-232C
    Memory card 1x mSATA; 1x SD card slot
    Expansion Slot
    Expansion bus –
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature -40 to 70°C (-40 to 158°F) (when using 1000BASE-T : -40 to 65°C (-40 to 149°F)) with 0.5m/s airflow; -40 to 60°C (-40 to 140°F) (when using 1000BASE-T : -40 to 55°C (-40 to 131°F)) w/o airflow; * Derating may occur (Refer to Manual)
    Storage temperature -40 to 80°C (-40 to 176°F)
    Standards & Certifications CE; EN45545-2; EN50155; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    BX-R100-NA01M03 Intel Atom E3845 1.91GHz, 4GB Memory, 32GB SSD(MLC, mSATA), w/o OS
    • CE marking
    • FCC compliant
    • VCCI
    BX-R100-W10M01M03 Intel Atom E3845 1.91GHz, 4GB Memory, 32GB SSD(MLC, mSATA), w/Windows 10 IoT Enterprise LTSB 2016 64bit (EN/JA/KO/ZH)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Cable
    Item Item Name
    IPC-M12ADC-1 Power supply connector conversion cable for BX-R100
    IPC-M12XRJ-1 LAN connector conversion cable for BX-R100
