BX-M310-G_img1BX-M310-G_img1

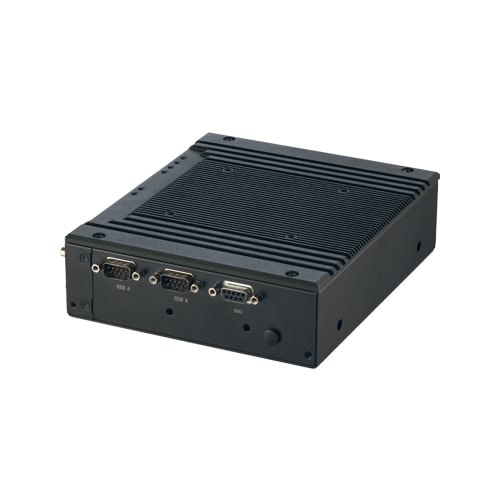

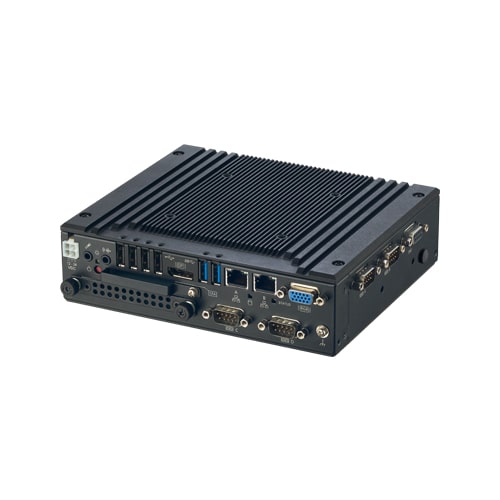

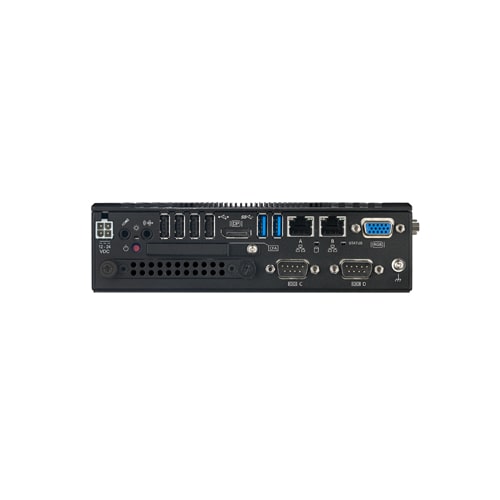

BX-M310-G

  • Embedded Intel Atom® x6413E processor adopted
  • Fanless design reduces maintenance work
  • Wide range DC input and power management
  • Major types of peripherals are supported with rich interfaces
  • Dual Gigabit LAN ports and M.2 slot

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: BX-M310-G Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    The BX-M310 product is a fan less computer designed for embedded applications, featuring an Intel Atom x6413E processor. Its compact design and wide temperature range make it suitable for use in a variety of settings. The computer includes a DisplayPort and a range of interfaces, including dual USB 3.1 Gen2 type A ports and two 2.5GBASE-T. It also features a built-in M.2 key E socket, which can be used to create wireless LAN and Bluetooth connections.
    Thanks to its front panel CFast Type I slot and 2.5″ storage device extraction design that provides product maintenance convenience. The embedded CPU is designed to provide greater reliability under stricter usage conditions.The BX-M310 series has high computing power, display capability, and various expansion slots make it well-suited for factory automation, digital signage, self-service kiosks, and medical applications.

    Usage Examples

    Factory automation

    Semiconductor / LCD manufacturing

    Digital signage

    Terminal for facility information


    • Embedded Intel Atom® x6413E processor adopted
      • This product adopts the CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
    • Fanless design reduces maintenance work
      • The product is fanless to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
    • Wide range DC input and power management
      • 12-24 VDC (± 10%) ; ATX /AT Mode by jumper setting, and supported Power On by Ring / Wake on LAN function (setting from BIOS).
    • Major types of peripherals are supported with rich interfaces
      • Support for modern peripherals such as 2 x USB 3.1, 4 x USB 2.0 DisplayPort, 1 x VGA port, 4 x Serial ports, and M.2 key B / E enables fast data transfer and easy connection to external devices.
    • Dual Gigabit LAN ports and M.2 slot
      • Two sets of integrated Gigabit Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity.

    Specifications

    Specifications
    Mechanical Design
    Mounting VESA 100 x 100; VESA 75 x 75; Wall Mount
    Software Support
    Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit
    Core System
    CPU Generation (Development code) Elkhart Lake
    Processor Atom x6413E
    CPU socket –
    Memory up to 32GB
    RAS Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface
    Video 1x DisplayPort; 1x Analog RGB
    LAN 2x 2500BASE-T
    Wireless –
    Audio 1x Line out; 1x Mic-in
    I/O 2x USB3.2 Gen1 (USB3.0); 4x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
    Memory card 1x CFast slot
    Expansion Slot
    Expansion bus 1x M.2 Key B (3042/3052) ; 1x M.2 Key E (1630/2230)
    Drive bay 1x 2.5-inch bay (SATA)
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 50°C (32 to 122°F) (with 0.7m/s airflow)
    Storage temperature -20 to 70°C (-4 to 158°F)
    Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    BX-M310-G22000 Intel Atom x6413E Processor, 8GB DDR4 SDRAM, with Wall mount kit.
    • CE marking
    • FCC compliant
    • VCCI
    Options
    AC-adapter
    • Switching AC-adapter 19VDC 3.42A
    Bracket
    • Bracket for VESA (75 x 75, 100 x 100)
