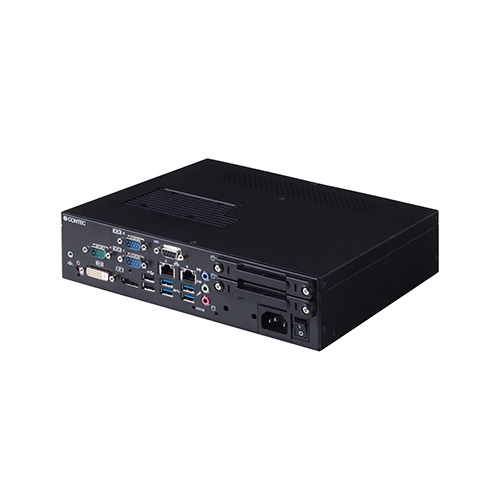

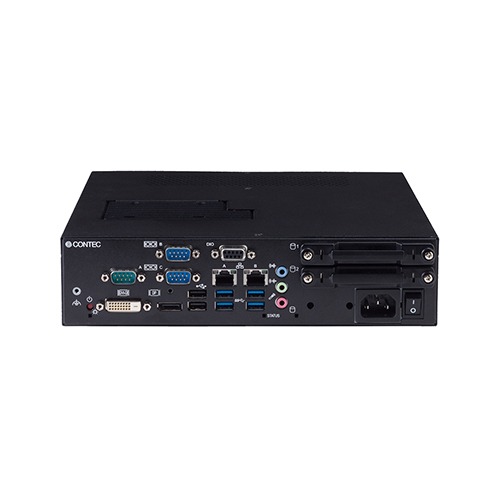

This product is a fan-less and high-performance embedded type computer with the seventh-generation Intel® Celeron 3965U processor. Along with its power-saving and high-performance features, this product has a rich variety of interfaces and achieves fan-less operation by way of natural air-cooling. Various interfaces such as dual LAN / USB 3.0 / DisplayPort / DVI-D / RS-232C / DIO and the slot-in 2.5 inches SATA hard disk bay unit being installed, this product is best suited to displaying images including digital signage. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, Contec-customized BIOS allows support to be provided at the BIOS level.
| Mounting | Desktop; Wall Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit; – |
|---|
| CPU Generation (Development code) | 7th Gen. (Kaby Lake-U) |
|---|---|
| Processor | Celeron 3965U |
| CPU socket | – |
| Memory | 8GB |
| RAS | Hardware monitor (Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key |
| Video | 1x DisplayPort (v1.2); 1x DVI-D |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 3x RS-232C |
| Memory card | – |
| Expansion bus | – |
|---|---|
| Drive bay | 2x 2.5-inch bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) (When using DVI:0 to 55°C (32 to 131°F)) w/ 0.7m/s airflow; 0 to 50°C (32 to 122°F) (When using DVI:0 to 45°C (32 to 113°F)) without airflow |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| BX-M1020-NA02 | Base model with Intel Celeron processor 3965U 2.20GHz (Memory 8GB, without OS, without storage devices) |
|
| BX-M1020 BTO Model | BTO model with Intel Celeron processor 3965U 2.20GHz (Memory 8GB, without expansion slot) |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| Storage 1 |
|
|---|---|
| OS |
|
| Storage 2 *1 |
|
| RAID Function |
|
*1 If you selected a RAID function, you must select the same device for Storage 2 as one for Storage 1.
* There are combinations that cannot be configured. Please inquire in detail.
| Item | Item Name |
|---|---|
| PC-HDD100GS-2 | 2.5-inch 100GB SATA Hard Disk Drive |
| SSD-256GS-2M | 2.5-inch 256GB SATA Solid State Drive |
