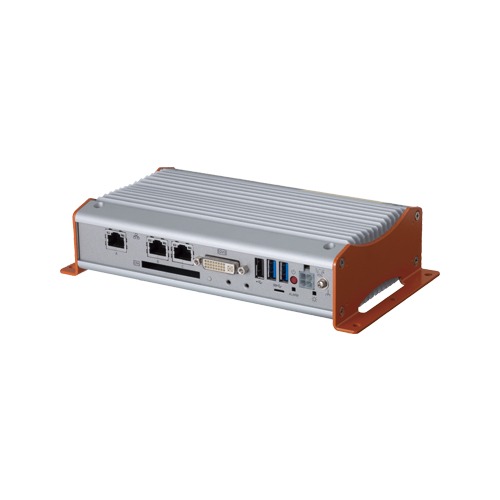

This product is a fanless computer for embedded applications. It features an Intel Atom processor E3845 chipset. Even though it has a slitless case, it supports a wide range of temperatures from 0 to 65°C*1 and can be operated stably under harsh operating conditions.
Thanks to its Quad-Core CPU, it can perform stable, high-speed processing of four applications at the same time (one application is processed by each core). The Quad-Core CPU also greatly reduces power consumption, with power efficiency improved to at least twice that of the previous generation’s architecture.

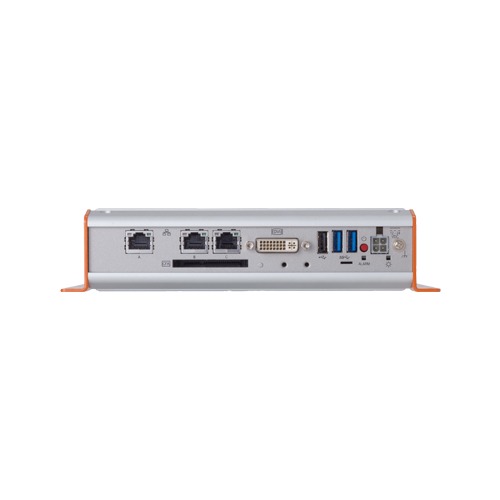

It has extension interfaces such as DVI-I, Display Port, 1000BASE-T, USB 3.0, and serial. It employs a mSATA SSD and CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance.
Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.
| Mounting | Desktop; Wall Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise LTSB 2016 64-bit |
|---|
| CPU Generation (Development code) | Bay Trail |
|---|---|
| Processor | Atom E3845 |
| CPU socket | – |
| Memory | 4GB |
| RAS | Hardware monitor (Temperature / Voltage); Remote power-on |
| GPU | – |
| AI Performance | – |
| Security | NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key; – |
| Video | 1x DisplayPort (v1.1a); 1x DVI-I |
|---|---|
| LAN | 3x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 2x USB3.2 Gen1 (USB3.0); 3x USB2.0; 1x RS-232C/422A/485 |
| Memory card | 1x mSATA; 1x CFast slot |
| Expansion bus | – |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 65°C (32 to 149°F) (when using 1000BASE-T: 0 to 60°C (32 to 140°F) ) w/ 0.7m/s airflow; 0 to 55°C (32 to 131°F) (when using 1000BASE-T: 0 to 50°C (32 to 122°F) ) w/o airflow |
|---|---|
| Storage temperature | -10 to 70°C (14 to 158°F) |
| Standards & Certifications | BSMI; CB; CCC; CE; FCC Class A; KC; UKCA; UL; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| BX-825D-DC760000 | Intel Atom Processor E3845 1.91GHz, without OS model (Memory 4GB ECC, with mSATA SSD 32GB (MLC NAND), without OS) |
|
| BX-825D-DC761824 | Intel Atom Processor E3845 1.91GHz with OS pre-installed model (Memory 4GB ECC, with mSATA SSD 32GB (MLC NAND), Windows 10 IoT Enterprise LTSB 2016 64bit (English, Chinese, Japanese, Korean)+Trellix) |
|
| BX-825D-DC791824 | Intel Atom Processor E3845 1.91GHz with OS pre-installed model (Memory 4GB ECC, with mSATA SSD 64GB (MLC NAND), Windows 10 IoT Enterprise LTSB 2016 64bit (English, Chinese, Japanese, Korean)+Trellix) |
|
| Item | Item Name |
|---|---|
| PWA-65AWD1 | AC Adapter(12VDC) |
| PWA-90AWD1 | AC Adapter(12VDC) |
| Item | Item Name |
|---|---|
| CFS-16GB-A | 1.0-inch SATA CFast Card (SLC) |
| CFS-A | 1.0-inch SATA CFast Card (SLC) |
