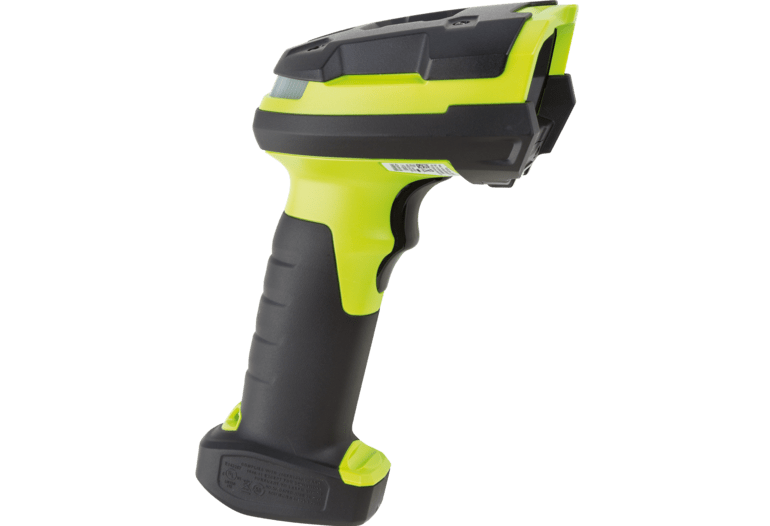

The latest generation of rugged hand-held scanners is the BCS36x8exseries for use in hazardous areas offers outstanding performance for the unparalleled scanning of 1D/2D barcodes, photos, documents and more. The devices are based on the ZEBRA series “DS3608-HP/DS3678-HP Ultra-Rugged Scanners” and are now also available from BARTEC in an explosion-protected version.
ATEX:Ex II 1G Ex ia ma op is IIC T4 GaEx II 1D Ex ia ma op is IIIC T135°C Da IP 64
IECEx:Ex ia ma op is IIC T4 GaEx ia ma op is IIIC T135°C Da IP 6
Operating temperature-20°C to +50°C (-4°F to 122°F)Storage temperature-40°C to +70°C (-40°F to 148°F)(without battery)
| Dimensions | 185 mm x 76 mm x 142 mm (7.3 inch x 3.0 inch x 5.2 inch) |
|---|---|
| Weight | 382 g (0.84 lb) |
| IP Rating (IEC 60529) | IP 65 |
| Barcode capture | Zebra SE4750-HP 1D/2D-High-performance scanner omnidirectional |
