csm_BARTEC_SP9EX2_01_6738c4973fcsm_BARTEC_SP9EX2_01_6738c4973f

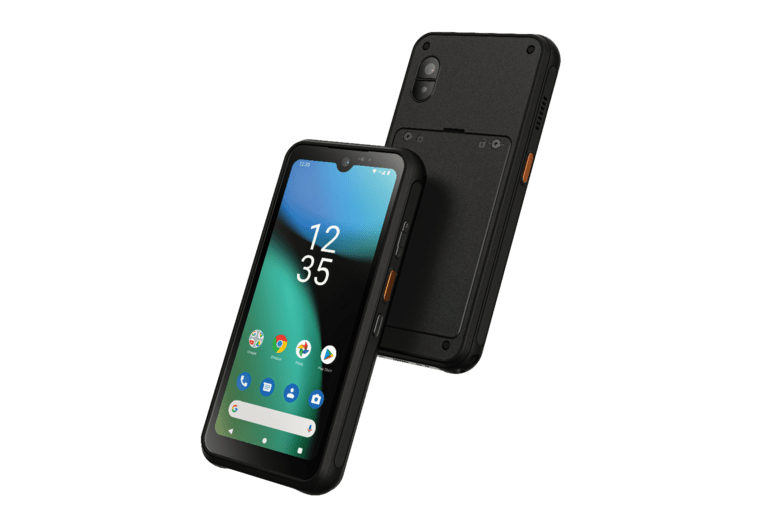

BARTEC SP9EX2Smartphone

5G Smartphone for Zone 2/Division 2
B7-S29P-31110110
  • Compact and lightweight: Designed and optimized for all-day productivity and one hand use.
  • Intrinsically safe design: Over 1,000 dedicated components ensuring ex protection.
  • Fast 5G network connectivity: Qualcomm® QCM6490 processor supporting both public and private 5G network connectivity.
  • Low-light optimized camera: 48MP main camera and 8MP front camera for video calls.
  • Rugged: MIL-STD-810H and IP68 rated for water and dust resistance.
  • Global certifications: ATEX/IECEx Zone 2/22 and NEC Class I, II, III, Division 2.
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Service
    Battery documents
    Accessories/System Overview
    Manuals/Operating Instructions/Guides
    Declarations
    Data Sheets

    Engineered for the utmost safety and performance in hazardous environments, the BARTEC SP9EX2Smartphone is synonymous with reliability. Combining a robust yet refined design, it balances ruggedness with elegance, ensuring functionality without compromise.



    Marking

    ATEX:II 3G Ex ic IIC T4 GcII 3D Ex ic IIIC T135°C Dc IP 64

    IECEx:Ex ic IIC T4 GcEx ic IIIC T135°C Dc IP 64

    NEC/CEC 500/505:Class I, Div 2, Groups A, B, C and DClass II, Div 2, Groups F and GClass III, T4Zone 2, AEx ic IIC T4 GcZone 22, Aex ic IIIB T135° DcEx ic IIC T4 GcEx ic IIIB T135° Dc

    Ambient Temperature

    Operating Temperature-20°C to +55°C (-4 °F to +131 °F)Charging Temperature0°C to +40°C (+32°F to +113°F)

    Certification
    • ATEX Zone 2/22: EN
    • IECEx Zone 2/22: EN
    • NEC/CEC 500/505: EN
    • IMDA (Singapore): EN
    • TDRA (United Arab Emirates): EN
    • Qatar: EN
    • ICASA (South Africa): EN

    Technical Data

    Hardware Specifications

    • Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
    • Memory (RAM): 8 GB
    • Mass Storage: 128 GB
    • Display: 6.1″ AMOLED
    • Resolution: 1080 x 2340 pixels
    • Front Glass: Gorilla® Glass Victus® (generation 8)
    • Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
    • Size (L x W x H): 168.7 mm x 83.4 mm x 17.9 mm (6.6 inch x 3.3 inch x 0.7 inch)
    • Weight (with battery): 350 g (0.77 lb)
    • Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)

    Connectivity and Network

    • SIM: Dual SIM (Nano SIM + eSIM)
    • Wireless Connections: WiFi 6, 5G
    • Radio Frequency Band:
      • 5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
      • LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
      • UMTS (Bands: 1, 2, 4, 5, 8)
      • GSM (Bands: 850, 900, 1800, 1900)
    • WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO, Dual band Simultaneous (up to
      2042 Mbps data rate and 160 MHz bandwidth)
    • Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
    • GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
    • NFC: Read/write NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation

    Camera and Audio

    • Back Camera: 48 MP with Auto Focus
    • Front Camera: 8 MP
    • Voice & Audio: Two microphones, Vibrate alert, Speaker, Bluetooth wireless headset
      support, High-quality speakerphone
    • Notifications: Audible tone, multi-color LEDs, vibration

    Additional Features and Accessories

    • Operating System: AndroidTM 15
    • Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
    • Protection Class (IEC 60529): IP68
    • External I/O: Charging pins, USB-C Port
    • Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity,
      Ambient light
    • Buttons: 1x on/off button, 2x programmable function button (for PTT, Emergency call or
      other functions), 1x volume buttons (+/-)
    • Scope of Delivery: BARTEC SP9EX2 Smartphone, Battery, Battery tool, USB-C
      cable, Quick Start Guide
    • Required (not included): USB-C Charger (e.g., Wall Charger Type
      G7-S0Z0-0014/0015/0016/0017)

    Related Products and Accessories

    Products:

    Accessories:

    Google is a trademark of Google LLC.
    Qualcomm is a registered trademark of Qualcomm Incorporated



    Latest GMS certified SW releases:

    Device model SW version Release date Security patch Android Security Bulletin Security update support
    BARTEC SP9EX2 Smartphone TWG1.241216.289 2024/12/25 Dec 2024 Link Security update support will be available until at least May 2030.

    Security updates are released every 90 days.
    BARTEC SP9EX2 Smartphone TWG1.250305.305 2025/03/07 Mar 2025 Link
    BARTEC SP9EX2 Smartphone AWG1.250612.023 2025/07/23 Jun 2025 Link
    BARTEC SP9EX2 Smartphone AWG1.250822.031 2025/08/27 Sep 2025 Link

    Service

    Brochure – Service Level Agreement

    Battery documents

    Battery – Material safety data sheets (MSDS)
    Battery – Test summery for UN38.3

    Accessories/System Overview

    BARTEC SP9EX2Smartphone – Accessories

    Manuals/Operating Instructions/Guides

    BARTEC SP9EX2Smartphone – Quick Start Guide

    Declarations

    BARTEC SP9EX2Smartphone – EU-Declaration of Conformity
    BARTEC SP9EX2Smartphone – Declaration of Conformity (Australia)

    Data Sheets

    BARTEC SP9EX2Smartphone
    BARTEC SP9EX2Smartphone – Accessories
