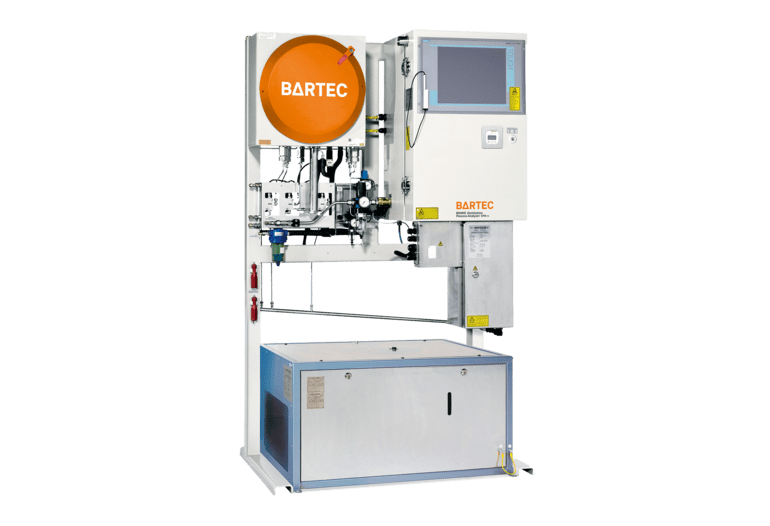

To remain competitive, today’s refiners must employ all optimization and product control techniques available. The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly.Distillation is a physical method of separating the component substances from a liquid mixture by selective vaporization and re-condensation. Distillation is based on differences in volatilities of the components of the liquid mixture. The distillation curve is one of the most common quality parameters of liquid hydrocarbons such like naphtha, gasoline, kerosene, diesel and gas oil.
ATEX: II 2G Ex h IIC T4 Gb XIECEx: Ex IIC T4 GbNEC 500: Class I, Division 2, Group B,C and DNEC 505: Class I, Zone 1, AEx d e ib px IIB resp.IIB+H2 T3 resp. T4CEC Sec. 18: Ex d e ib px IIC T3 resp. T4TR CU: II Gb T4 X
T4
| Technology | batch distillation |
|---|---|
| Method | SAM compliant with: ASTM D86, DIN EN ISO 3405, IP 123 Correlates with: ASTM D4814 (calculation of TV/L); ASTM D4737 (Calculated Cetane Index) RAM correlates with: ASTM D86, DIN EN ISO 3405, IP 123 |
| Sample at inlet | filtered 50 μm, bubble-free (≤ 37 cSt at inlet temperature) approx. 10 to 40 l/h (≥ 10 cSt: max. 15 l/h) 1.5 to 2 bar (21.8 to 29 psi) depends on application, max. 55 °C (131 °F) |
| Sample at outlet | atmospheric pressure |
| Electrical data | max. 8 (4 to 20 mA; 1000 Ω) active isolated on request 4 to 20 mA; 160 Ω 24 V DC; max. 0.5 A high: 15 to 28 V DC low: 0 to 4 V DC 24 V DC; max. 0.8 A |
| Communication | MODBUS/RTU via RS485 or RS422 or FOC is MODBUS/TCP via FOC is via Ethernet (VDSL or FOC is) temperature at specific distillation batch Alarm, Ready/Valid Stream Selection, Validation Request, Reset |
| Ambient conditions | operation 5 to 40 °C (41 to 104 °F) storage -20 to 60 °C (0 to 140 °F) operation 5 to 80 % relative humidity, non-corrosive; storage 5 to 80 % relative humidity, non-corrosive IP 54 (comparable with NEMA 13) |
| HMI | touch display 19″ remote access on request cyber security operating system Windows10 enterprise LTSB Bartec Benke control software PACS |
| Process connections | tube fittings: typically Swagelok 6mm/12mm/18mm; others on request sample inlet up to 2 sample streams and 1 validation stream sample outlet vent line (if required) coolant (if required) |
| Weight and dimensions | approx. 250 kg (W x H x D) approx. 1140 x 1900 x 710 mm free space right: 150 mm/left: 100 mm |
