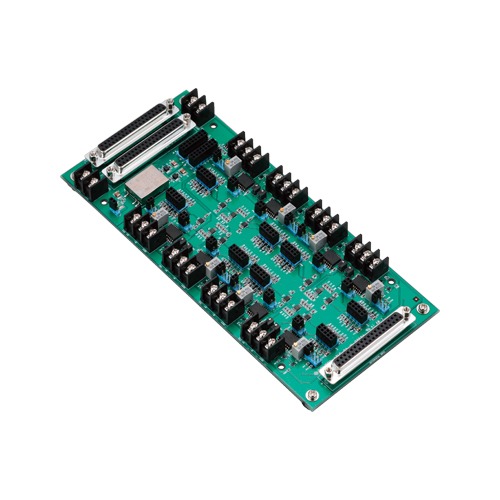

ATLF-8A

  • Wide Bandwidth Gain Amplifier Function is installed.
  • The low-pass filter of each channel is installed.
  • The temperature sensor that can be used for Hiyasetten amends of the thermo-couple is installed.
  • Easy connection to external signal with M3 screw type terminal blocks.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: ATLF-8A Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is accessories for function expansion that amplification / filters an outside signal to input by being connected to an interface card for A/D conversion.

    • Wide Bandwidth Gain Amplifier Function is installed.
      • This product has equipped eight differential gain amplifiers. These amplifiers have a wide bandwidth, from DC – 100kHz, when the input gain is 1. These amplifiers can achieve up to 500 times signal gain.
    • The low-pass filter of each channel is installed.
      • For each input channel, an onboard 4th order lower Butterworth filter can be applied. By changing jumpers, cutoff frequency of the filter can be selected: either a 20Hz cutoff frequency or a 10kHz one. A 20Hz cutoff frequency is useful when the commercial power noise is a main problem of the input signal; a 10kHz cutoff frequency is normally used for an Anti-Aliasing Filter application.
    • The temperature sensor that can be used for Hiyasetten amends of the thermo-couple is installed.
      • This product has equipped a semiconductor temperature sensor. User can use this sensor to get the board temperature. This temperature signal can be used to compensate thermocouple output by software when a thermocouple signal is applied.
    • Easy connection to external signal with M3 screw type terminal blocks.
      • There are eight M3 screw type terminal blocks for analog input signal. It is also equipped a M3 screw type terminal block for analog output signal of analog G/E-series boards. It is very easy for external connection with the ATLF-8A terminal board. In addition, a D type connector which is same as differential input connector of analog G/E-series boards.

    Specifications

    Specifications
    Expansion Accessory Module
    Function –
    Connector (module)
    Connector (external)

    Ordering Informations

    Ordering Information
    Model Description Certification
    ATLF-8A Gain amplifier function extension accessories

      –

      Options
      Cable
      Item Item Name
      PCB37P 37pin D-type(M) at Each End, Flat Cable
      PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
      Other Accessories
      Item Item Name
      DIN-ADP1 DIN-rail adapter for Termination Panels
