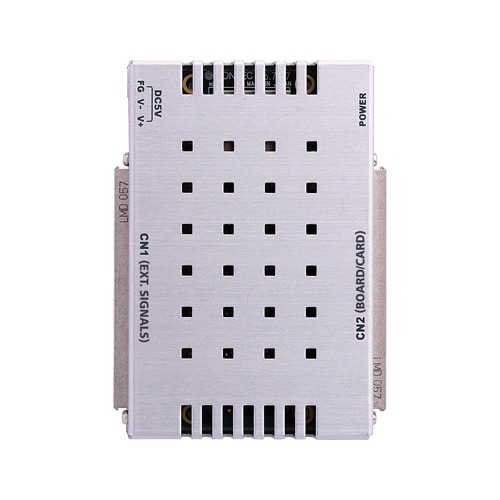

ATBA-8F_img1ATBA-8F_img1

ATBA-8F

  • Buffered by high speed high accuracy amplifiers
  • Crosstalk Prevention
  • Compact designing
  • Aluminum Dustproof Cover-Box

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: ATBA-8F Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is the Extension box which connects with the analog input card of our company, and extends a buffer amplifier function. By using buffer amplifier, it can be cancelable to the cross talk phenomenon generated when measuring the source of a signal that response speed is slowly. Moreover, when the distance from the source of a signal to an analog input card is long, since the influence of cable length can be suppressed, the stable signal measurement is possible.

    • Buffered by high speed high accuracy amplifiers
      • Buffer amplifier which used the high-speed and high-precise operational amplifier: It is possible to input an incoming signal into an analog card correctly by adoption of a high-speed highly precise operational amplifier. Since the circuit of high input impedance is adopted as the input stage, influence of the output impedance of a signal source given to measurement can be made small.
    • Crosstalk Prevention
      • It is possible to prevent a cross talk phenomenon: It is possible to prevent the cross talk phenomenon generated when a signal source of slowly response speed is measured on an analog input card. Moreover, the measurement error of an analog input card can be lessened.
    • Compact designing
      • Compact design which does not become obstructive even if it puts on a desk: Since a connecting cable is separable with a connector and body is a compact design, it is convenient to carry.
    • Aluminum Dustproof Cover-Box
      • Lightweight design which used the aluminum case: It is the lightweight design which used the aluminum case for mobile.

    Specifications

    Specifications
    Expansion Accessory Module
    Function Buffer amplifier
    Connector (module)
    Connector (external)

    Ordering Informations

    Ordering Information
    Model Description Certification
    ATBA-8F Buffer Amplifier Function Extension Box for analog input card
    • CE marking
    Options
    Cable
    Item Item Name
    ADC-68M/96F Shield Cable for Analog I/O Card for CardBus
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Power Supply / AC Adapter
    Item Item Name
    POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
