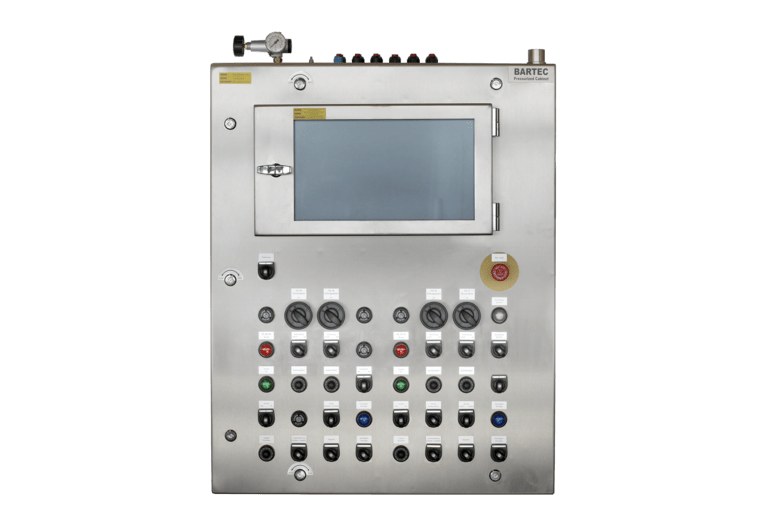

The need for complex automation functions for processes in the chemical, pharmaceutical, oil and gas sectors is constantly increasing.Flexible, reliable and low-maintenance solutions are required for measurement, control, regulation and visualisation, especially in potentially explosive atmospheres.
APC ATEX:Ex II 2G Ex pxb/pyb * IIC T5 – T3 GbEx II 2D Ex pxb/pyb * IIIC T95 °C – T130 °C DbAPC IECEx:Ex pxb/pyb * IIC T5 – T3 GbEx pxb/pyb * IIIC T95 °C – T130 °C DbSPC ATEX:Ex II 3G Ex pzc * IIC T5 – T3 GcEx II 3D Ex pzc * IIIC T95 °C – T130 °C DcSPC IECEx:Ex pzc * IIC T5 – T3 GcEx pzc * IIIC T95 °C – T130 °C Dc
Operating temperature-55 °C to +70 °C @ T4(-67 °F to 158 °F @ T4)depends on applicationStorage temperature-20 °C to +60 °C(-4 °F to 140 °F)
| Protection class | Up to IP 66 acc. EN(IEC 60529 (Applikationsabhängig) ≥ IP 4x acc. EN/IEC 60079-0 |
|---|---|
| Dimensions | Protected volume: max. 17300 dm³ |
| Material | Stainless steel, coated sheet steel Die-cast aluminium, plastic (separately certified) |
| Pressure | Pressure range: 0 to 25 mbar Purge gas pre compression: 1 bis 25 bar Operating pressure: 2 bis 4 mbar Purge pressure: 1 bis 20 mbar |
| Purging time | 0 to 120 Minutes |
| Rated voltage | max. 10 kV |
| Rated current | max. 10 kA |
