AI-1608VIN-USB

  • 8 channels of analog input (voltage input) with high accuracy, and 4 channels of digital input and output respectively are contained
  • Buffer memory available in FIFO format
  • Sampling can be driven by a clock or by various triggers
  • Isolated from the bus by a digital isolato
  • Compatible to USB2.0/USB1.1
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AI-1608VIN-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

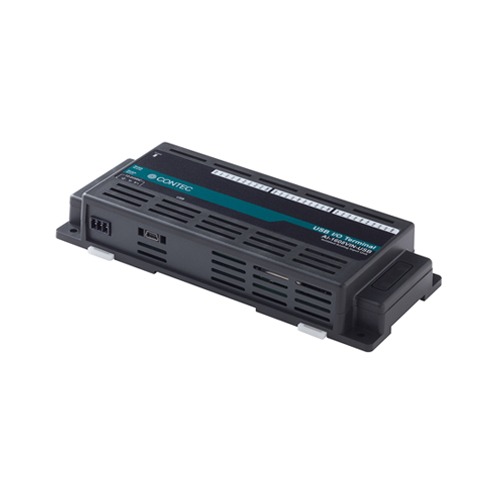

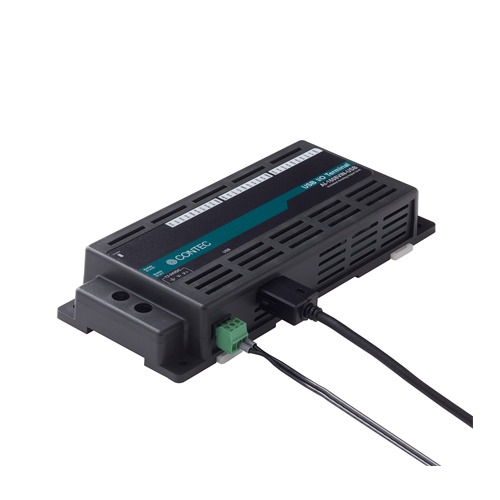

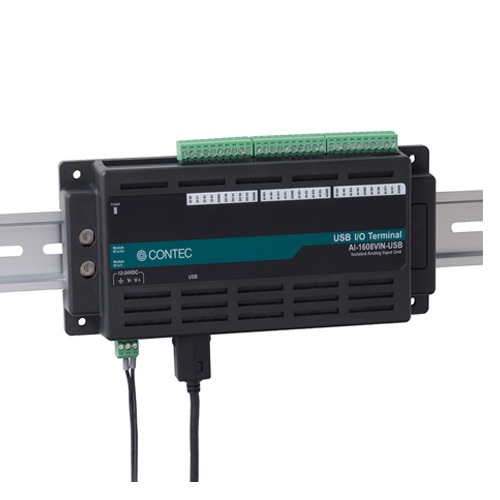

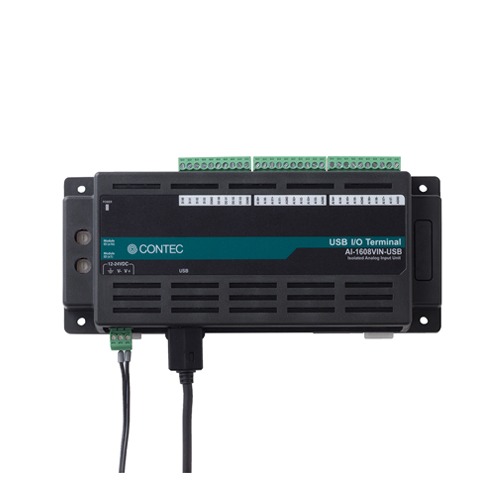

    This product is an analog input unit supporting USB2.0 to provide the input function of analog signal from USB port on the computer.Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail. Windows/Linux device driver is supported with this product. For AI-1608VIN-USB, 8 channels of 16-bit analog input, and digital input and output (4 channels respectively) are equipped, and these circuits are isolated from the computer. As the analog input supports differential input, accurate measurement can be performed even when potential differences with the signal source occur. The input range supports ±10V voltage input bipolar.

    • 8 channels of analog input (voltage input) with high accuracy, and 4 channels of digital input and output respectively are contained
      • Analog input (10μsec/ch, 16bit, 8ch), and digital input and output (Input: TTL level 4 channels, Output: Open-collector 4 channels) are equipped. The analog input supports differential input and the ±10V voltage input bipolar.
    • Buffer memory available in FIFO format
      • This product contains buffer memory (8K data) which can be used in FIFO format. You can perform analog input in the background, independent of software and the current status of the PC.
    • Sampling can be driven by a clock or by various triggers
      • Sampling can be started and stopped by software and external (timing of control signals input from external) triggers. The sampling period can be controlled by the internal clock (high-precision timer included in the product).
    • Isolated from the bus by a digital isolato
      • This product isolates the PC from analog input as well as digital I/O by a digital isolator, which improves the noise performance.
    • Compatible to USB2.0/USB1.1
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at High Speed (480 Mbps)
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB N(Compact)
    Bus Specification USB
    Size N Type
    Used Connector 3x 3.5mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Differential 8-ch
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate 10μsec/ch (max.)
    Input Buffer Memory 8k Word
    Output Channels
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input)
    Response Time (Output)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AI-1608VIN-USB Analog Input USB I/O Unit / 8ch (16bit 100ks/s) / Bus Isolation – N Series
    • FCC compliant
    • VCCI
    • CE marking
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit

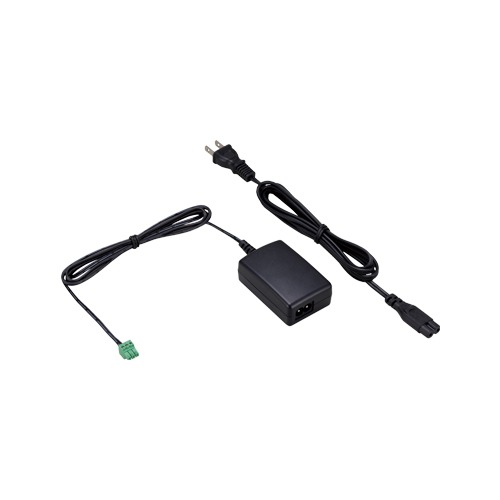

    POA201-10-2 AC adaptor (12V,1A)
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
